SUN2000-(50KTL-JPM0, 50KTL-JPM1, 63KTL-JPM0)
User Manual
Copyright © Huawei Technologies Co., Ltd.
2.4 Working Principles
2.4.1 Conceptual Diagram
The SUN2000 receives inputs from 12 PV strings. Then the inputs are grouped into six MPPT
routes inside the SUN2000 to track the maximum power point of the PV strings. The DC
power is then converted into three-phase AC power through an inverter circuit. Surge
protection is supported on both the DC and AC sides.

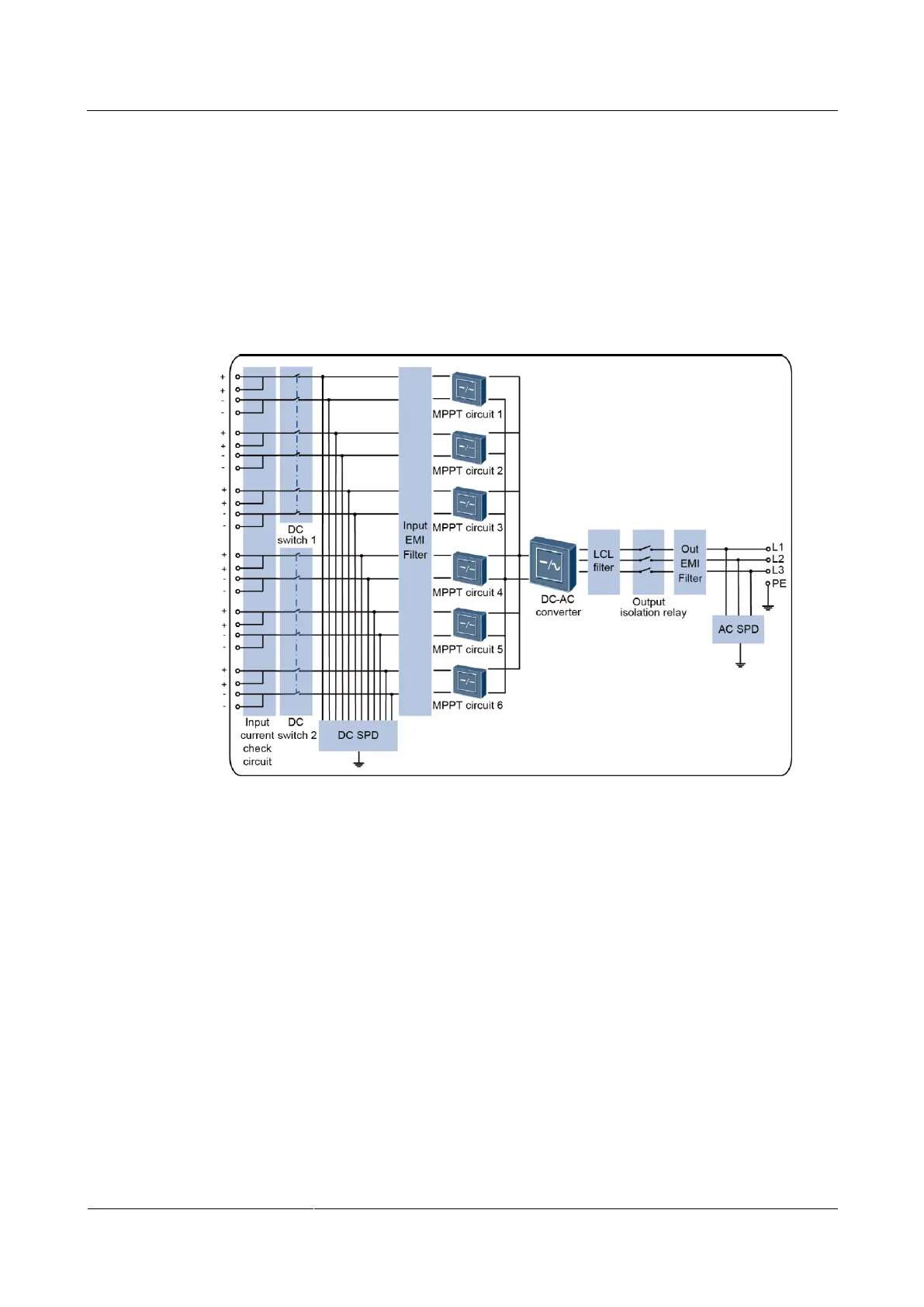

Figure 2-5 SUN2000 conceptual diagram
2.4.2 Working Modes
The SUN2000 can work in Standby, Operating, or Shutdown mode.
