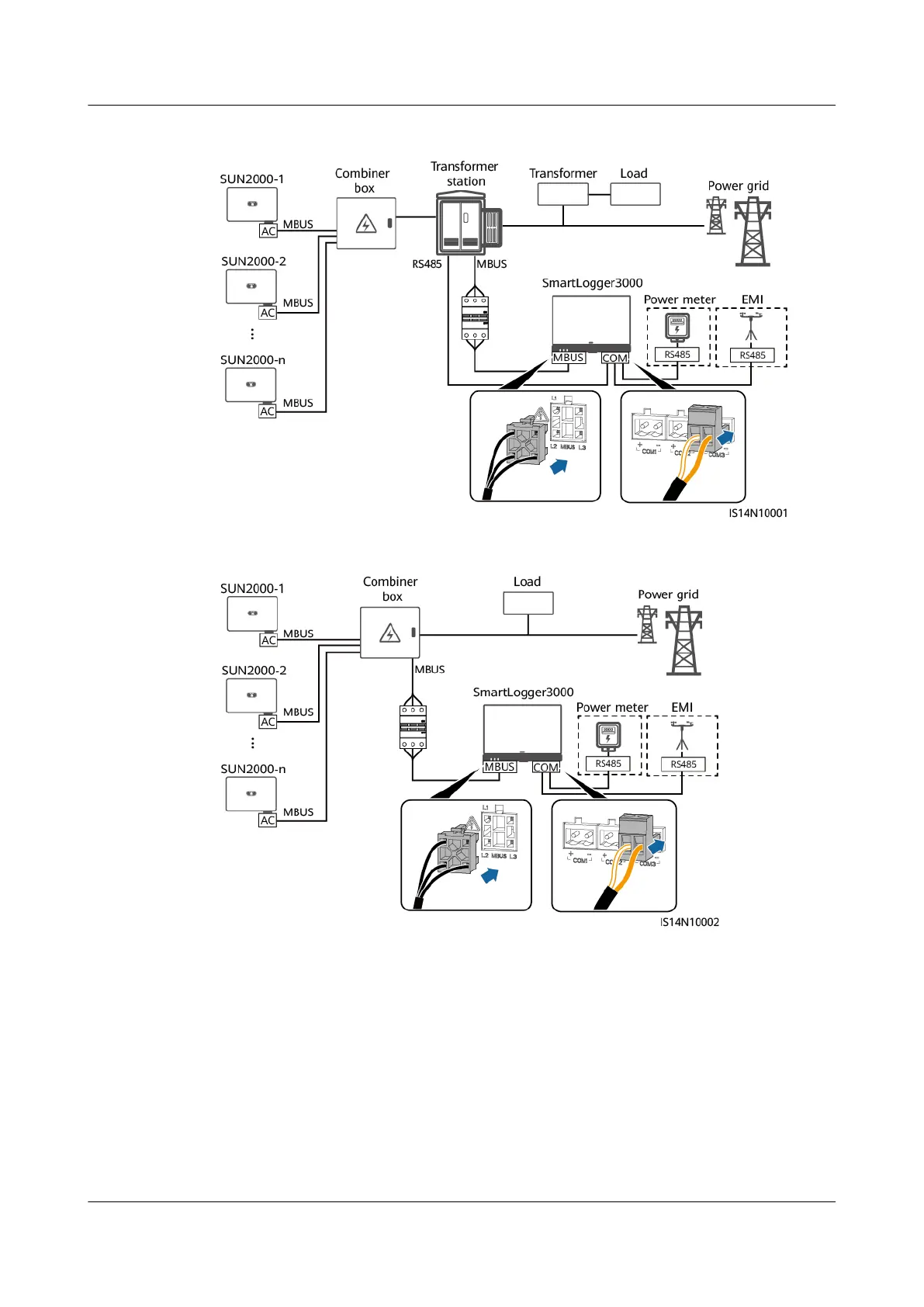

Figure 5-22 MBUS communication (utility-scale scenarios)
Figure 5-23 MBUS communication (commercial and industrial scenarios in China)
5.7.2 (Optional) Connecting the RS485 Communications Cable
to the SUN2000
Procedure
Step 1 Connect the signal cable to the signal cable connector.
SUN2000-(50KTL-ZHM3, 50KTL-M3)
User Manual 5 Electrical Connections
Issue 05 (2023-02-28) Copyright © Huawei Technologies Co., Ltd. 53
