Huawei SUN2000-50KTL-ZHM3 - Optional) Connecting the RS485 Communications Cable to the Power Meter

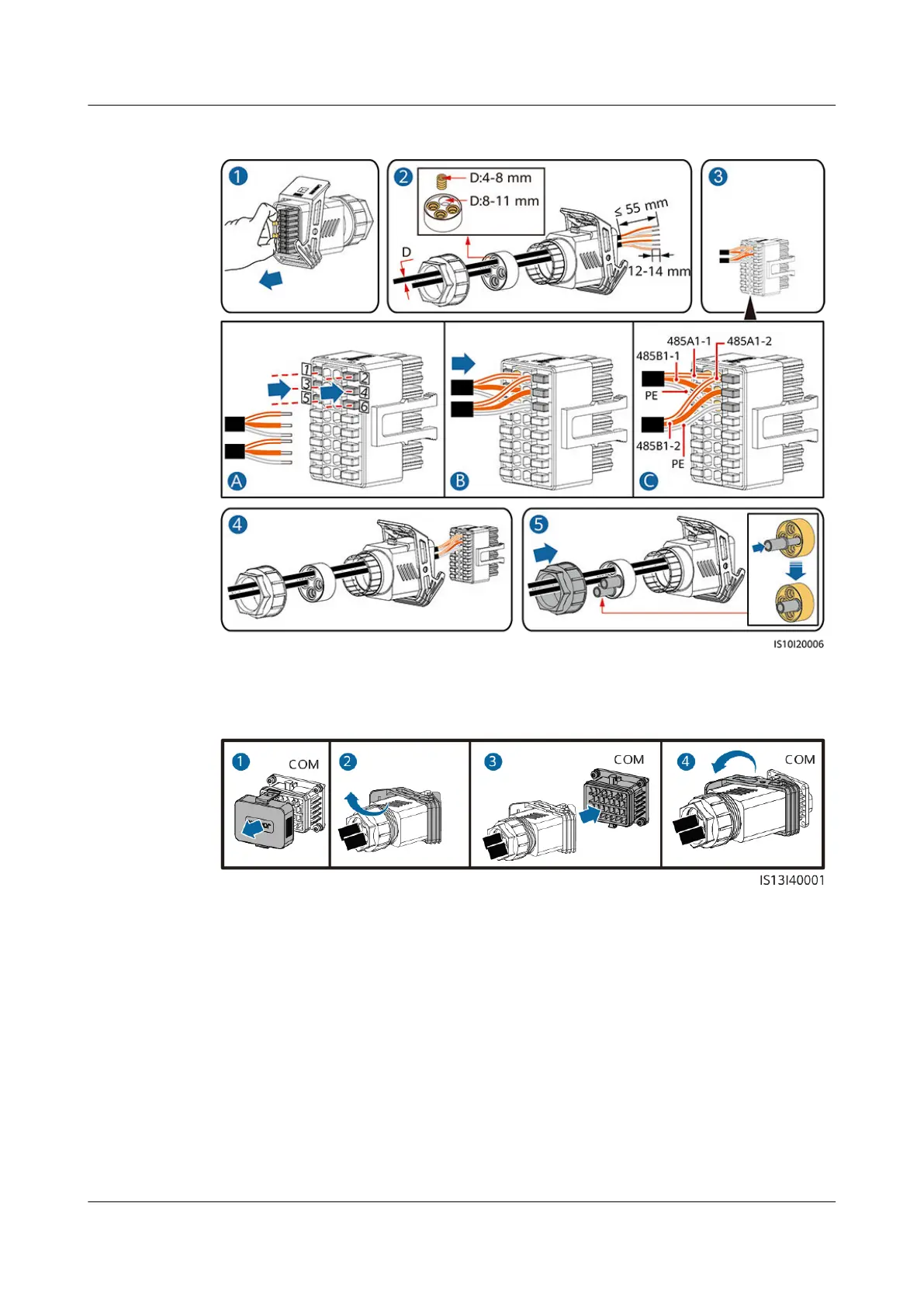

Figure 5-24 Connecting the cable
Step 2 Connect the signal cable connector to the COM port.
Figure 5-25 Securing the signal cable connector
----End
5.7.3 (Optional) Connecting the RS485 Communications Cable
to the Power Meter
Procedure
Step 1 Connect the signal cable to the signal cable connector.
SUN2000-(50KTL-ZHM3, 50KTL-M3)
