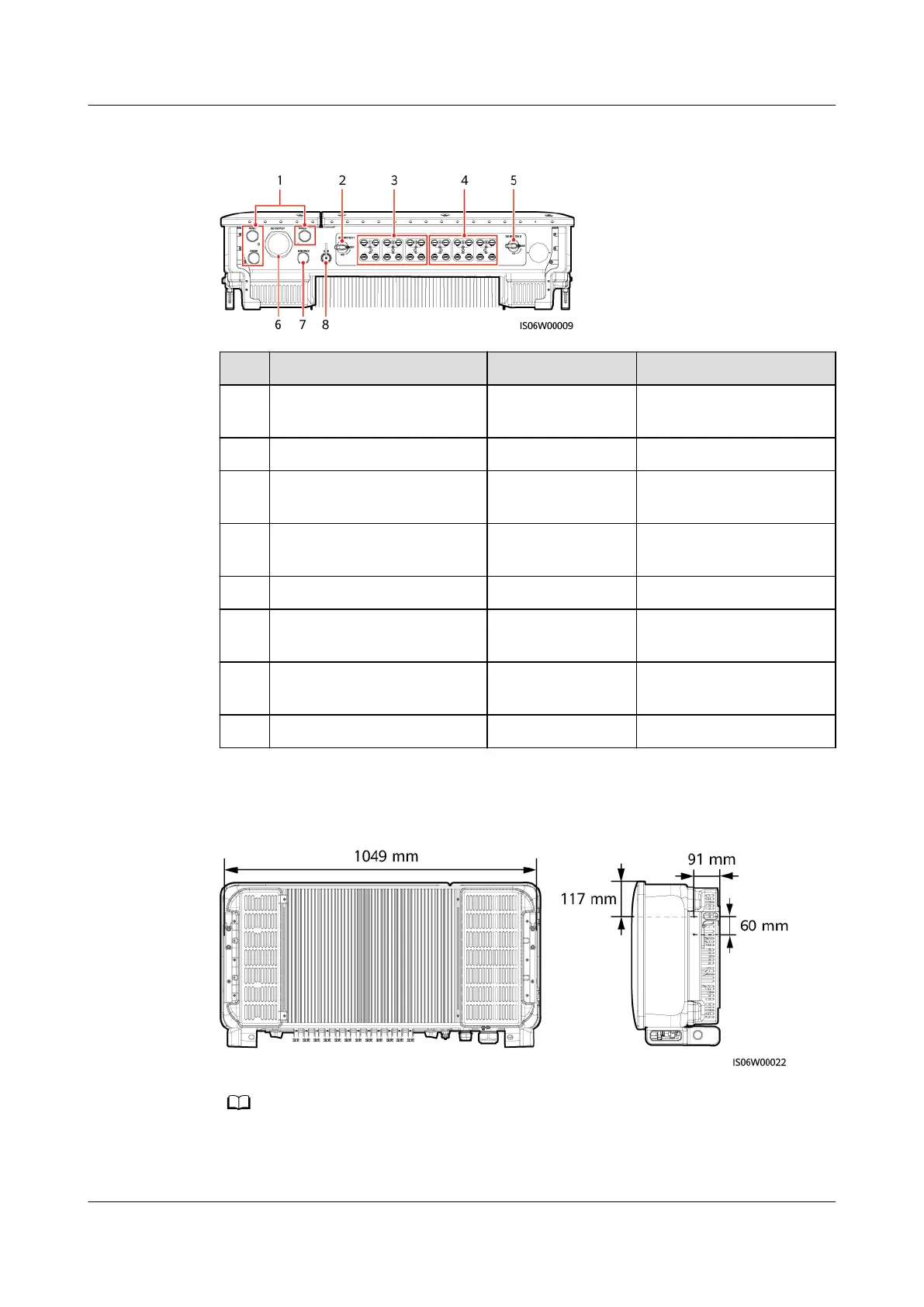

Huawei SUN2000-70KTL-C1 User Manual

Bottom View
No. Component Silk Screen Description
1 Cable gland COM1, COM2,
and COM3
Inner diameter: 14–18
mm
2 DC switch 1 DC SWITCH 1 N/A
3 DC input terminals +/– Controlled by DC
SWITCH 1
4 DC input terminals +/– Controlled by DC
SWITCH 2
5 DC switch 2 DC SWITCH 2 N/A
6 Cable gland AC OUTPUT Inner diameter: 18–44
mm or 24–57mm
7 Cable gland RESERVE Inner diameter: 14–18
mm
8 USB port USB N/A
Holes Reserved at the Side of the Enclosure
NO TE
There are two M6 tapped holes reserved on both sides of the enclosures, which are used for
installing an awning.
SUN2000-(70KTL, 75KTL)-C1
User Manual 2 Overview
Issue 09 (2020-10-12) Copyright © Huawei Technologies Co., Ltd. 11
