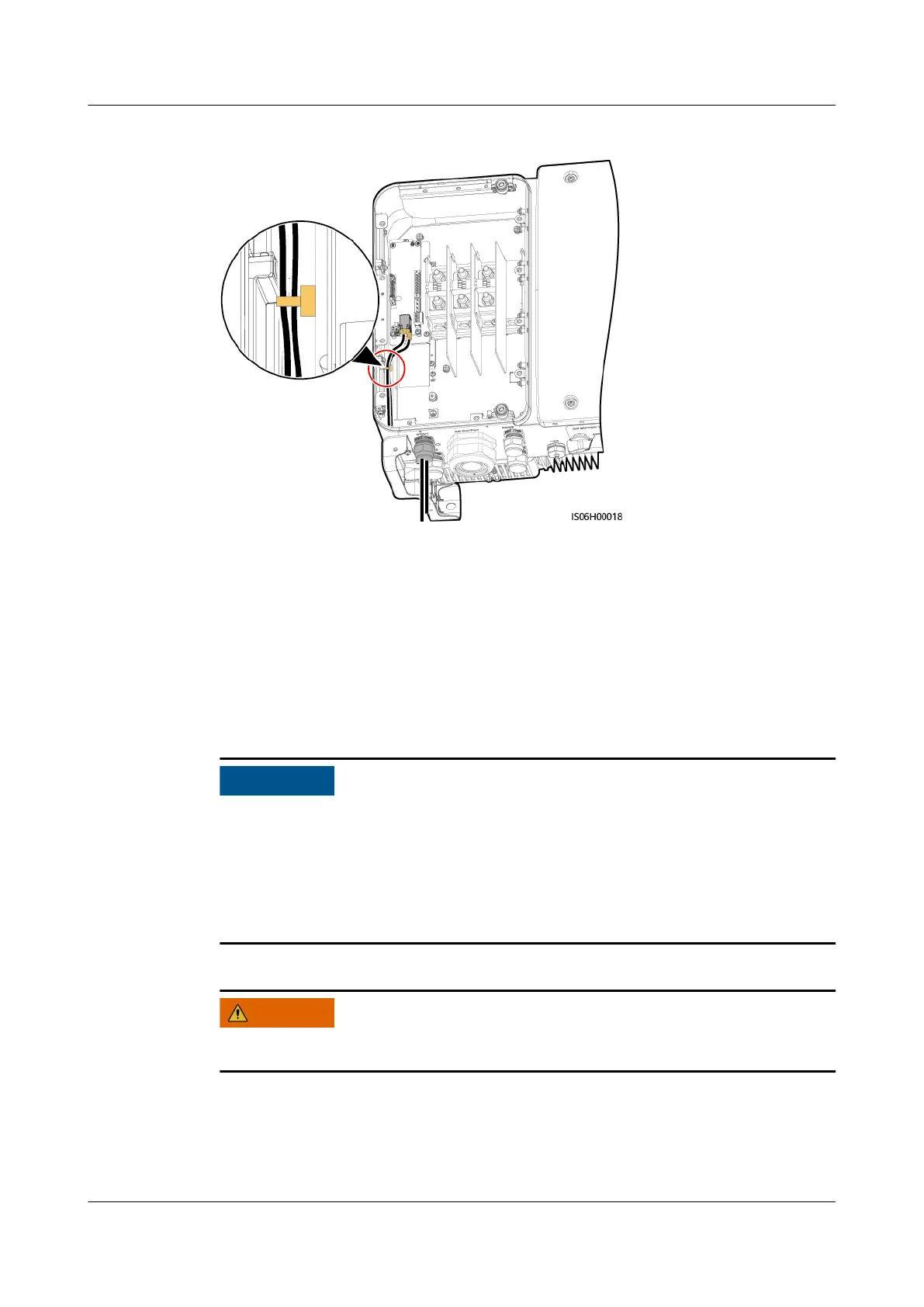

Figure 5-32 Bundling communications cables
Step 5 Tighten the thread-lock sealing nut and seal the waterproof connector.
----End
5.6.3 (Optional) Installing the Solar Tracker Power Cable
Precautions
NO TICE
1. A switch-disconnector-fuse or fuse-switch-disconnector with a voltage of no
less than 500 V, current of 16 A, and protection type of gM needs to be
installed between the SUN2000 and the tracker controller for protection.
2. The cable between the wiring terminal on the power cable and the switch-
disconnector-fuse or fuse-switch-disconnector should be less than or equal to
2.5 meters.
WARNING
Do not place ammable materials around the cable.
Cable Specications
Recommended: dual-layer three-core outdoor copper cable with a conductor
cross-sectional area of 10 mm
2
.
SUN2000-(70KTL, 75KTL)-C1
