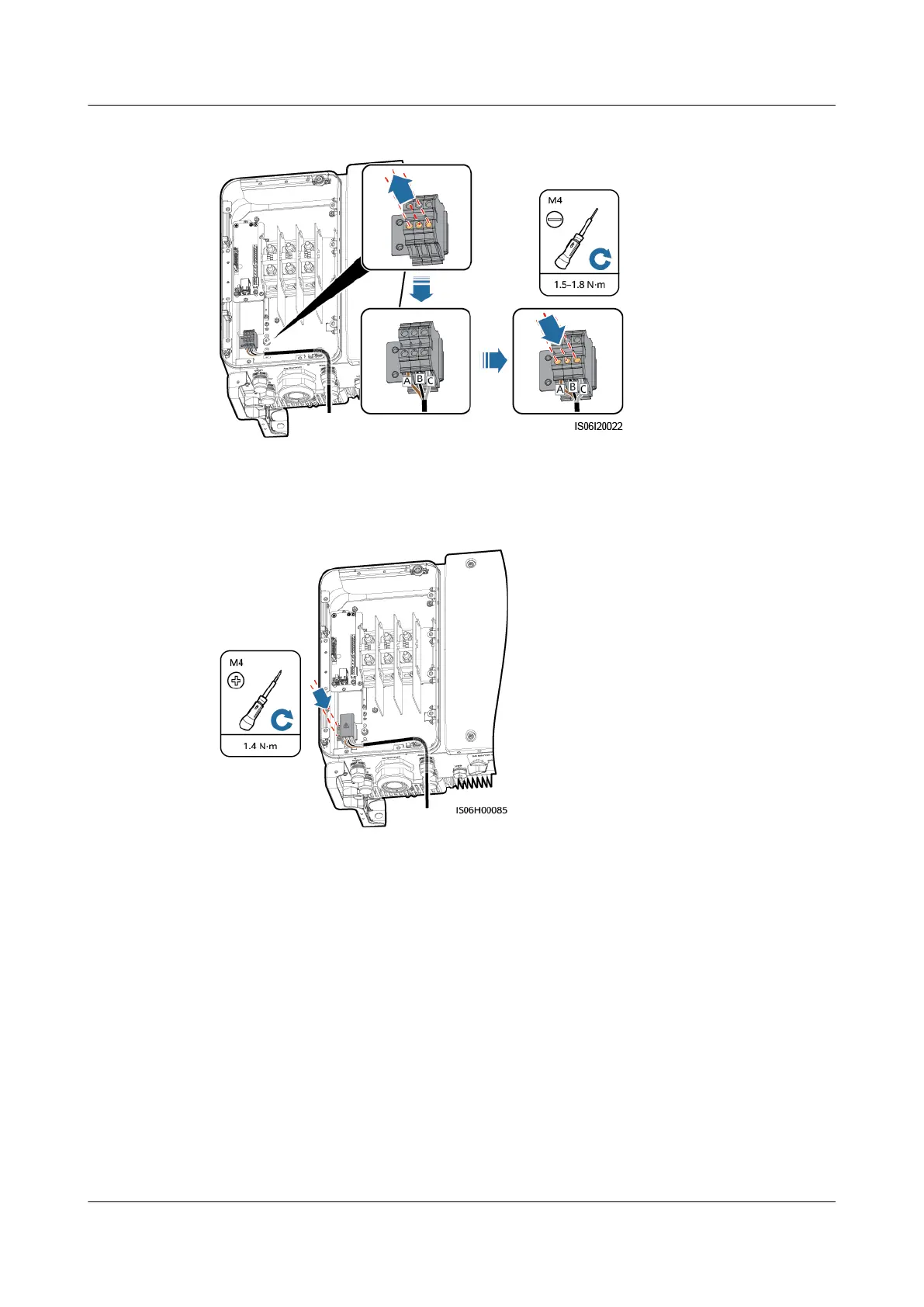

Figure 5-39 Connecting a solar tracker power cable
Step 5 Install the shielding cover on wiring terminals.
Figure 5-40 Installing a shielding cover
Step 6 Tighten the cable gland and seal the waterproof connector.
----End
5.7 Closing the Maintenance Compartment Door
Procedure
Step 1 Install the AC terminal cover.
SUN2000-(70KTL, 75KTL)-C1
User Manual 5 Electrical Connections
Issue 09 (2020-10-12) Copyright © Huawei Technologies Co., Ltd. 64
