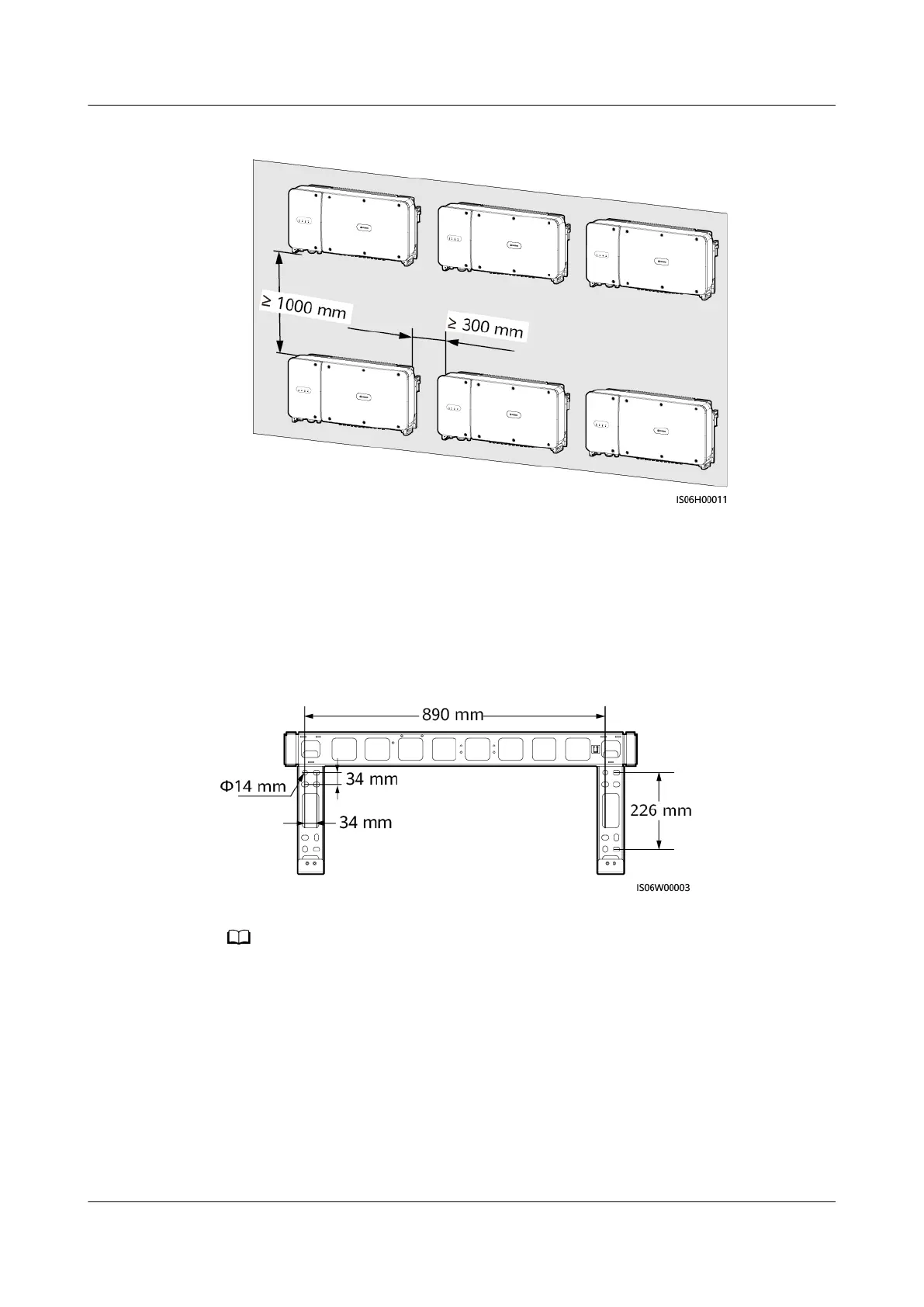

Figure 4-5 Stacked installation mode (not recommended)
4.4 Installing the Mounting Bracket
Installation Precautions
Figure 4-6 shows the SUN2000 mounting bracket dimensions.
Figure 4-6 Mounting bracket dimensions
NO TE
The SUN2000 mounting bracket has four groups of tapped holes, each group containing
four tapped holes. Mark any hole in each group based on site requirements and mark four
holes in total. Two round holes are preferred.
Before installing the mounting bracket, remove the security torx wrench from the
mounting bracket and save it for later use.
SUN2000-(70KTL, 75KTL)-C1
User Manual 4 Installation
Issue 09 (2020-10-12) Copyright © Huawei Technologies Co., Ltd. 25
