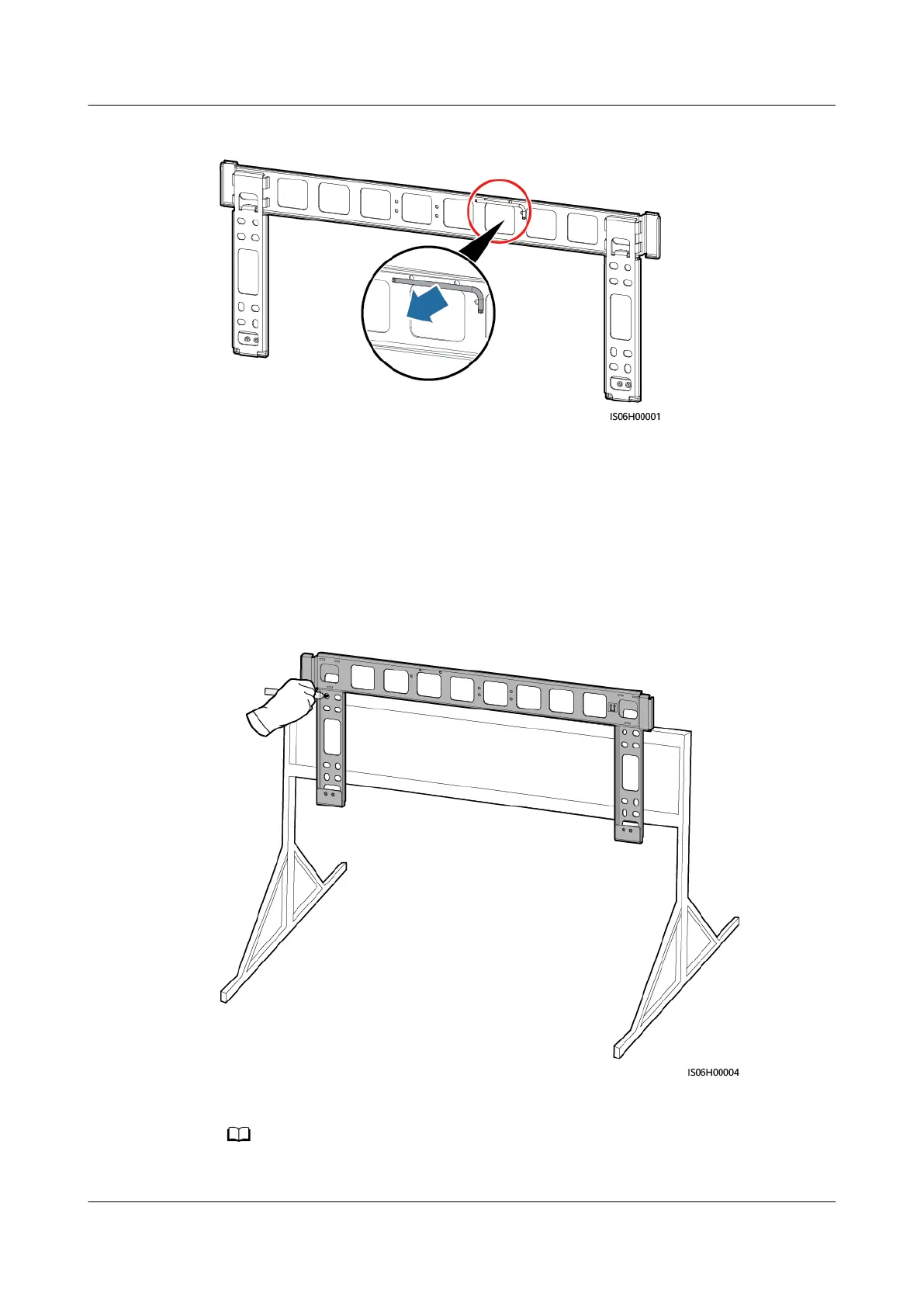

Figure 4-7 Removing a security torx wrench
4.4.1 Support-mounted Installation
Support-mounted Installation
Step 1 Determine the positions for drilling holes using the mounting bracket. Level the
positions of mounting holes using a bubble or digital level, and mark the positions
with a marker.
Figure 4-8 Determining hole positions
Step 2 Drill holes using a hammer drill.
You are advised to apply anti-rust paint on the hole positions for protection.
SUN2000-(70KTL, 75KTL)-C1
User Manual 4 Installation
Issue 09 (2020-10-12) Copyright © Huawei Technologies Co., Ltd. 26
