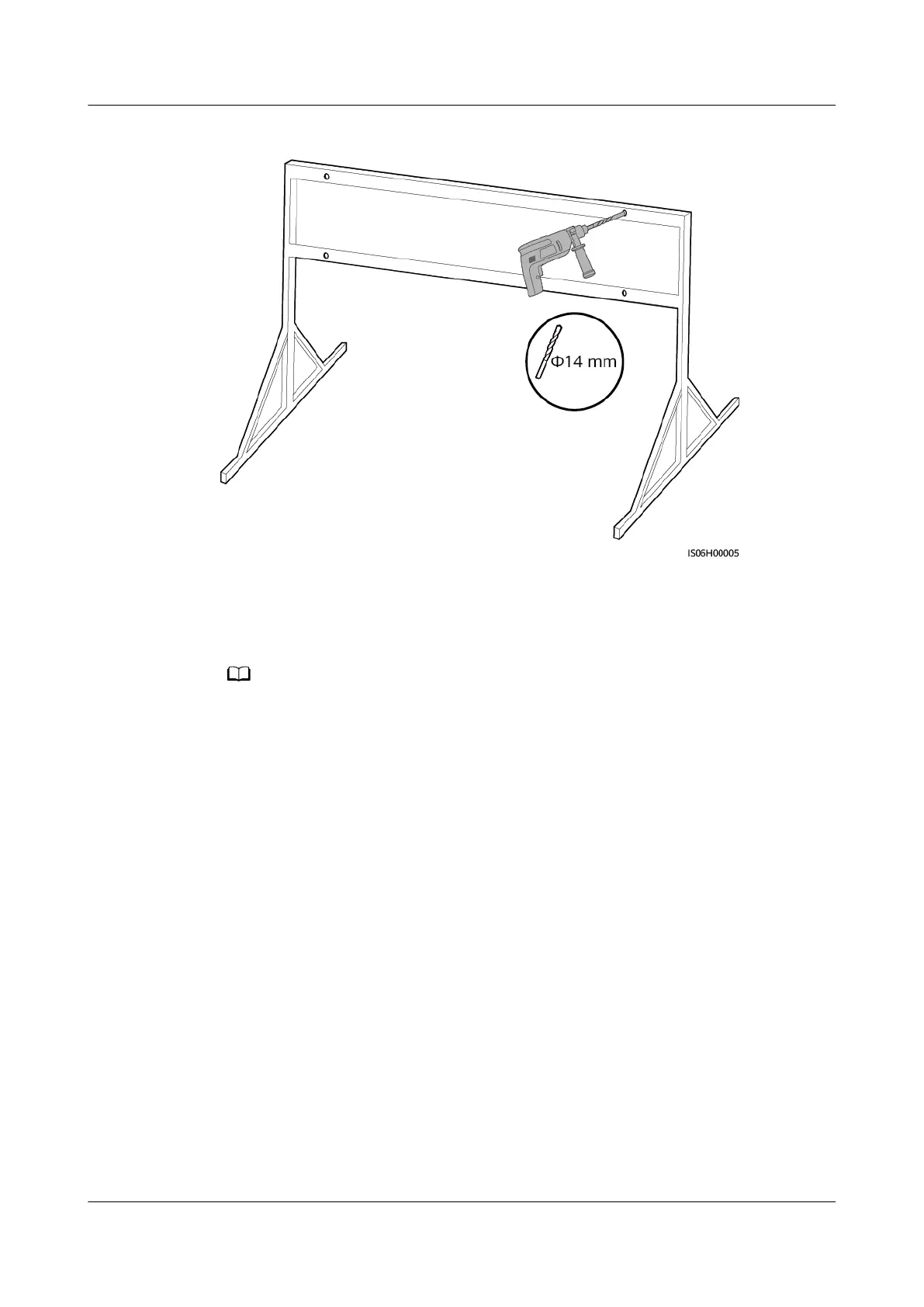

Figure 4-9 Drilling a hole
Step 3 Align the mounting bracket holes with the drilled holes, insert bolt assemblies
(at washers, spring washers, and M12x40 bolts) into the holes through the
mounting bracket, and secure them using the supplied stainless steel nuts and
at
washers.
M12x40 bolt assemblies are provided with the SUN2000. If the bolt length does not meet
the installation requirements, prepare M12 bolt assemblies by yourself and use them
together with the provided M12 nuts.
SUN2000-(70KTL, 75KTL)-C1
User Manual 4 Installation
Issue 09 (2020-10-12) Copyright © Huawei Technologies Co., Ltd. 27
