2.3.2 Product Nameplate

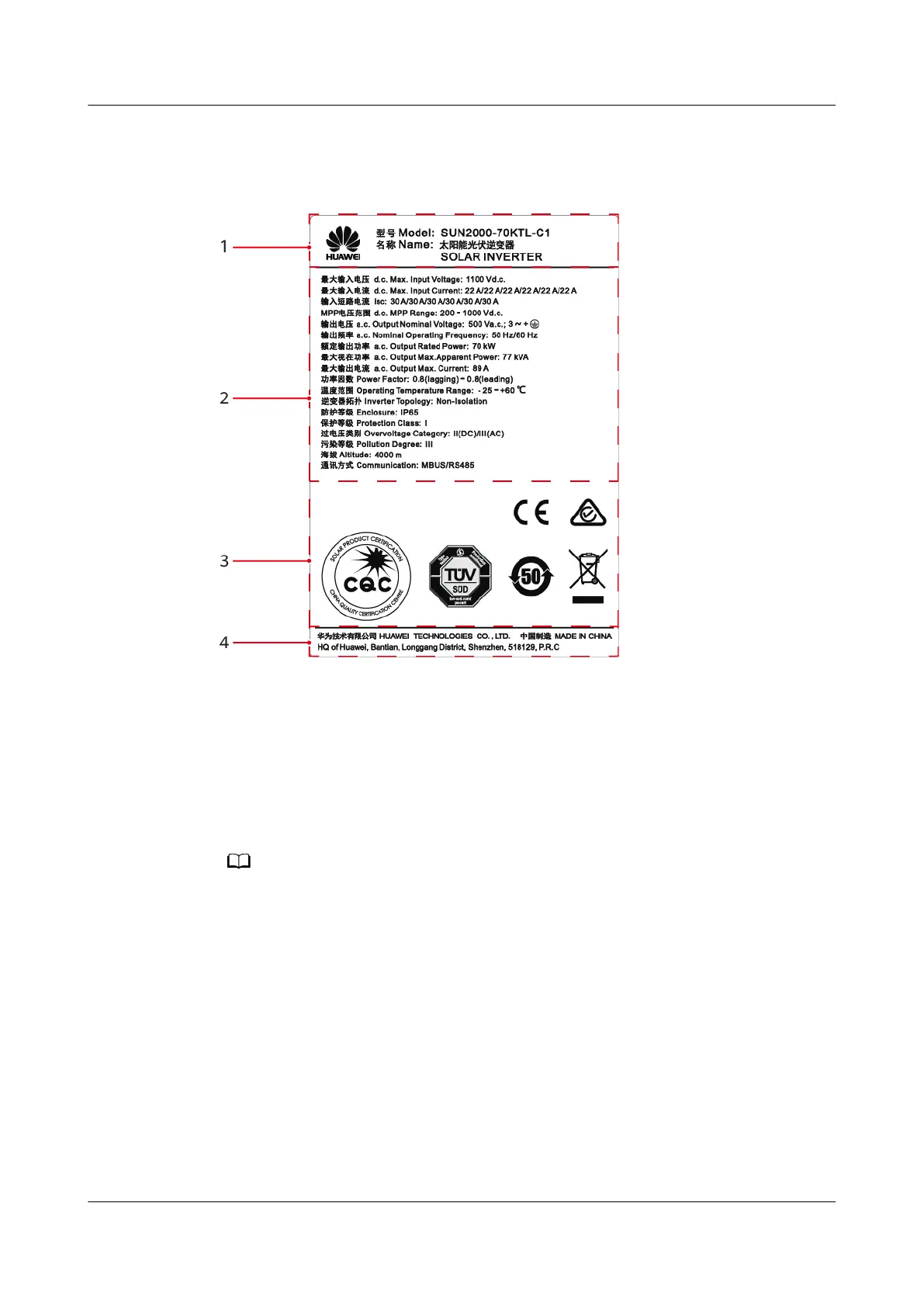

Figure 2-4 Nameplate of the SUN2000-70KTL-C1
(1) Trademark, product name, and
model number
(2) Important technical specications
(3) Compliance symbols (4) Company name and place of
production
NO TE
The nameplate gure is for reference only.
2.4 Working Principles
2.4.1 Conceptual Diagram
The SUN2000 receives inputs from 12 PV strings. Then the inputs are grouped into
six MPPT routes inside the SUN2000 to track the maximum power point of the PV
strings. The DC power is then converted into three-phase AC power through an
inverter circuit. Surge protection is supported on both the DC and AC sides.
SUN2000-(70KTL, 75KTL)-C1
User Manual 2 Overview
Issue 09 (2020-10-12) Copyright © Huawei Technologies Co., Ltd. 14

Huawei SUN2000-70KTL-C1 Specifications

General

Brand	Huawei
Model	SUN2000-70KTL-C1
Category	Inverter
Language	English
