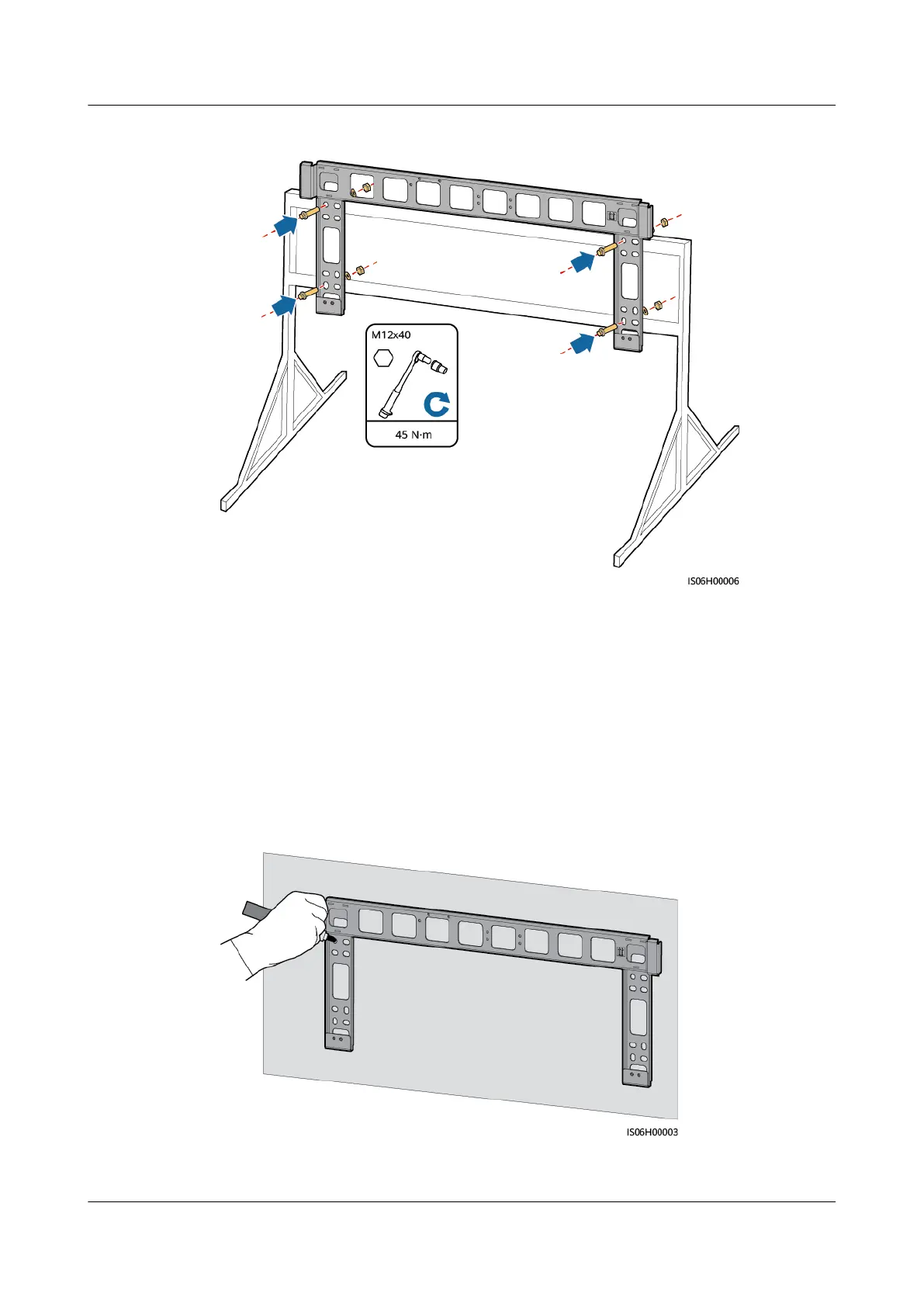

Figure 4-10 Securing a mounting bracket
----End
4.4.2 Wall-mounted Installation
Wall-mounted Installation
Step 1 Determine the positions for drilling holes using the mounting bracket. Level the
positions of mounting holes using a bubble or digital level, and mark the positions
with a marker.
Figure 4-11 Determining hole positions
Step 2 Drill holes using a hammer drill and install expansion bolts.
SUN2000-(70KTL, 75KTL)-C1
User Manual 4 Installation
Issue 09 (2020-10-12) Copyright © Huawei Technologies Co., Ltd. 28
