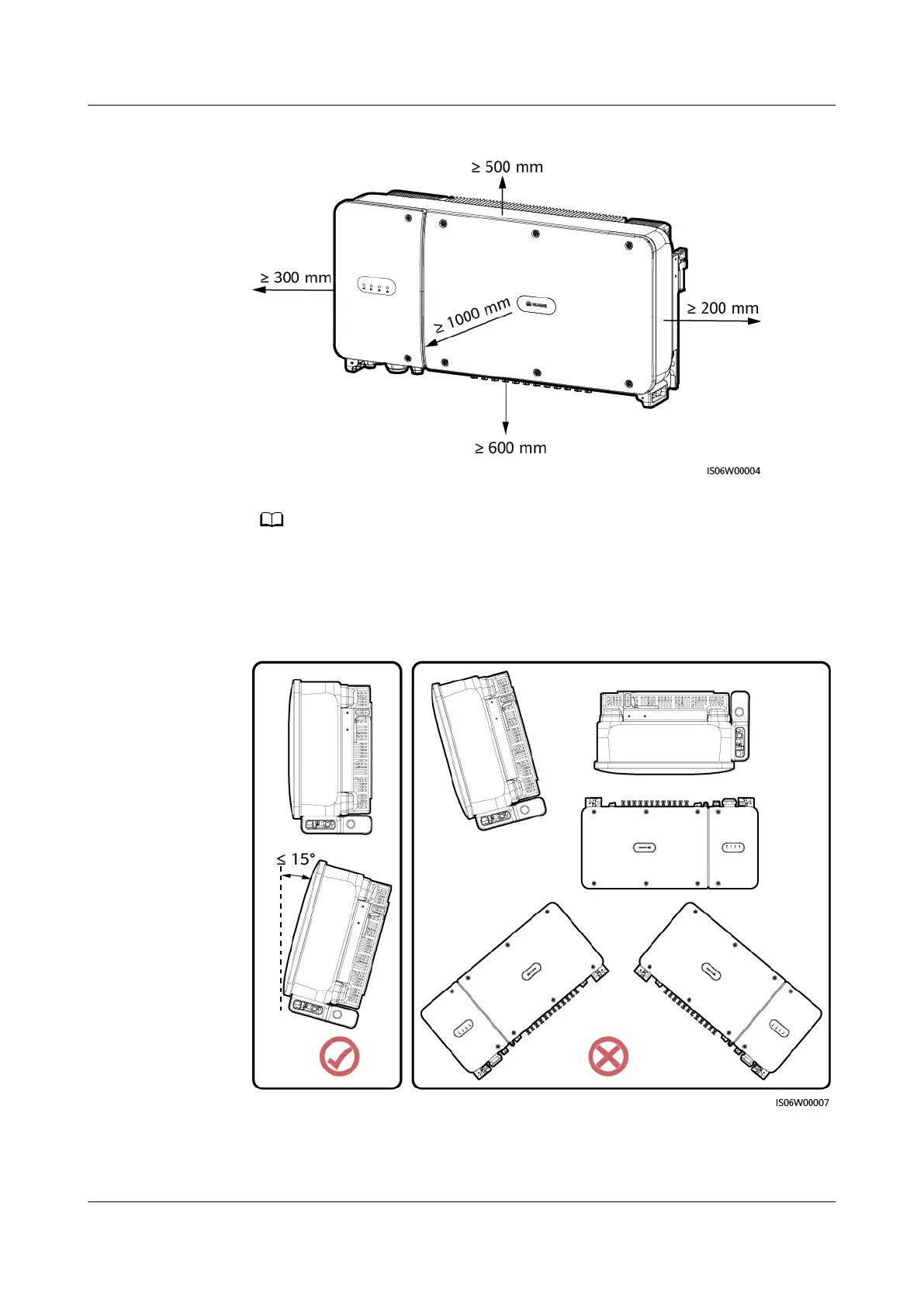

Figure 4-1 Installation space requirements
For ease of installing the SUN2000 on the mounting bracket, connecting cables to the
bottom of the SUN2000, and maintaining the SUN2000 in future, it is recommended
that the bottom clearance be in the range of 600 mm to 730 mm. If you have any
questions about the clearances, consult the local technical support engineers.
Figure 4-2 Installation tilts
● When installing multiple SUN2000s, install them in horizontal mode if
sucient space is available and install them in triangle mode if no sucient
space is available. Stacked installation is not recommended.
SUN2000-(70KTL, 75KTL)-C1
User Manual 4 Installation
Issue 09 (2020-10-12) Copyright © Huawei Technologies Co., Ltd. 23
