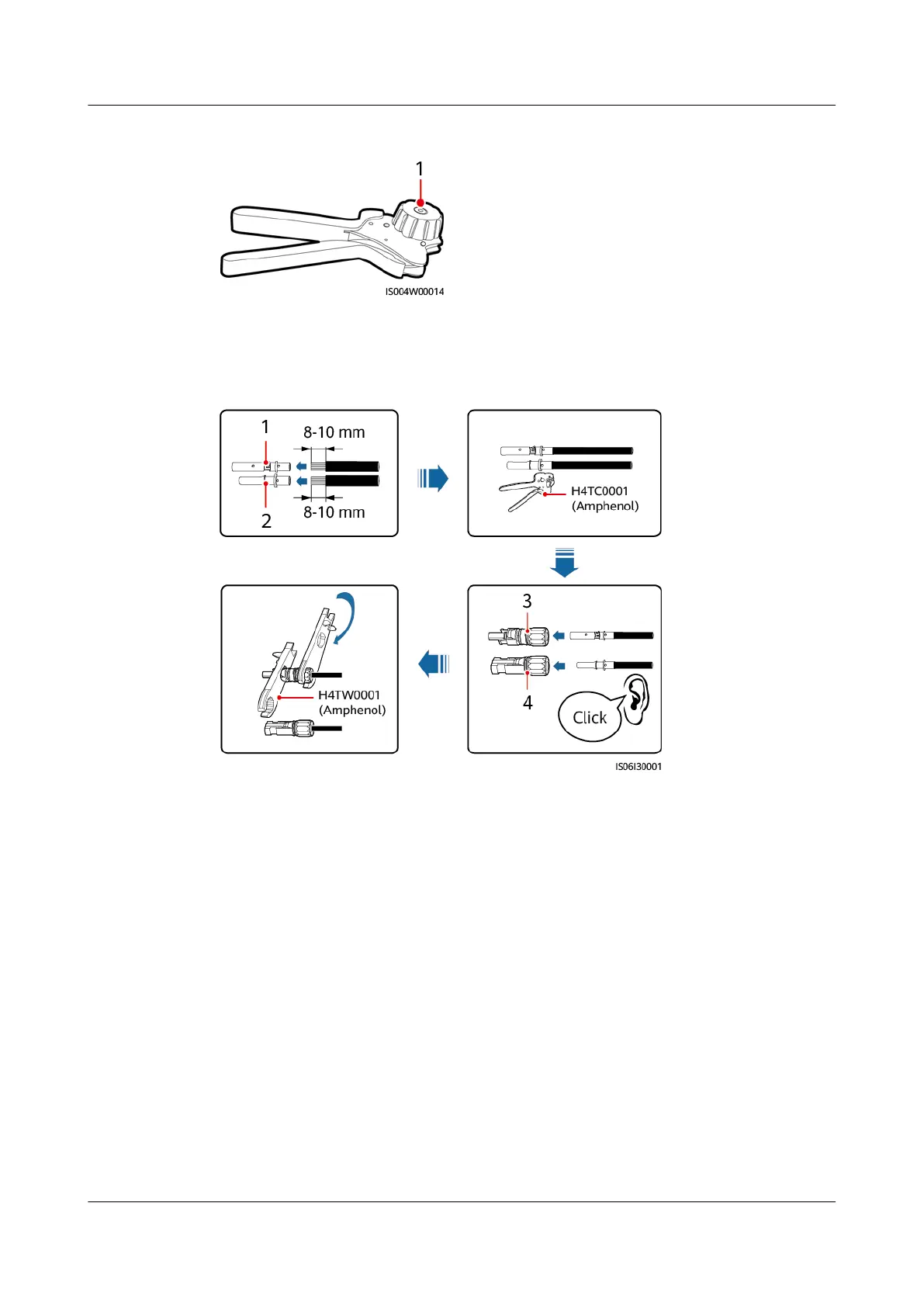

Figure 5-14 Crimping tool
(1) Locator
Figure 5-15 Preparing positive and negative connectors (using metal cold forming
contacts)
(1) Positive metal contact (cold forming)
(2) Negative metal contact (cold forming)
(3) Positive connector (4) Negative connector
SUN2000-(70KTL, 75KTL)-C1
User Manual 5 Electrical Connections
Issue 09 (2020-10-12) Copyright © Huawei Technologies Co., Ltd. 48
