Huawei SUN2000-70KTL-C1 User Manual

Pin Color Function
2 Orange RS485B, dierential signal–
3 White-and-green N/A
4 Blue RS485A, dierential signal+
5 White-and-blue RS485B, dierential signal–
6 Green N/A
7 White-and-brown N/A
8 Brown N/A

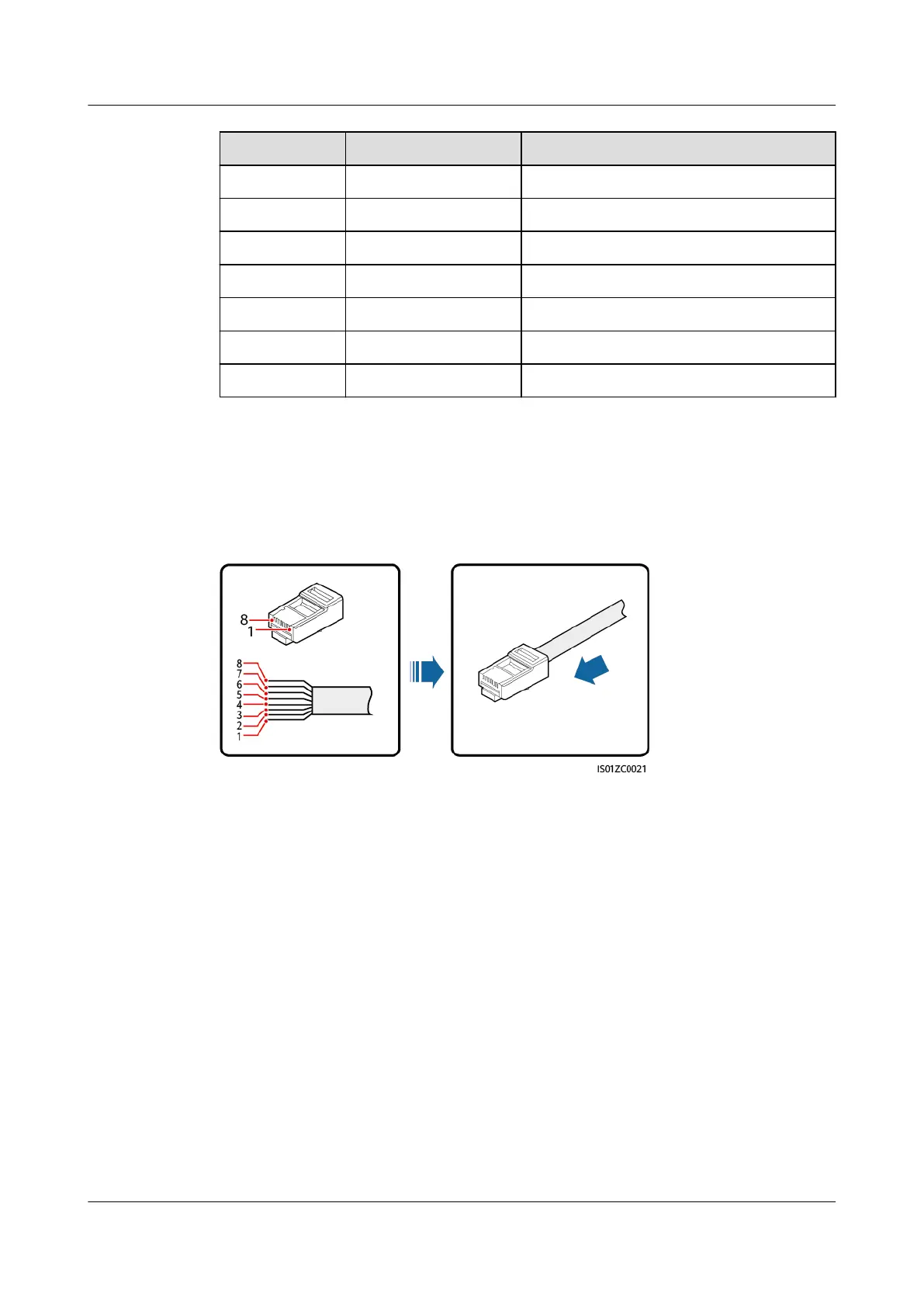

Connecting Cables to the RJ45 Network Port
Step 1 Prepare an RJ45 connector.
Figure 5-29 Preparing an RJ45 connector
(1) White-and-orange
(2) Orange (3) White-and-green (4) Blue
(5) White-and-blue (6) Green (7) White-and-brown (8) Brown
Step 2 Route the communications cable through the cable gland.
SUN2000-(70KTL, 75KTL)-C1
User Manual 5 Electrical Connections
Issue 09 (2020-10-12) Copyright © Huawei Technologies Co., Ltd. 58
