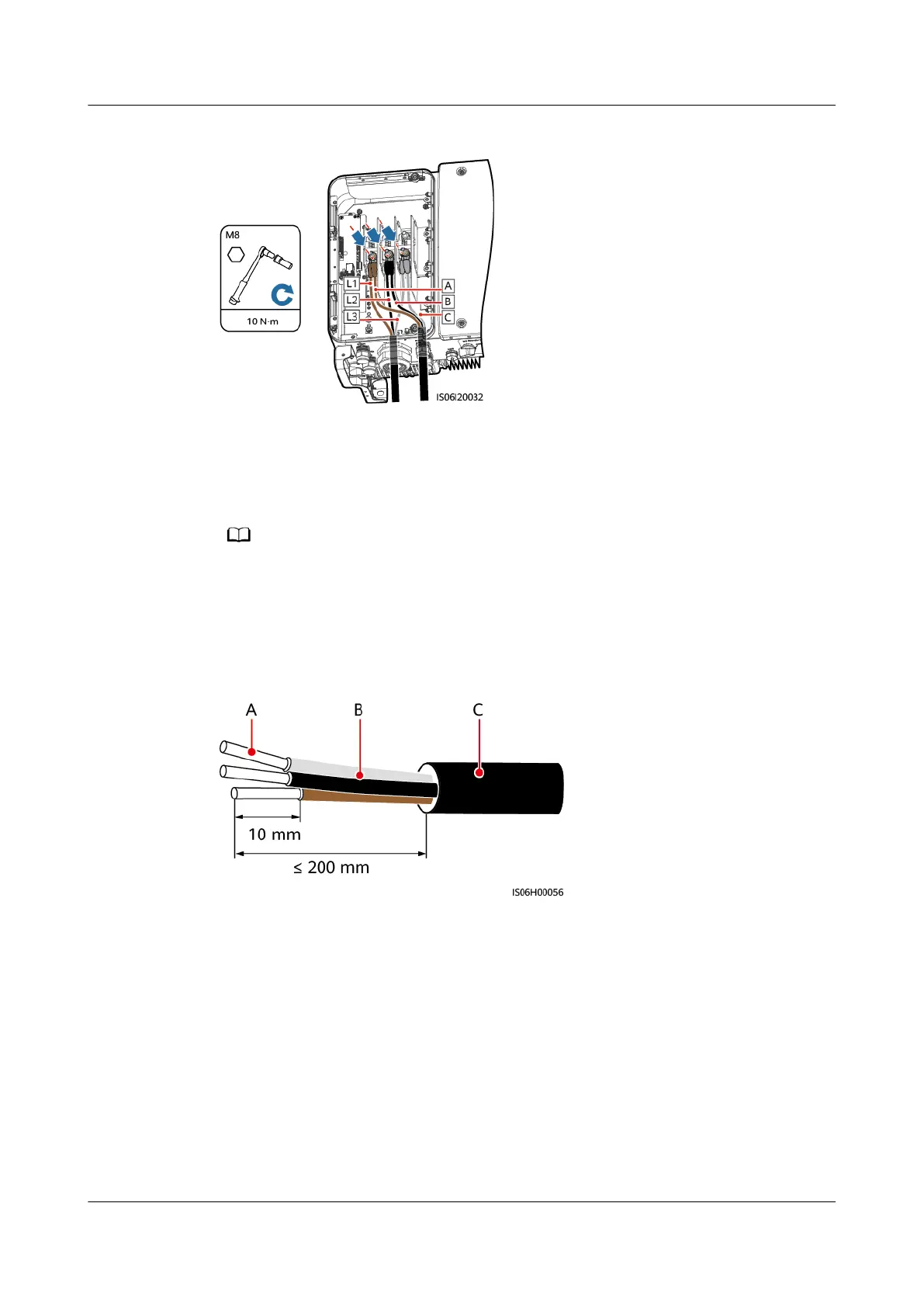

Figure 5-35 Connecting a solar tracker power cable
----End
Connection Through the Wiring Terminal
NO TE
The solar tracker power cable can be installed on some models only.
Step 1 Remove an appropriate length of the jacket and insulation layer from the tracking
power cable using a wire stripper. (Ensure that the jacket is in the maintenance
compartment.)
Figure 5-36 Stripping a cable
(A) Core wire
(B) Insulation layer (C) Jacket
Step 2 Remove the shielding cover from wiring terminals.
SUN2000-(70KTL, 75KTL)-C1
User Manual 5 Electrical Connections
Issue 09 (2020-10-12) Copyright © Huawei Technologies Co., Ltd. 62
