Avoid drilling holes into the water pipes or power cables buried in the wall.
● M6x60 expansion bolts are delivered with the inverter. If the length and amount of the
bolts do not meet installation requirements, prepare M6 stainless steel expansion bolts
by yourself.
● The expansion bolts delivered with the inverter are mainly used for solid brick-concrete
walls. For other types of walls, prepare bolts by yourself and ensure that the wall meets
the load bearing requirements of the inverter.

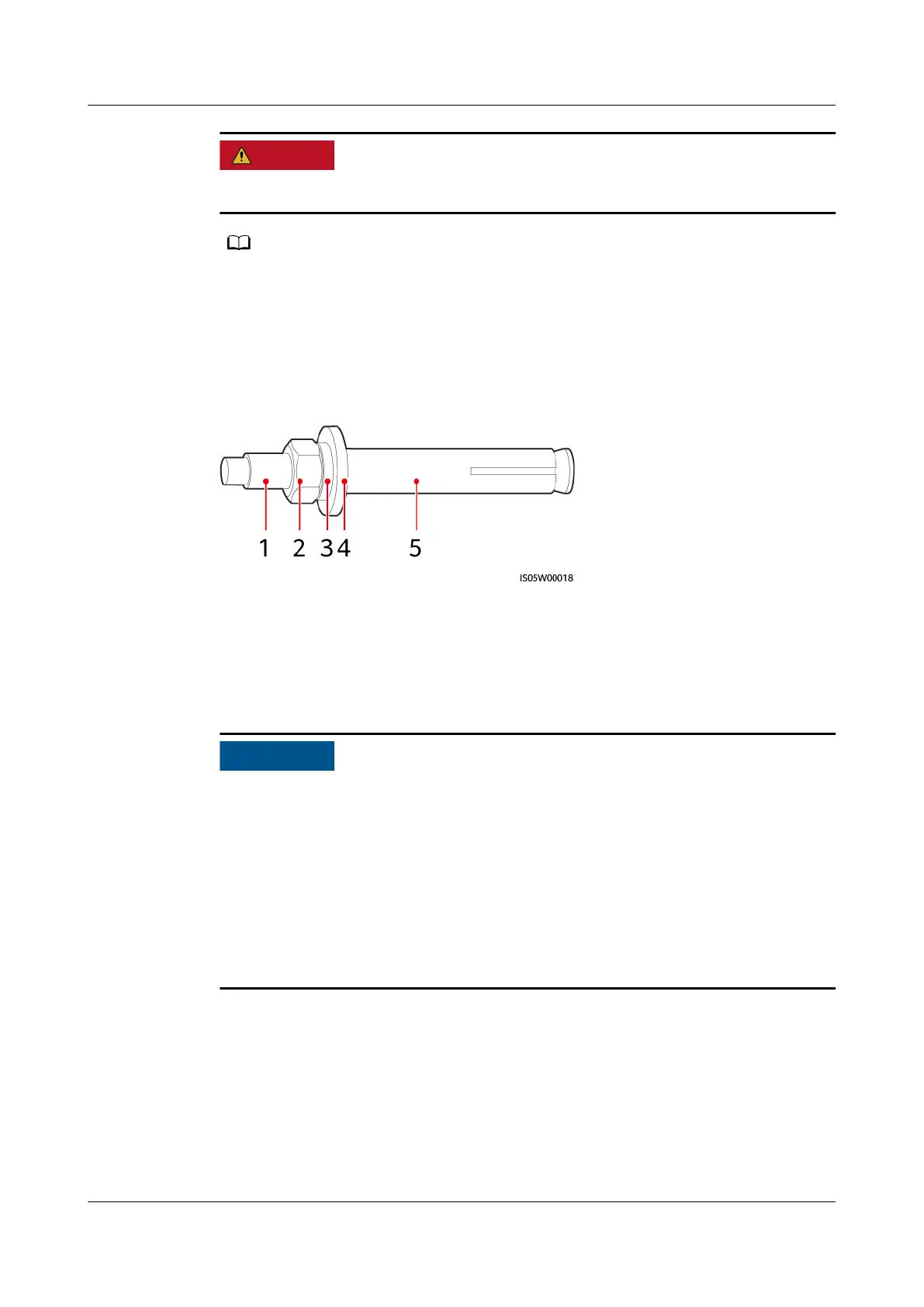

Figure 4-7 Expansion bolt composition
(1) Bolt (2) Nut (3) Spring washer
(4) Flat washer (5) Expansion sleeve
● To prevent dust inhalation or contact with eyes, wear safety goggles and a dust
mask when drilling holes.
● Use a vacuum cleaner to clean up dust in and around the holes, and measure
the spacing. If the holes are inaccurately positioned, drill the holes again.
● Level the top of the expansion sleeve with the concrete wall after removing the
nut, spring washer, and at washer. Otherwise, the mounting bracket will not
be securely installed on the concrete wall.
● Loosen the nut, spring washer, and at washer of the expansion bolt at the
bottom.
SUN2000-(8K, 10K)-LC0 Series
User Manual 4 Installation
Issue 01 (2023-09-15) Copyright © Huawei Digital Power Technologies Co., Ltd. 31
