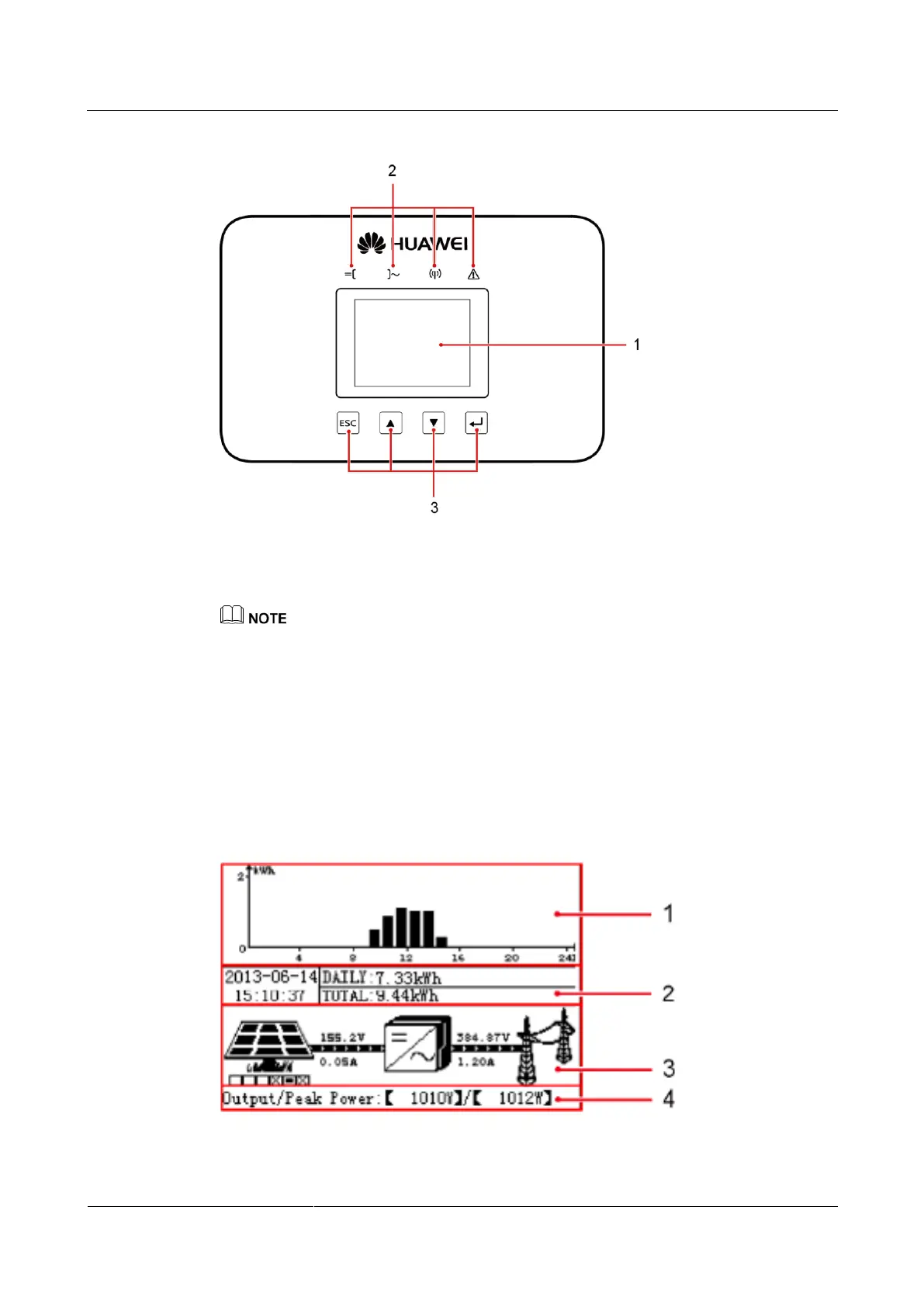

Figure 2-8 Monitoring panel
(1) LCD
(2) Indicators
(3) Buttons
The LCD displays SUN2000 operating data such as input power, output power, energy yield, and alarms.
The indicators show the SUN2000 operating status.
LCD
The LCD displays the SUN2000 data in graphics and text, including the operating
information, alarm information, system parameters, and user parameters.
If no button is pressed within 90s on a non-default screen, the LCD automatically displays the
default screen, which is shown in Figure 2-9.
Figure 2-9 Default page

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
