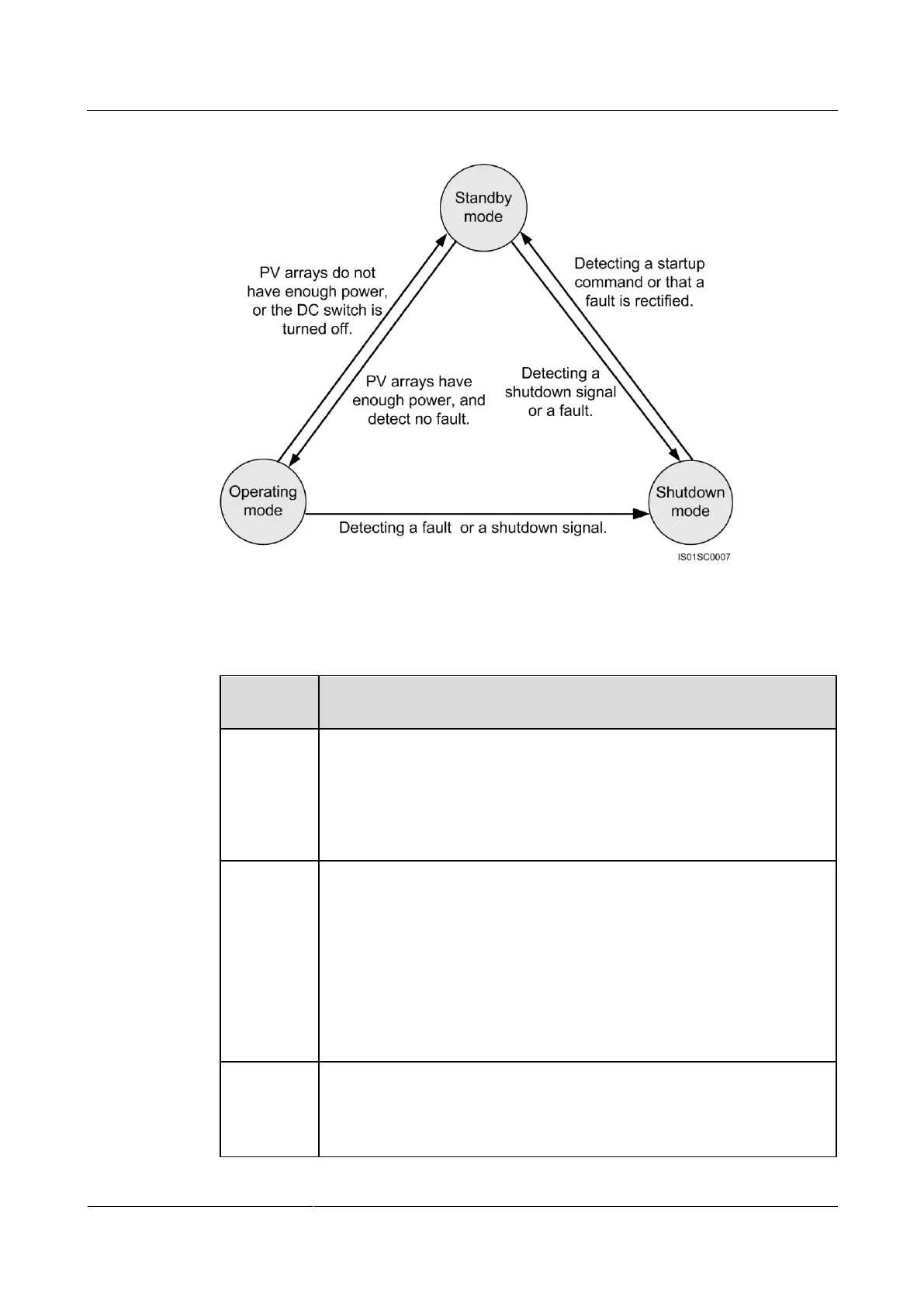

Figure 2-13 Working modes
Table 2-6 describes the working modes shown in Figure 2-13.
Table 2-6 Working mode description
Working
Mode
Description
Standby
The SUN2000 enters standby mode when the external environment does not
meet the SUN2000 operation requirements. In this mode, the SUN2000
continuously performs a self-check and enters operating mode once
operation requirements are met.
The SUN2000 switches to shutdown mode when it detects a shutdown
command or a fault.
Operating
In this mode:

The SUN2000 converts DC power from PV strings into AC power and
feeds the power to the power grid.

The SUN2000 always tracks the maximum power point to maximize the
PV string output.

The SUN2000 enters the shutdown mode after detecting a fault or a
shutdown command, and enters the standby mode after detecting that the
PV string output power does not meet the requirements for grid-tied
electricity generation.
Shutdown
The SUN2000 switches from standby or operating mode to shutdown mode
when it detects a fault or a shutdown command.
The SUN2000 switches to standby mode when it receives a startup
command or when it detects that a fault is rectified.

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
