Checking the Product and Accessories
After unpacking the SUN2000, check the product and accessories. If any damage is found or
any component is missing, contact the dealer.

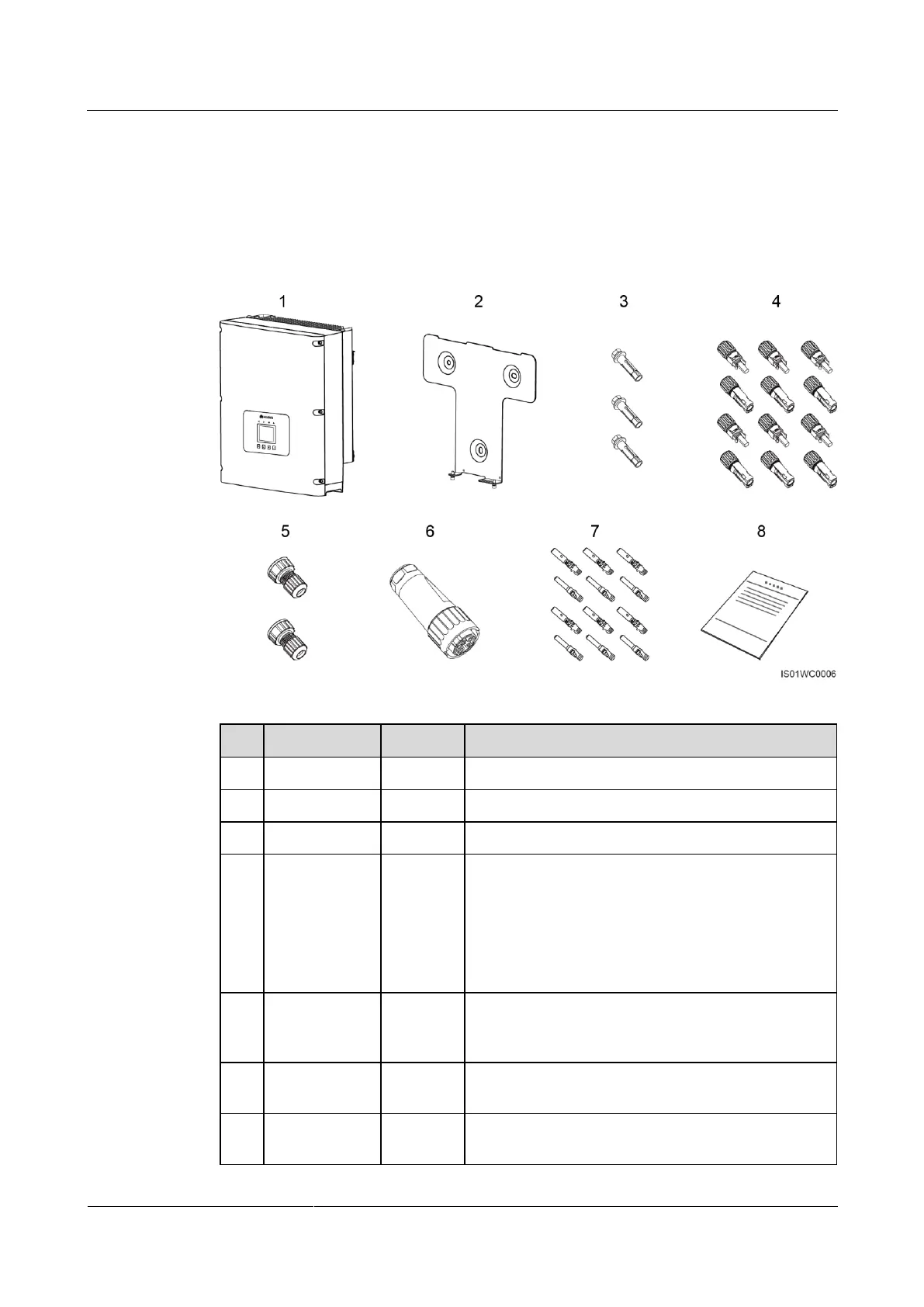

Figure 4-1 shows the product and accessories included in the delivery.
Figure 4-1 Product and accessories
No.
Name
Quantity
Description
1
SUN2000
1
N/A
2
Rear panel
1
N/A
3
Expansion bolt
3
Secures the rear panel to a wall.
4
DC input
connector
8/12
Connects to a DC input power cable.

SUN2000-8KTL/10KTL/12KTL: 8 (4 positive
connectors and 4 negative connectors)

SUN2000-15KTL/17KTL/20KTL/23KTL/28KTL:
12 (6 positive connectors and 6 negative
connectors)
5
Waterproof
RJ45
connector
2
Connects to a communications cable.
6
AC output
connector
1
Connects to an AC output power cable.
7
Metal terminal
8/12
Secures a connector to a DC input power cable.

SUN2000-8KTL/10KTL/12KTL: 8 (4 positive

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
