4 Installation
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
25

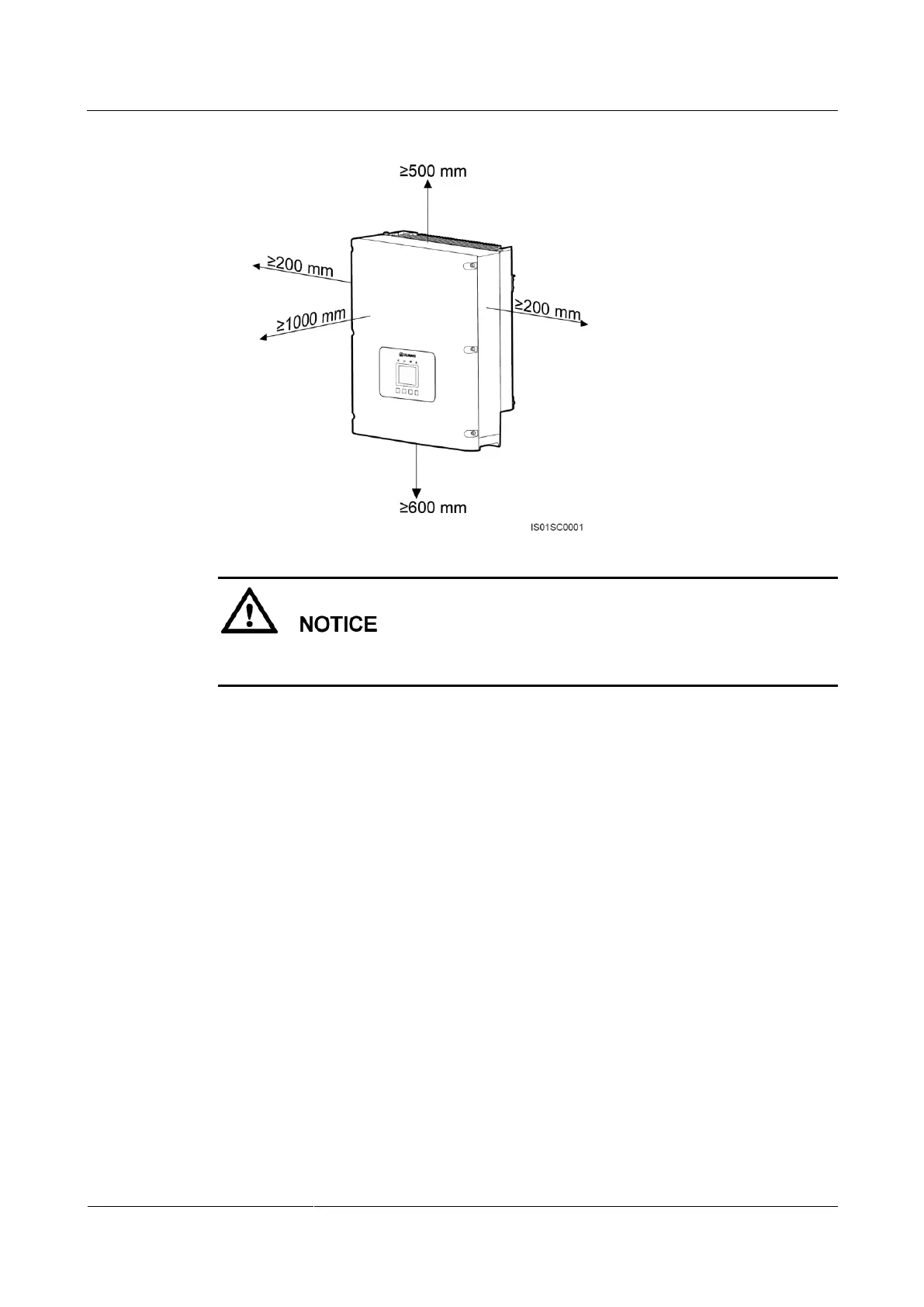

Figure 4-2 Minimum installation clearance
The minimum installation clearance shown in Figure 4-2 must be provided in any installation
scenario, including wall-mounted and support-mounted scenarios.

Multiple SUN2000s must be installed in a line if sufficient space is available. Otherwise,
they must be installed in checkerboard mode as shown in Figure 4-3. The stacked
installation mode shown in Figure 4-4 is not recommended. The clearance between
SUN2000s must meet requirements shown in the following figures.

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
