Huawei SUN2000-8KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
5 Electrical Connections
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
42
Context
Good grounding for the SUN2000 helps resist the impact of surge voltage and improve EMI
performance. Connect the PGND cable before connecting the AC power cables, DC power
cables, and communications cables.
It is recommended that the ground cable be connected to a nearby ground position. For a
system with multiple inverters connected in parallel, connect the ground points of all inverters
to ensure equipotential connections.
If the installation location is near the ground, connect the PGND cable to the ground before installing the
SUN2000.

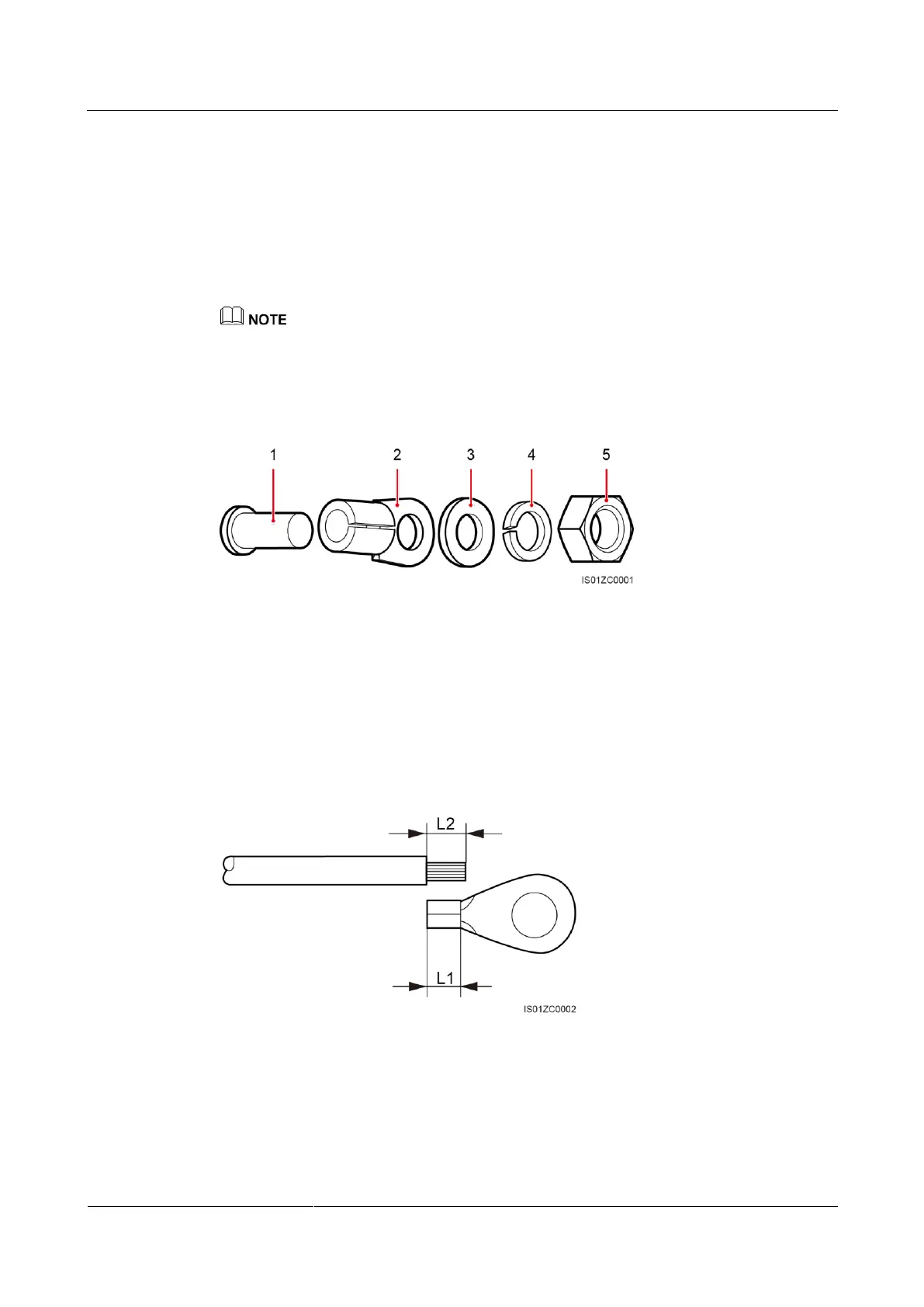

A ground terminal has five parts, as shown in Figure 5-1.
Figure 5-1 Ground terminal composition
(1) M6 welded stud
(2) OT terminal
(3) Flat washer
(4) Spring washer
(5) Nut
Procedure
Step 1 Remove an appropriate length of the insulation layer from the PGND cable using a wire
stripper, as shown in Figure 5-2.
Figure 5-2 Stripped length
Note: L2 is 2 mm to 3 mm longer than L1.
Step 2 Insert the exposed core wires into the conductor crimp area of the OT terminal and crimp
them using a crimping tool, as shown in Figure 5-3.
Recommended OT terminal: OT-6 mm
2
or 10 AWG-M6.

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
