Huawei SUN2000-8KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
5 Electrical Connections
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
48

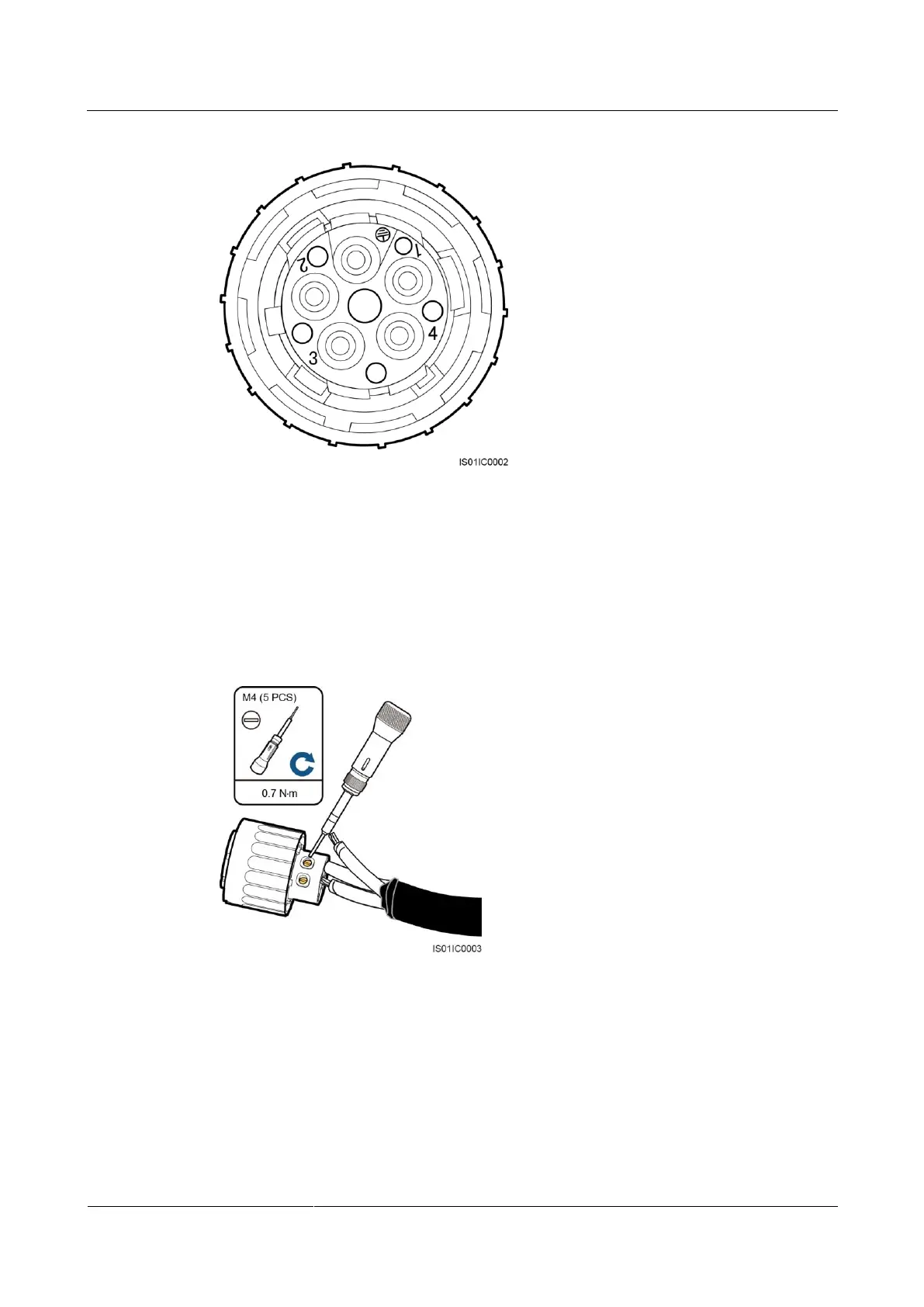

Figure 5-9 Coupler

Connect L1 to hole number 1.

Connect L2 to hole number 2.

Connect L3 to hole number 3.

Connect N to hole number 4.
For the SUN2000-28KTL, do not connect the neutral wire to hole number 4.
Figure 5-10 Connecting an AC output cable to the coupler
Step 5 Check that all core wires are properly connected, as shown in Figure 5-11.

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
