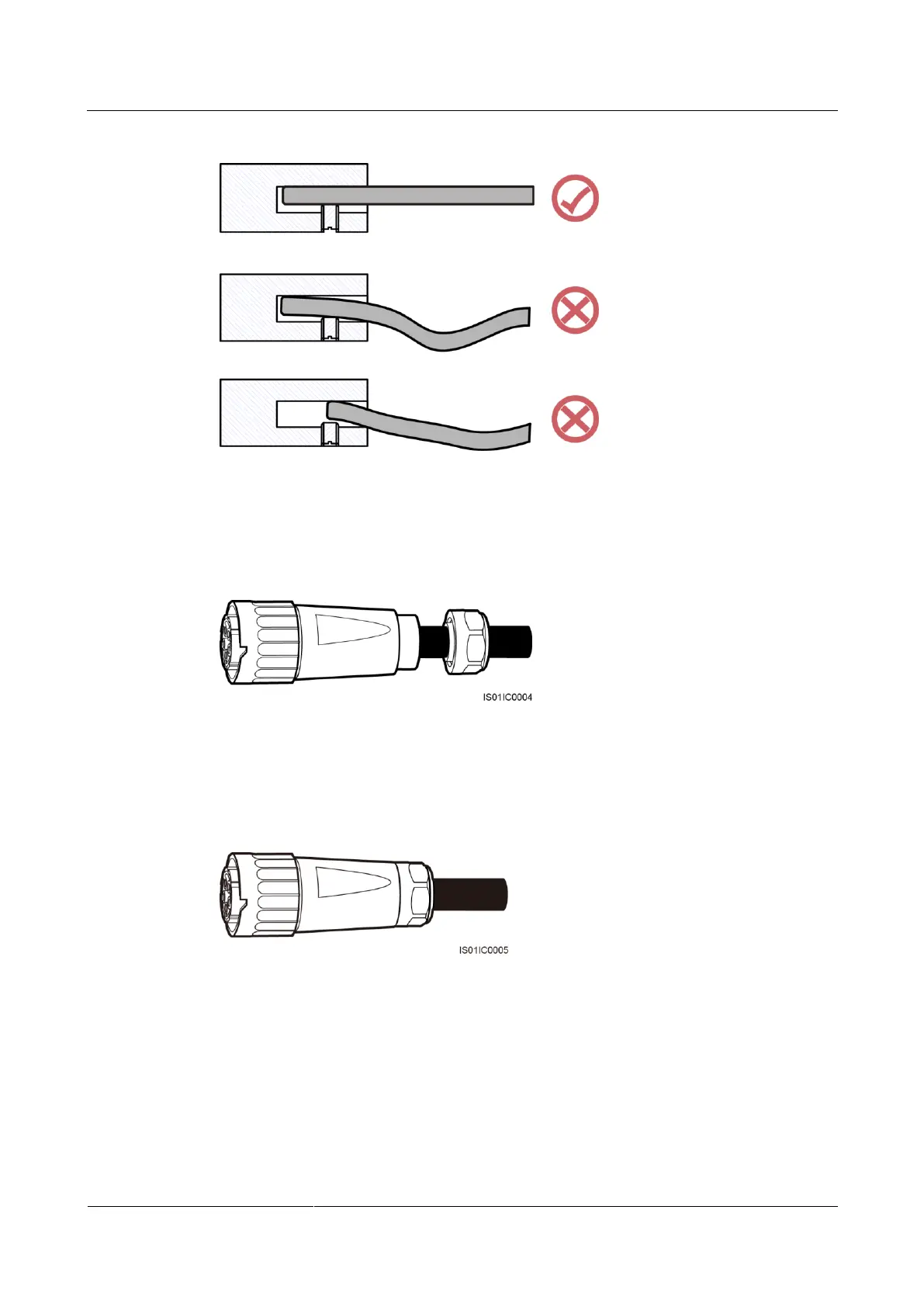

Figure 5-11 Checking the cable connections
Step 6 Secure the adapter to the coupler, as shown in Figure 5-12.
Tighten the adapter to a torque of 1-2 N·m.
Figure 5-12 Securing the adapter
Step 7 Secure the cable gland to the adapter, as shown in Figure 5-13.
Tighten the cable gland to a torque of 5 N·m using a tool.
Figure 5-13 Securing the cable gland
Step 8 Connect the AC output connector to the bayonet coupling of the AC output wiring terminal on
the SUN2000 and rotate it clockwise until a "click" sound is heard, as shown in Figure 5-14.
Because there is insufficient space on the right of the AC terminal, tighten the terminal with
the left hand.
