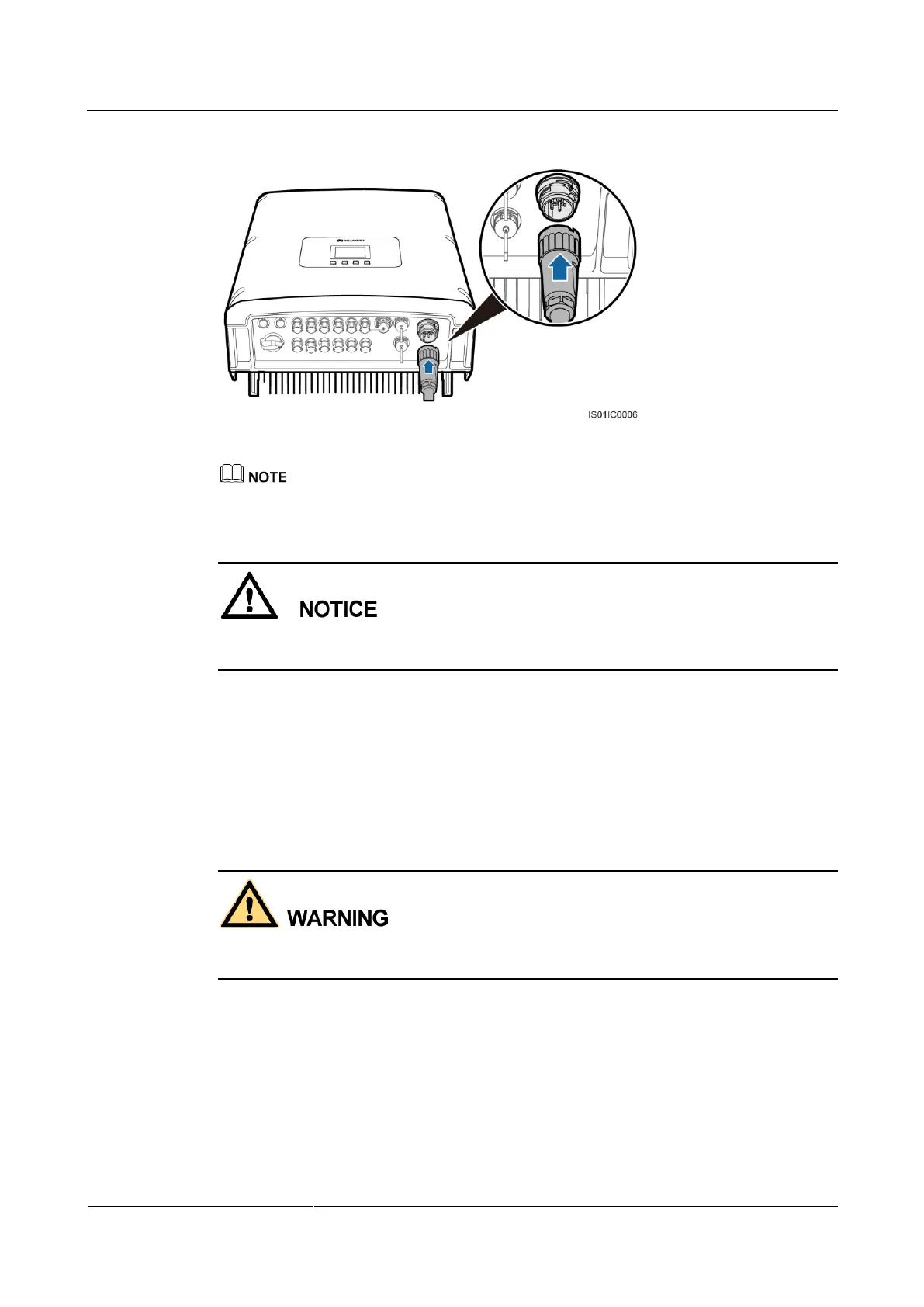

Figure 5-14 Connecting an AC output connector
The AC output connector is securely connected to the AC output wiring terminal after the bayonet
coupling snaps into place.
Reserve a margin of more than 0.5 meter for the cable at the AC output power cable connector
to reduce the cable terminal disconnection due to external force.
----End
Follow-up Procedure
To remove the AC output connector from the SUN2000, press down the locking plate on the
AC output wiring terminal using a flat-head screwdriver as shown in Figure 5-15. Rotate the
AC output connector counterclockwise.
Before removing the AC output connector, switch off the circuit breaker between the
SUN2000 and the power grid.

Huawei SUN2000-8KTL Specifications

General

Max. efficiency	98.6%
European efficiency	98.3%
Max. DC voltage	1100 V
Nominal AC output power	8000 W
Weight	25 kg
Operating temperature range	-25°C to +60°C
Protection rating	IP65
Max. apparent AC power	8800 VA
AC grid frequency	50 Hz / 60 Hz
Starting voltage	200 V
Number of MPPTs	2
Cooling	Natural convection
Maximum DC Input Power	12000 W
Output Frequency	50 Hz / 60 Hz
Nominal AC voltage	230 V
Operating voltage range	200 V - 1000 V
Rated Output Voltage	230 V
MPPT Voltage Range	260 V - 850 V
