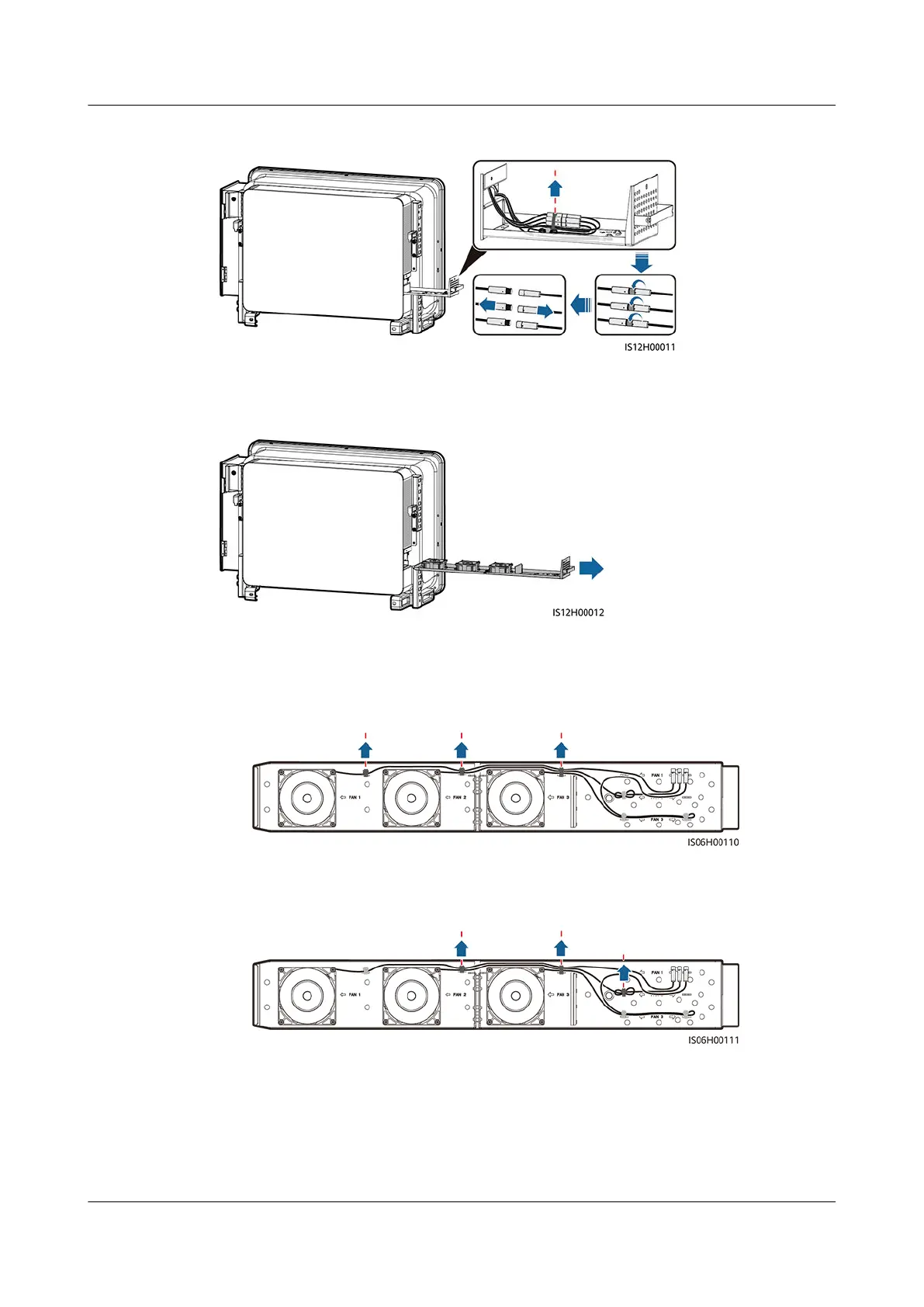

Figure 8-4 Disconnecting cables
Step 3 Pull out the fan tray.
Figure 8-5 Pulling out fan tray (2)
Step 4 Remove cable ties from the faulty fan.
● FAN 1 Faulty
Figure 8-6 Removing the FAN 1 cable ties
● FAN 2 Faulty
Figure 8-7 Removing the FAN 2 cable ties
● FAN 3 Faulty
SUN2000-(100KTL, 110KTL, 115KTL)-M2
User Manual 8 Maintenance
