Huawei SUN2000 Series User Manual

Wiring Area

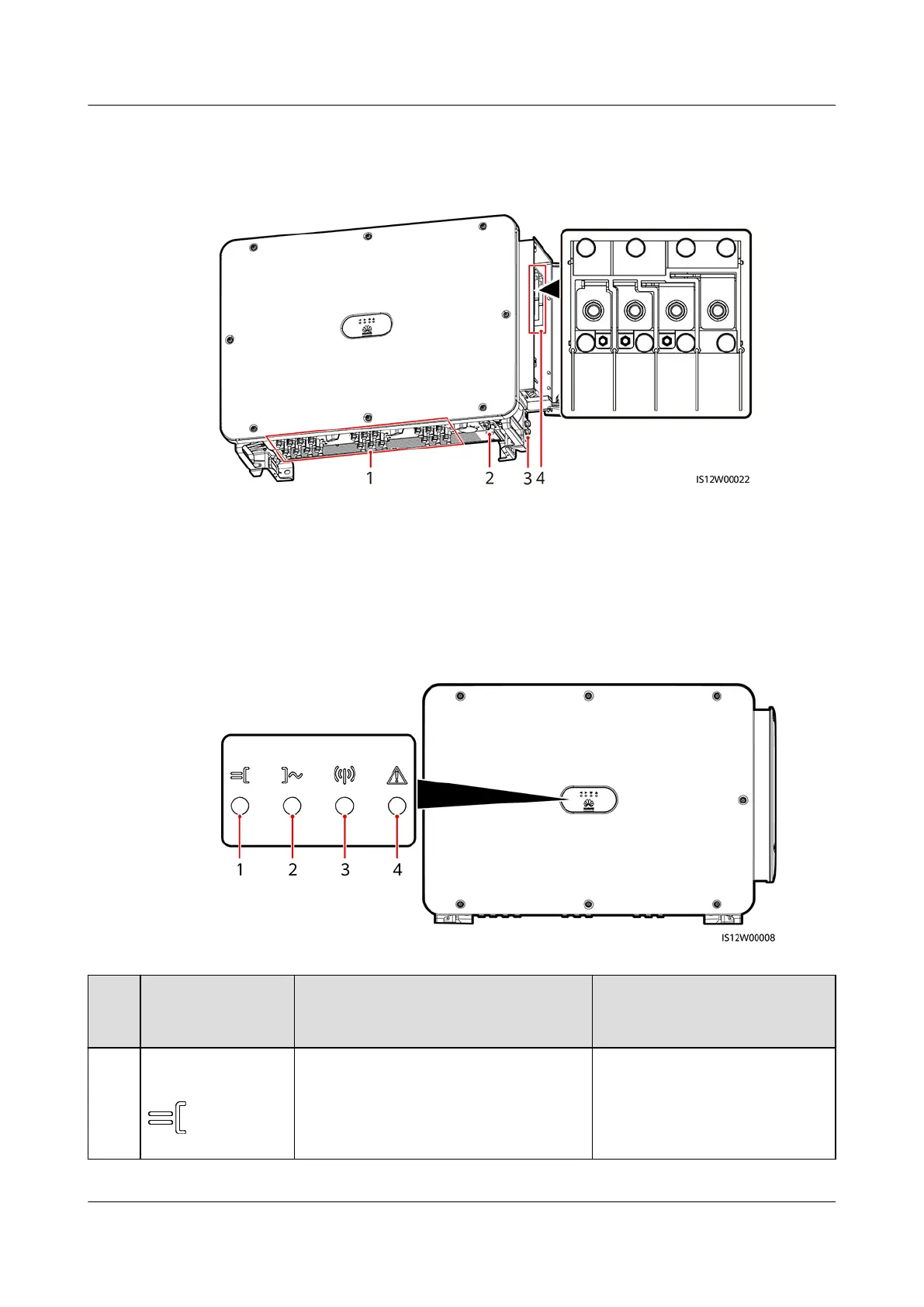

Figure 2-8 Wiring port
(1) DC input terminals (2) RS485 port
(3) Ground point on the enclosure (4) AC terminal block
2.4.2 Indicator Status
Figure 2-9 Indicators
No.
Indicator Status (Blinking Fast: On for 0.2s
and O for 0.2s; Blinking Slowly:
On for 1s and O for 1s)
Description
1 PV connection
indicator
Steady green At least one PV string is
properly connected, and the
DC input voltage of the
corresponding MPPT circuit is
at least 200 V.
SUN2000-(100KTL, 110KTL, 115KTL)-M2
User Manual 2 Overview
Issue 02 (2022-06-30) Copyright © Huawei Technologies Co., Ltd. 14

Huawei SUN2000 Series Specifications

General

Max Efficiency	98.6%
MPPT Efficiency	99.9%
Protection Rating	IP65
Max. DC Voltage	1100 V
Rated AC Frequency	50 Hz / 60 Hz
Rated Power	3kW - 10kW
Operating Temperature Range	-25 °C ~ +60 °C
Communication	RS485
Rated AC Power	3kW - 10kW
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THD)	≤ 3%
Protection	DC reverse polarity
Cooling	Natural convection
DC Connection	MC4
