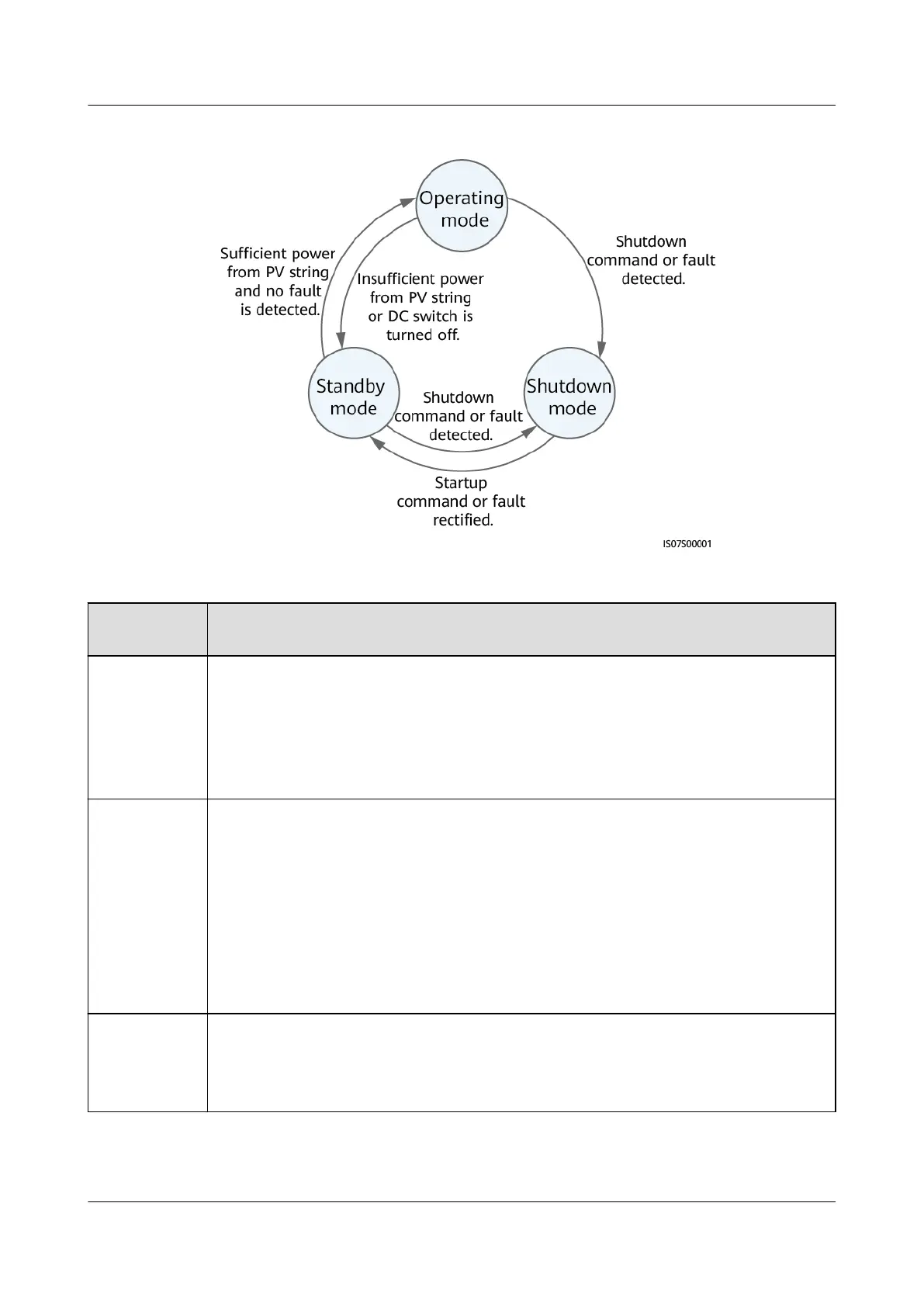

Figure 2-11 Working modes
Table 2-3 Working mode description
Working
Mode
Description
Standby The SUN2000 enters Standby mode when the external environment does not
meet the operating requirements. In Standby mode:
The SUN2000 continuously performs status check and enters the Operating
mode once the operating requirements are met.
The SUN2000 enters Shutdown mode after detecting a shutdown command or
a fault after startup.
Operating In Operating mode:
The SUN2000 converts DC power from PV strings into AC power and feeds the
power to the power grid.
The SUN2000 tracks the maximum power point to maximize the PV string
output.
If the SUN2000 detects a fault or a shutdown command, it enters the
Shutdown mode.
The SUN2000 enters Standby mode after detecting that the PV string output
power is not suitable for connecting to the power grid for generating power.
Shutdown In Standby or Operating mode, the SUN2000 enters Shutdown mode after
detecting a fault or shutdown command.
In Shutdown mode, the SUN2000 enters Standby mode after detecting a
startup command or that the fault is rectied.
SUN2000-(100KTL, 110KTL, 115KTL)-M2
User Manual 2 Overview
Issue 02 (2022-06-30) Copyright © Huawei Technologies Co., Ltd. 18
