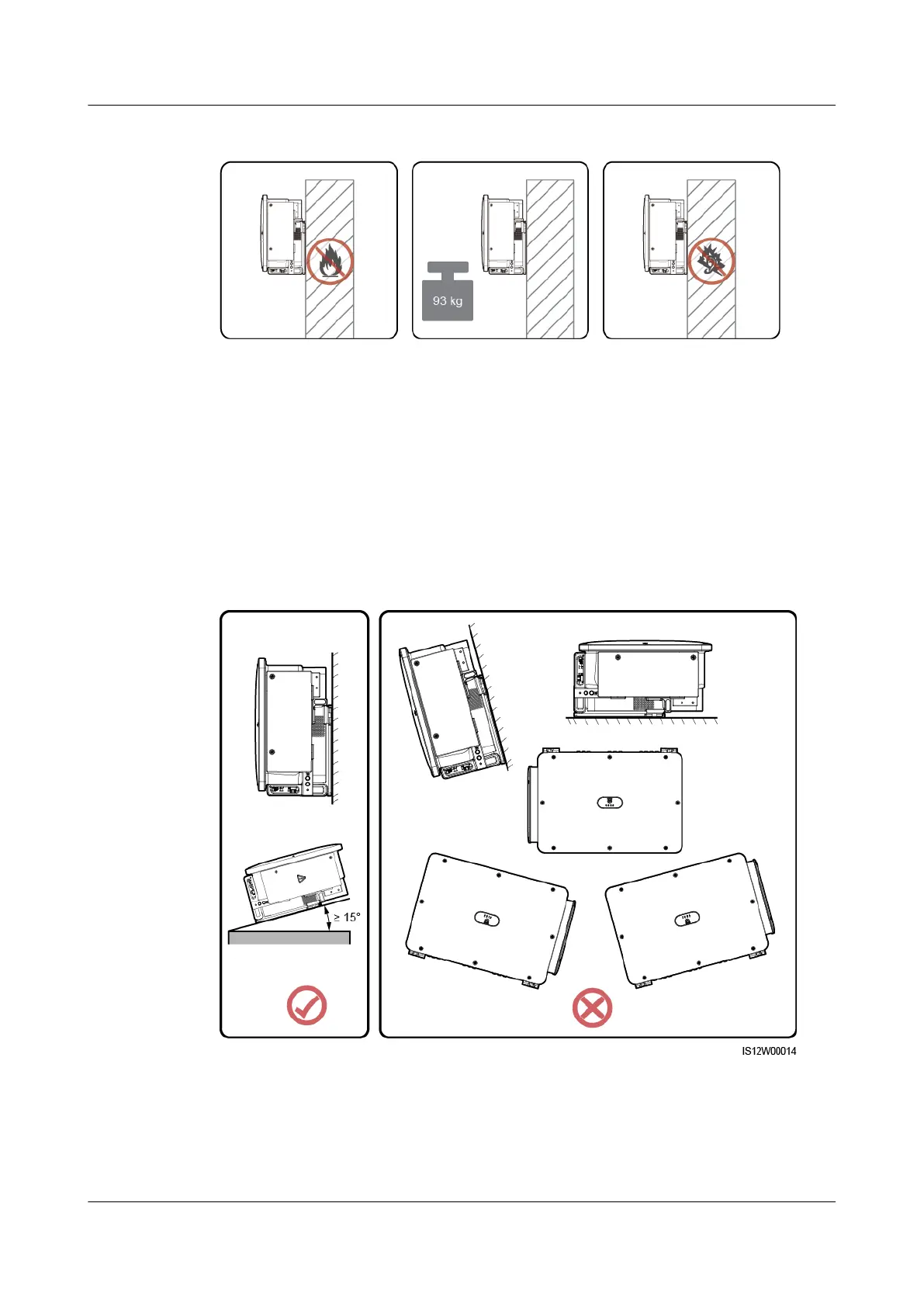

Figure 4-1 Mounting structure
Installation Angle Requirements
The solar inverter can be support-mounted or wall-mounted. The installation
angle requirements are as follows:
Install the solar inverter vertically or at a maximum back tilt of 75 degrees to
facilitate heat dissipation.
Do not install the solar inverter at forward tilted, excessive back tilted, side
tilted, horizontal, or upside down positions.
Figure 4-2 Angle
Installation Dimensions Requirements
Reserve enough space around the solar inverter for installation and heat
dissipation.
SUN2000-(100KTL, 110KTL, 115KTL)-M2
User Manual 4 Installation
Issue 02 (2022-06-30) Copyright © Huawei Technologies Co., Ltd. 25
