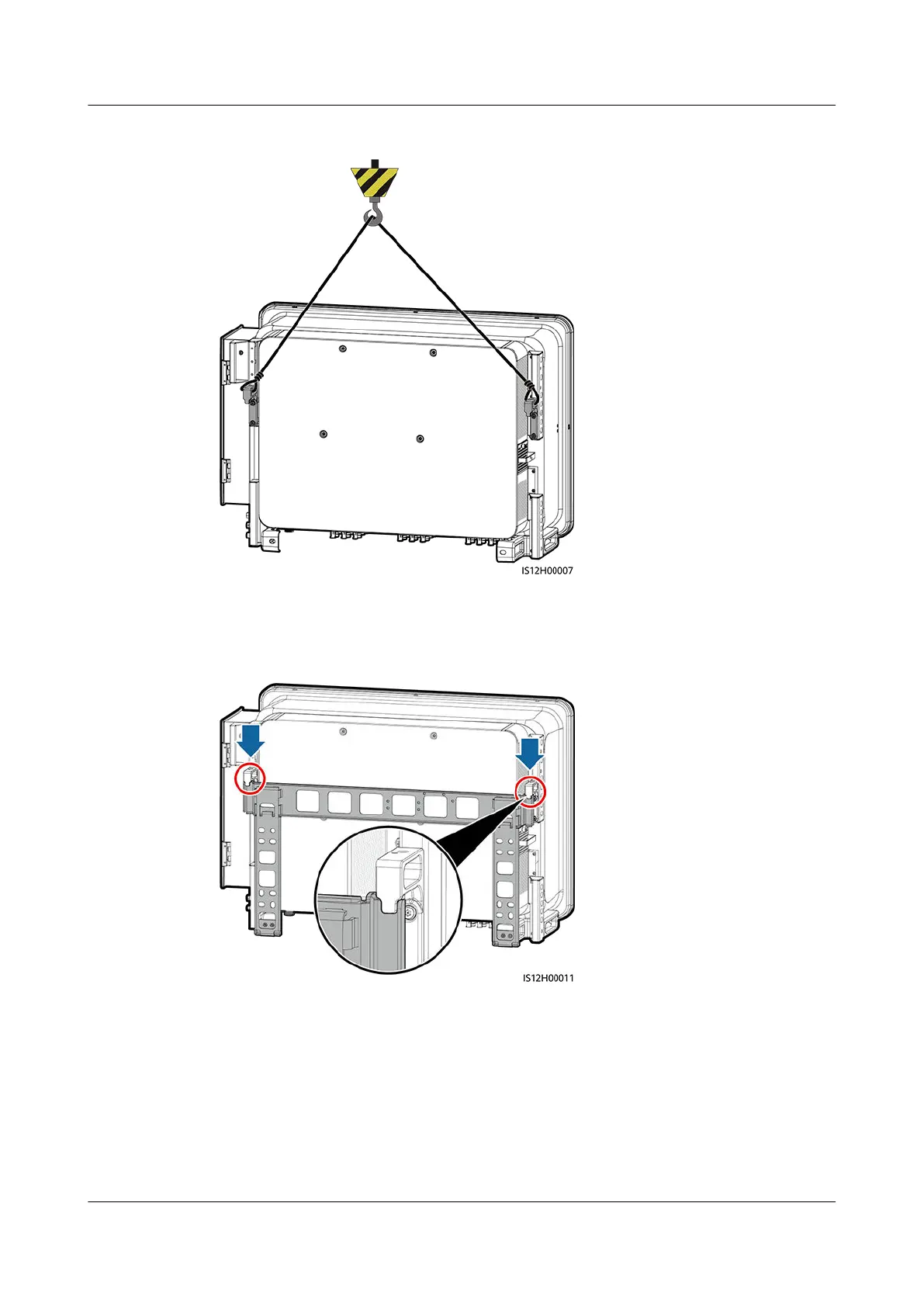

Figure 4-15 Hoisting the solar inverter
Step 4 Install the solar inverter on the mounting bracket and align the solar inverter
enclosure with the mounting bracket.
Figure 4-16 Mounting the solar inverter
Step 5 Secure the solar inverter.
SUN2000-(100KTL, 110KTL, 115KTL)-M2
User Manual 4 Installation
Issue 02 (2022-06-30) Copyright © Huawei Technologies Co., Ltd. 33
