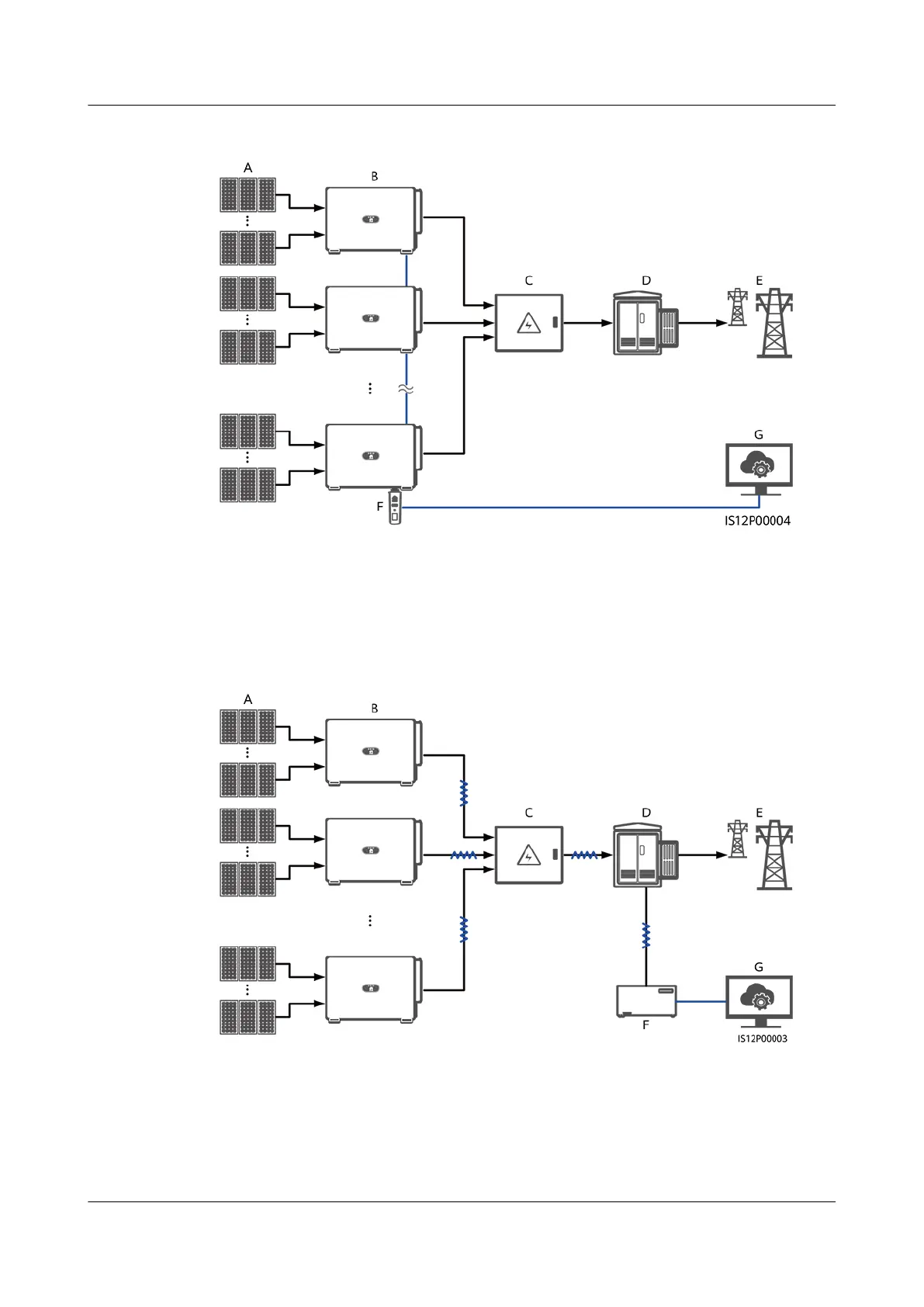

Figure 5-2 RS485 networking (SDongle)
(A) PV string (B) SUN2000 (C) AC combiner box
(D) Transformer station (E) Power grid (F) SDongle
(G) Management system - -
Figure 5-3 MBUS networking (SmartLogger)
(A) PV string
(B) SUN2000 (C) AC combiner box
(D) Transformer station (E) Power grid (F) SmartLogger
(G) Management system - -
SUN2000-(100KTL, 110KTL, 115KTL)-M2
User Manual 5 Electrical Connections
Issue 02 (2022-06-30) Copyright © Huawei Technologies Co., Ltd. 37
