Huawei SUN2000 Series User Manual

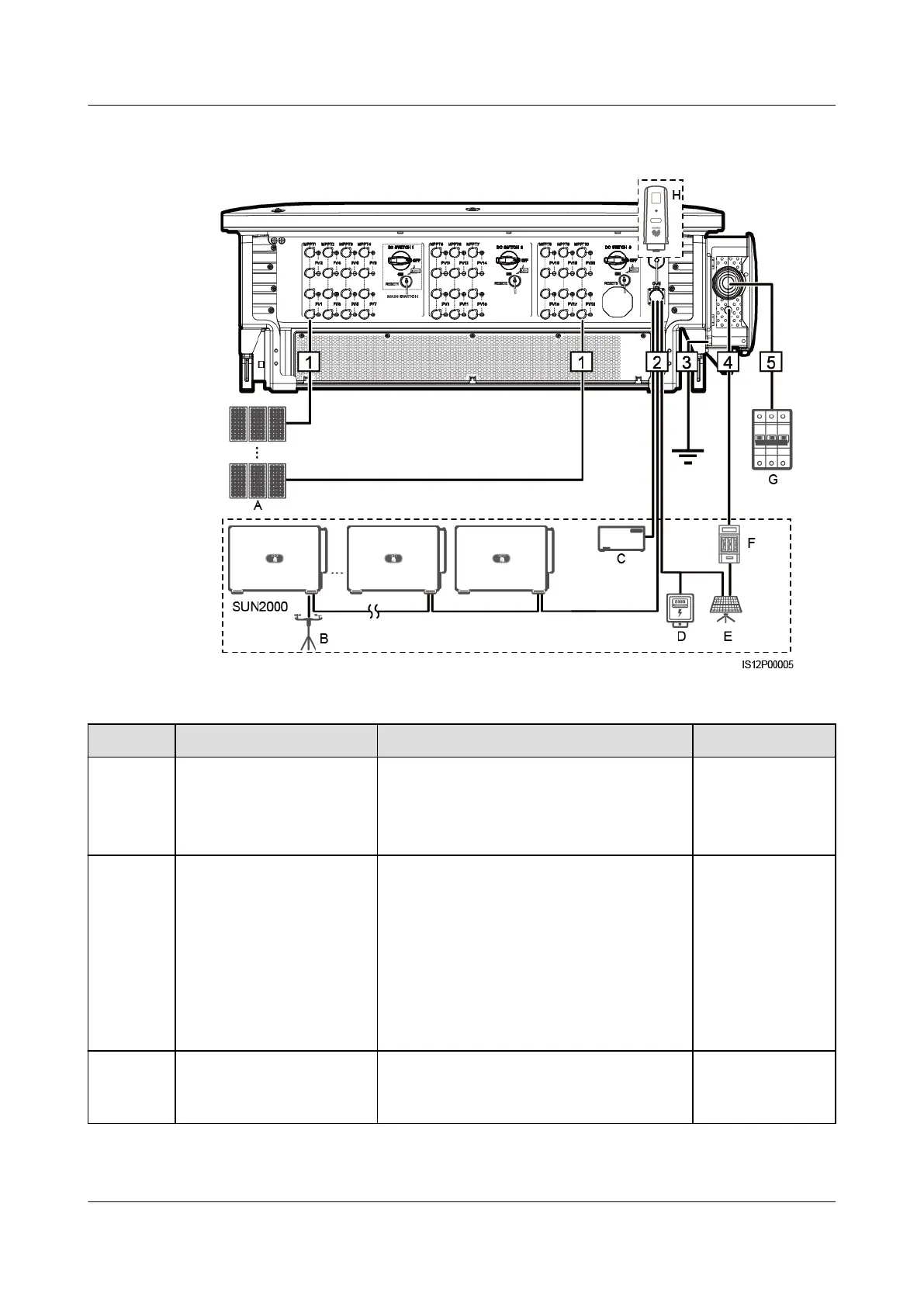

Figure 5-5 Cable connections (congure the components in the dotted box as
required)
Table 5-1 Components
No.
Component Description Source
A PV string ● PV strings consist of PV modules in
series.
● A solar inverter supports 20 PV
string inputs.
Prepared by the
customer
B Environmental
monitoring instrument
(EMI)
● When the SmartLogger is used, the
EMI can be directly connected to the
SmartLogger or connected to the
last solar inverter cascaded over
RS485.
● When the SDongle is used, the EMI
is a cascaded device that needs to be
connected to the solar inverter
where the SDongle is installed.
Prepared by the
customer
C SmartLogger The solar inverter communicates with
the management system through the
SmartLogger.
Purchased from
the Company
SUN2000-(100KTL, 110KTL, 115KTL)-M2
User Manual 5 Electrical Connections
Issue 02 (2022-06-30) Copyright © Huawei Technologies Co., Ltd. 39

Huawei SUN2000 Series Specifications

General

Max Efficiency	98.6%
MPPT Efficiency	99.9%
Protection Rating	IP65
Max. DC Voltage	1100 V
Rated AC Frequency	50 Hz / 60 Hz
Rated Power	3kW - 10kW
Operating Temperature Range	-25 °C ~ +60 °C
Communication	RS485
Rated AC Power	3kW - 10kW
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THD)	≤ 3%
Protection	DC reverse polarity
Cooling	Natural convection
DC Connection	MC4
