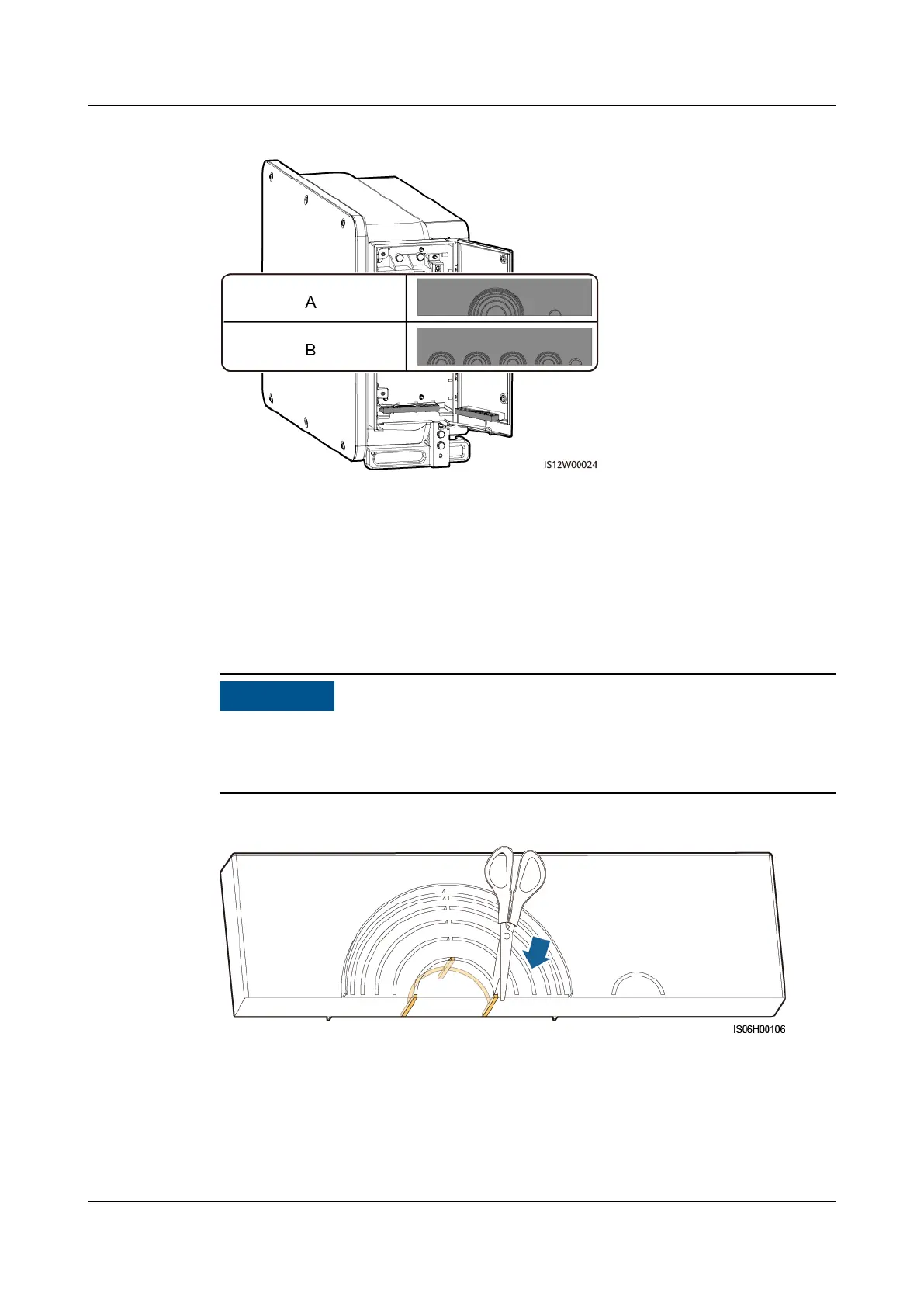

Figure 5-9 Select the crimping module
(A) Crimping module for multi-core cables (B) Crimping module for single-core cables
----End
Follow-up Procedure
Use scissors to cut o the joints of the rubber rings to remove them. All rubber
rings are removed in the same way.
Remove the corresponding rubber rings in strict accordance with the cable
diameter, and ensure that the crimping module is not damaged. Otherwise the
protection level of the solar inverter will be
aected.
Figure 5-10 Remove the rubber ring
SUN2000-(100KTL, 110KTL, 115KTL)-M2
User Manual 5 Electrical Connections
Issue 02 (2022-06-30) Copyright © Huawei Technologies Co., Ltd. 46
