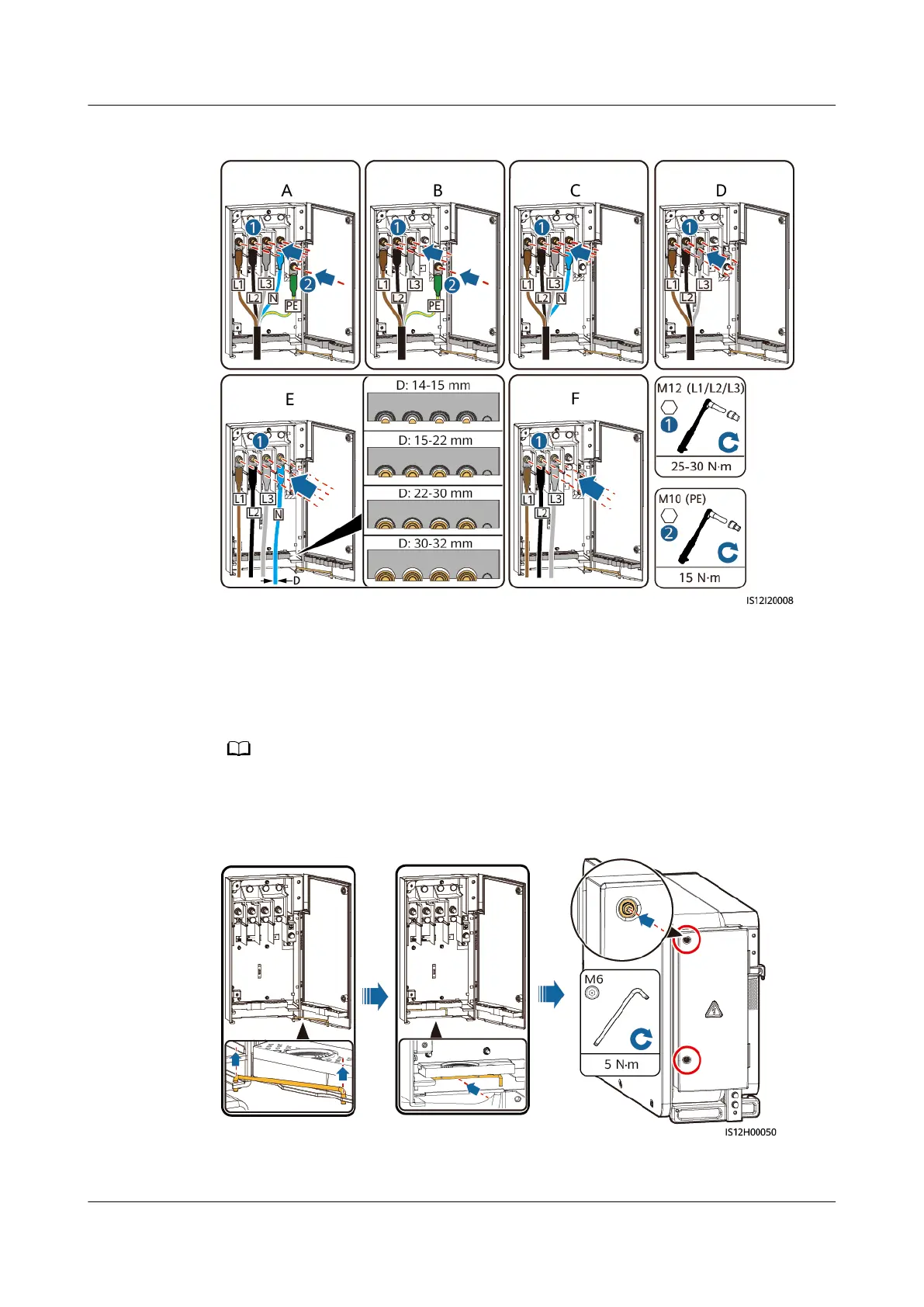

Figure 5-17 Cable connections
(A) Five-core cable (B) Four-core cable (including
the PE cable)
(C) Four-core cable (including
the neutral wire)
(D) Three-core cable (E) Single-core cable (including
the neutral wire)
(F) Single-core cable
(excluding the neutral wire)
NO TE
The cable colors shown in gures are for reference only. Select an appropriate cable
according to the local standards.
Figure 5-18 Closing the Maintenance Compartment Door
----End
SUN2000-(100KTL, 110KTL, 115KTL)-M2
User Manual 5 Electrical Connections
Issue 02 (2022-06-30) Copyright © Huawei Technologies Co., Ltd. 53

Huawei SUN2000 Series Specifications

General

Max Efficiency	98.6%
MPPT Efficiency	99.9%
Protection Rating	IP65
Max. DC Voltage	1100 V
Rated AC Frequency	50 Hz / 60 Hz
Rated Power	3kW - 10kW
Operating Temperature Range	-25 °C ~ +60 °C
Communication	RS485
Rated AC Power	3kW - 10kW
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THD)	≤ 3%
Protection	DC reverse polarity
Cooling	Natural convection
DC Connection	MC4
