Huawei SUN2000 Series User Manual

Terminal Description
The solar inverter has 20 DC input terminals. DC SWITCH 1 controls PV1–PV8
(MPPT1–MPPT4), DC SWITCH 2 controls PV9–PV14 (MPPT5–MPPT7), and DC
SWITCH 3 controls PV15–PV20 (MPPT8–MPPT10).

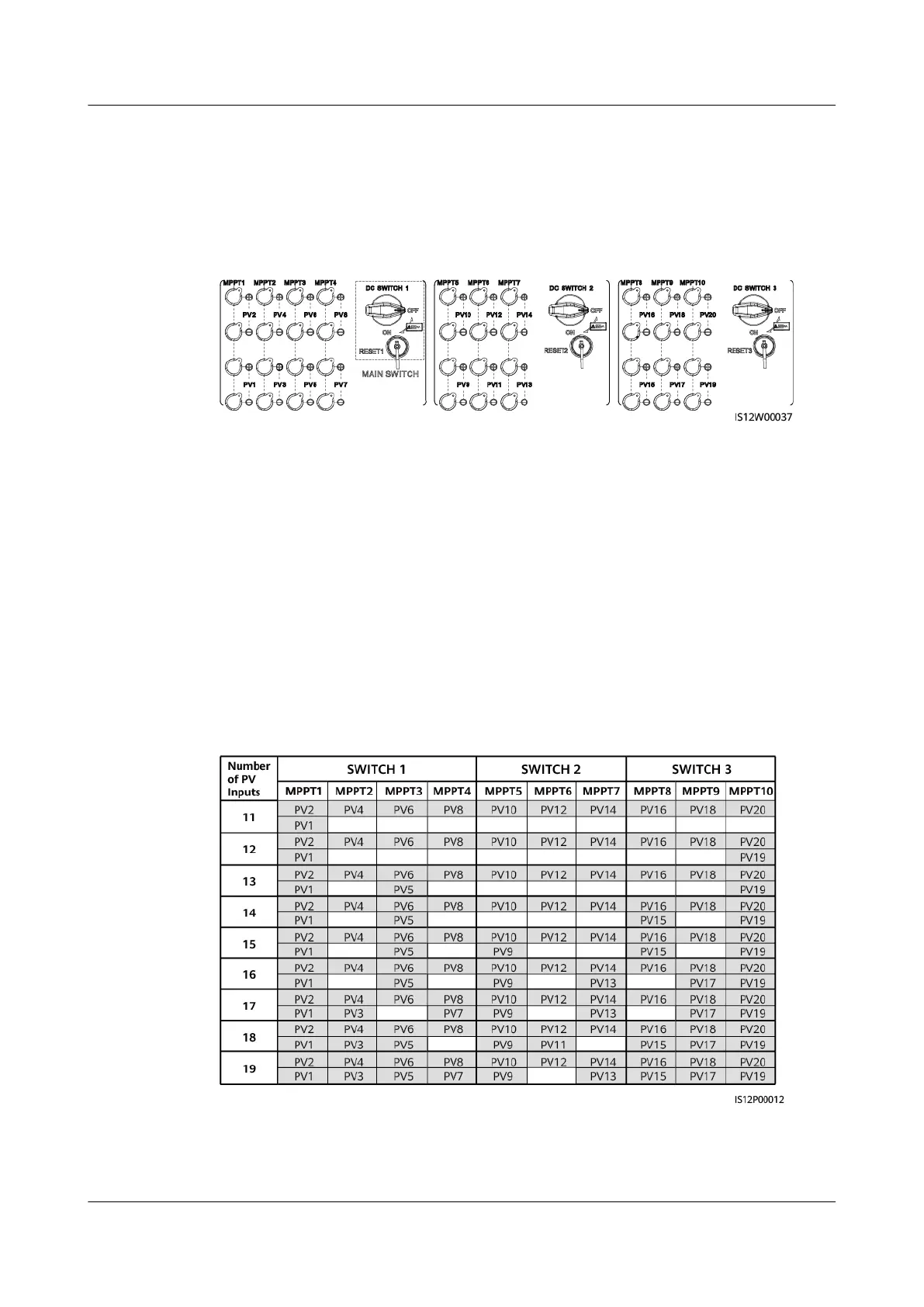

Figure 5-19 DC terminals
When the DC input is not fully congured, the DC input terminals must meet the
following requirements:
1. Evenly distribute the DC input power cables on the DC input terminals
controlled by the three DC switches. DC SWITCH 1 is preferred.
2. The even-numbered PV terminals are preferred to maximize the connections
of MPPTs.
3. If the number of PV inputs is 11 to 19, connect cables to the odd-numbered
PV terminals from PV1 and PV19, and avoid connections to adjacent MPPTs if
possible.
If the number of PV inputs is 11 to 19, the DC input terminals are selected as
follows.
Figure 5-20 DC input terminal connections
SUN2000-(100KTL, 110KTL, 115KTL)-M2
User Manual 5 Electrical Connections
Issue 02 (2022-06-30) Copyright © Huawei Technologies Co., Ltd. 55

Huawei SUN2000 Series Specifications

General

Max Efficiency	98.6%
MPPT Efficiency	99.9%
Protection Rating	IP65
Max. DC Voltage	1100 V
Rated AC Frequency	50 Hz / 60 Hz
Rated Power	3kW - 10kW
Operating Temperature Range	-25 °C ~ +60 °C
Communication	RS485
Rated AC Power	3kW - 10kW
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THD)	≤ 3%
Protection	DC reverse polarity
Cooling	Natural convection
DC Connection	MC4
