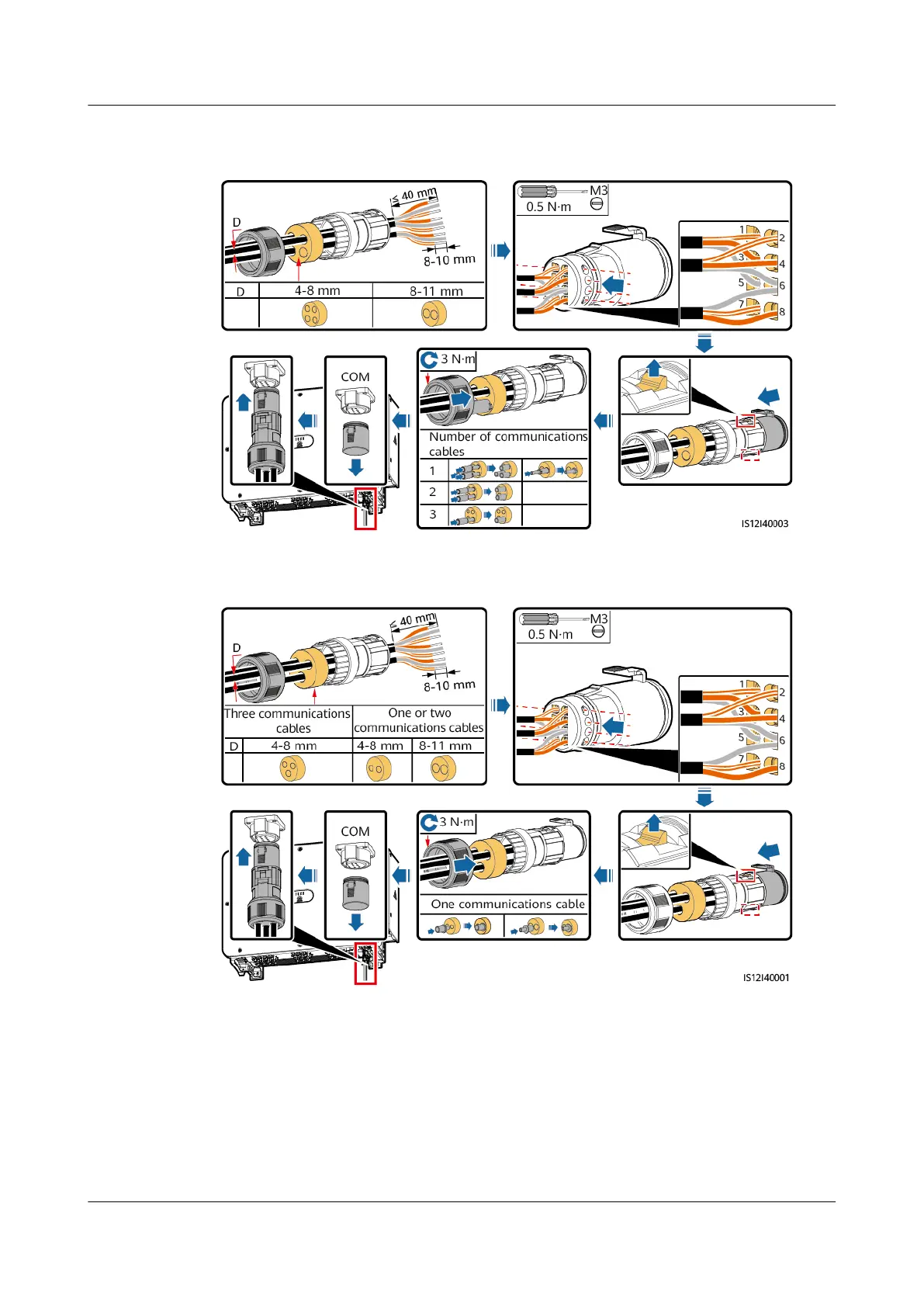

Figure 5-25 Connecting RS485 communications cables (4–8 mm four-hole rubber
plug)
Figure 5-26 Connecting RS485 communications cables (4–8 mm two-hole or
three-hole rubber plug)
SUN2000-(100KTL, 110KTL, 115KTL)-M2
User Manual 5 Electrical Connections
