2.5 FlexIO Cards
For details about FlexIO cards supported by the server, see the Intelligent
Computing Compatibility Checker.
The following gures show the indicators on the FlexIO cards.
The following
gure shows the indicators on the FlexIO cards.

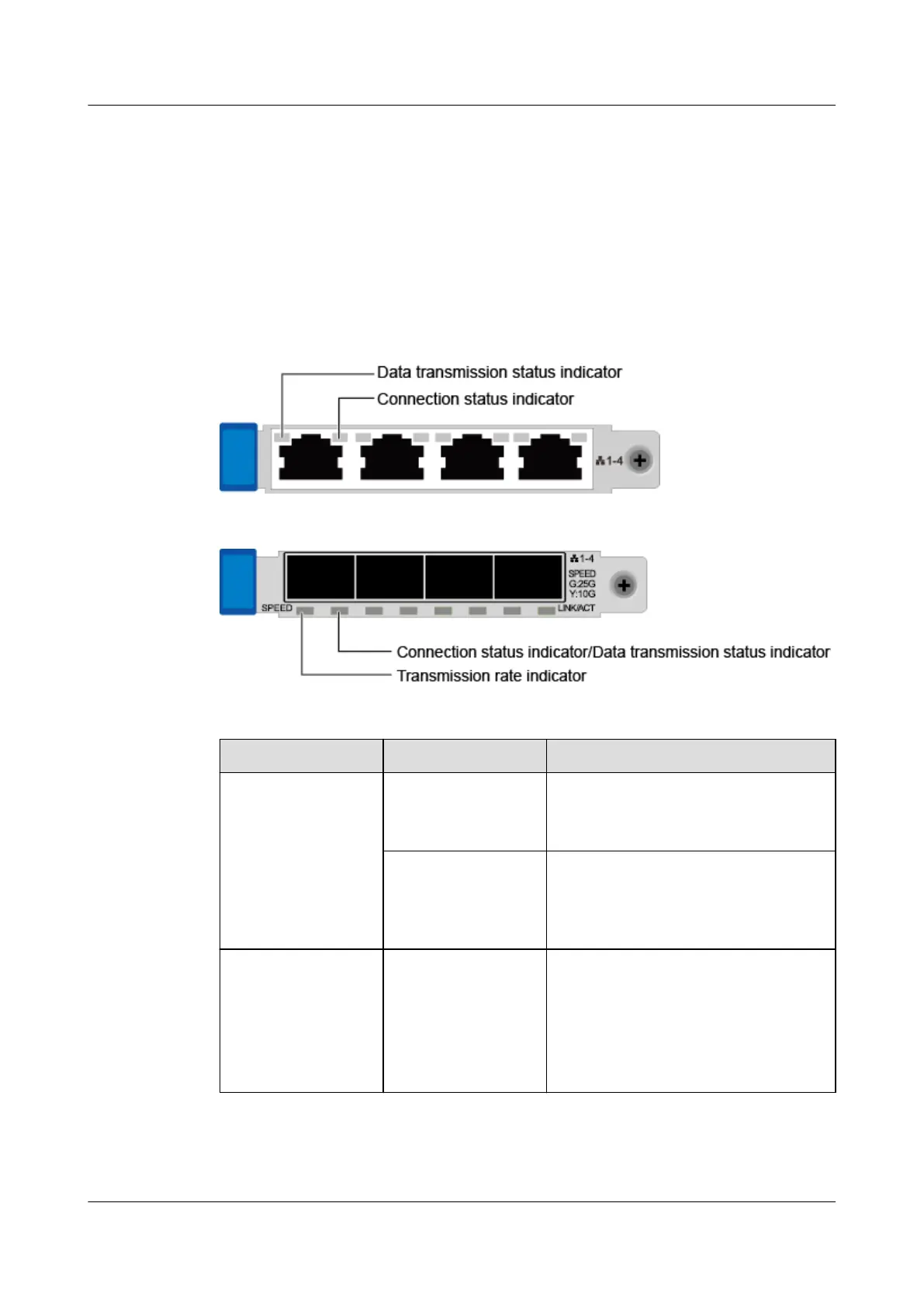

Figure 2-12 TM210 with four GE electrical ports
Figure 2-13 TM280 with four 25GE optical ports
Table 2-6 FlexIO card indicators
NIC Type
Indicator State Description
FlexIO card with
four GE electrical
ports
Data transmission
status indicator
● Blinking yellow: Data is being
transmitted.
● O: No data is being transmitted.
Connection status
indicator
● Steady green: The network port
is properly connected.
● O: The network port is not
connected.
FlexIO card with
four 25GE optical
ports
Transmission rate
indicator
● Steady green: The data
transmission rate is 25 Gbit/s.
● Steady yellow: The data
transmission rate is 10 Gbit/s.
● O: The network port is not
connected.
