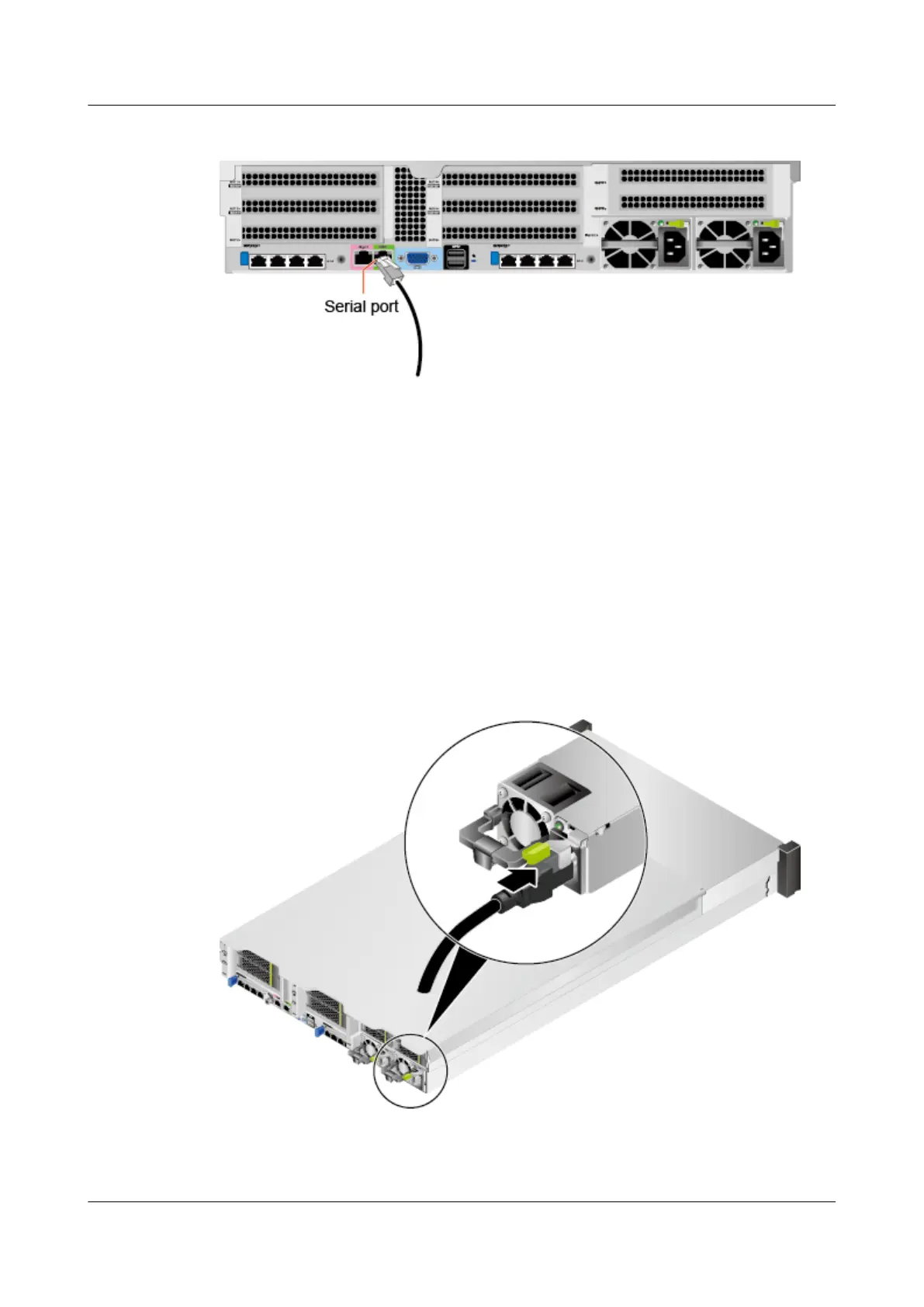

Figure 5-22 Connecting a serial cable
----End
5.8.7 Connecting Power Cables
5.8.7.1 Connecting the AC PSU Cable
Power cables are used only for dedicated servers. Do not use them for other
devices.
Step 1 Wear an ESD wrist strap. For details, see 5.3 ESD Protection.
Step 2 Connect the power cable to the PSU. See Figure 5-23.
Figure 5-23 Connecting a power cable
Step 3 Secure the power cable using a velcro strap. See Figure 5-24.
TaiShan 200 Server
User Guide (Model 2280) 5 Install and Congure
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 63
