Table 2-10 Description of SAS/SATA drive indicators
Drive Activity
Indicator (Green
Indicator)
Drive Fault
Indicator (Yellow
Indicator)
Description
Steady on O The drive is in position.
Blinking at 4 Hz O Data is being read or written normally,
or data on the primary drive is being
rebuilt.
Steady on Blinking at 1 Hz The drive is being located by the RAID
controller card.
Blinking at 1 Hz Blinking at 1 Hz The data on the secondary drive is
being rebuilt.
O Steady on A member drive in the RAID array is
removed.
Steady on Steady on A member drive in the RAID array is
faulty.
2.6.3 NVMe SSD Indicators
Figure 2-20 shows the NVMe SSD indicators.

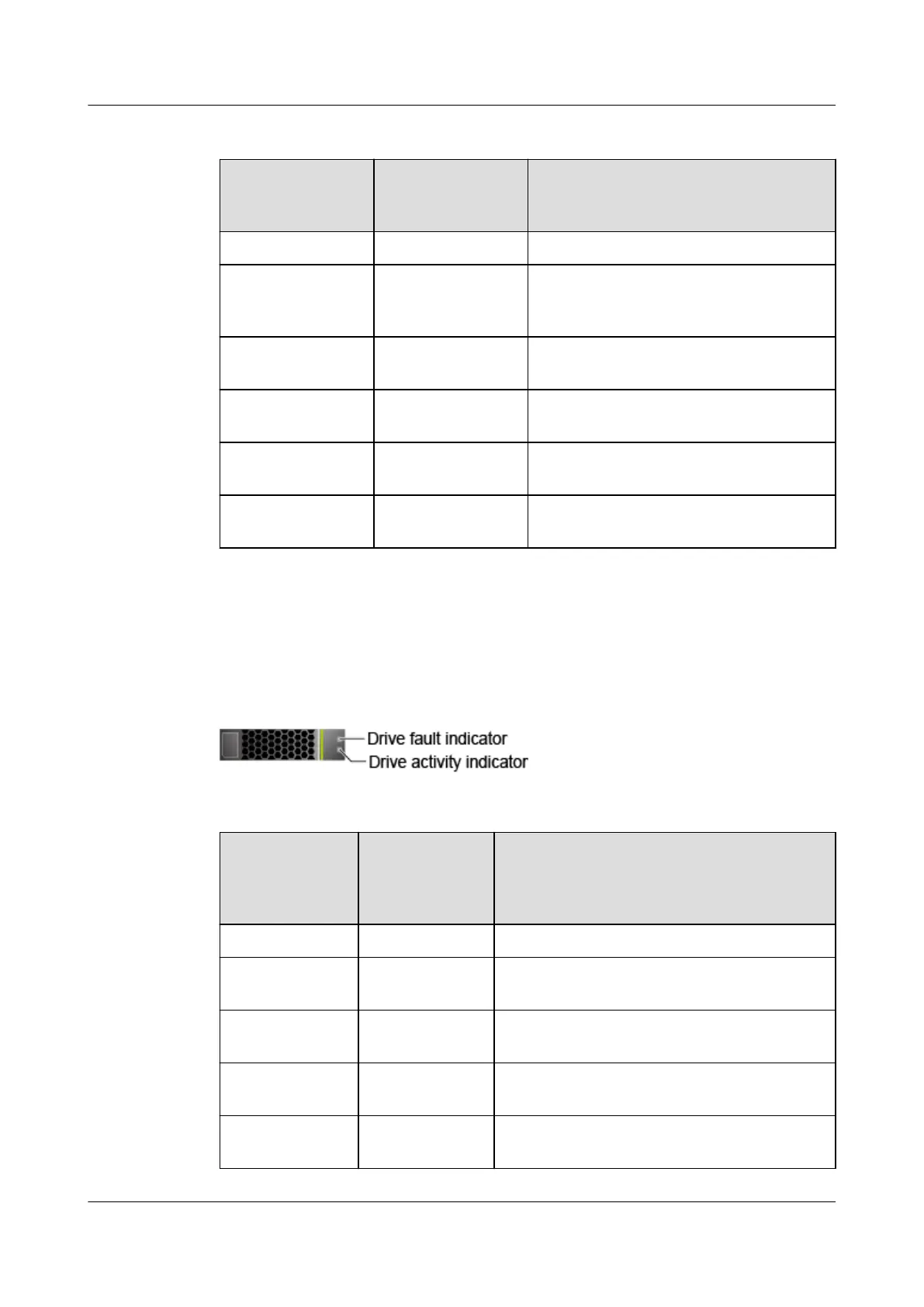

Figure 2-20 NVMe SSD indicators
Table 2-11 NVMe SSD indicators
Drive Activity
Indicator
(Green
Indicator)
Drive Fault
Indicator
(Yellow
Indicator)
State Description
O O The NVMe SSD cannot be detected.
Steady green O The NVMe SSD is detected and working
properly.
Blinking green
(2 Hz)
O Data is being read from or written to the
NVMe SSD.
O Blinking yellow
(2 Hz)
The NVMe SSD is being located or hot-
swapped.
O Blinking yellow
at 0.5 Hz
The NVMe SSD completes the hot removal
process and is removable.
