Huawei TaiShan 200 Series - 2.7 Riser Cards and PCIe Slots

Drive Activity
Indicator
(Green
Indicator)
Drive Fault
Indicator
(Yellow
Indicator)
State Description
Steady green or
o
Steady yellow The NVMe SSD is faulty.
2.7 Riser Cards and PCIe Slots
Figure 2-21, Figure 2-22, Figure 2-23, Figure 2-24, and Figure 2-25 show riser
cards supported by I/O modules 1 and 2 in a 2280.
● The riser card shown in Figure 2-21 can be installed in I/O module 1 or 2. It
provides PCIe slots 1 to 3 when installed in I/O module 1 and PCIe slots 4 to 6
when installed in I/O module 2.

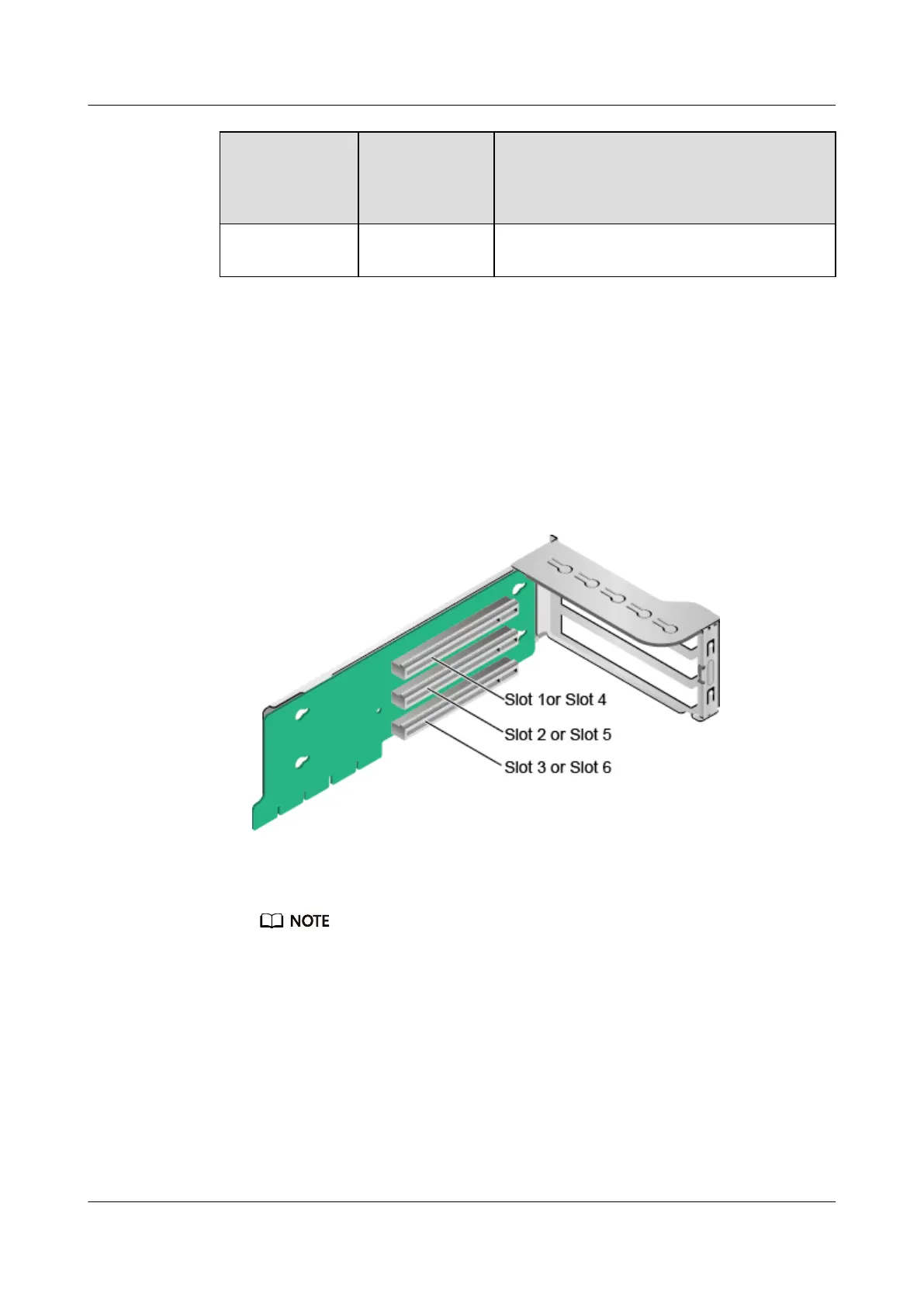

Figure 2-21 Riser card 1 (three x8 slots)
● The riser card shown in Figure 2-22 supports full-height full-length dual-
width GPUs. It provides PCIe slots 2 and 3 when installed in I/O module 1 and
PCIe slots 5 and 6 when installed in I/O module 2.
● The card must be used together with the power cables delivered with the server.
Do not use the power cables of other servers.
● Only slots 2 and 5 support full-height full-length dual-width GPUs.
