UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
3 Installation
Issue 02 (2017-02-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
117
This document uses the number of oblique lines to indicate the number of power cables of the same
type.

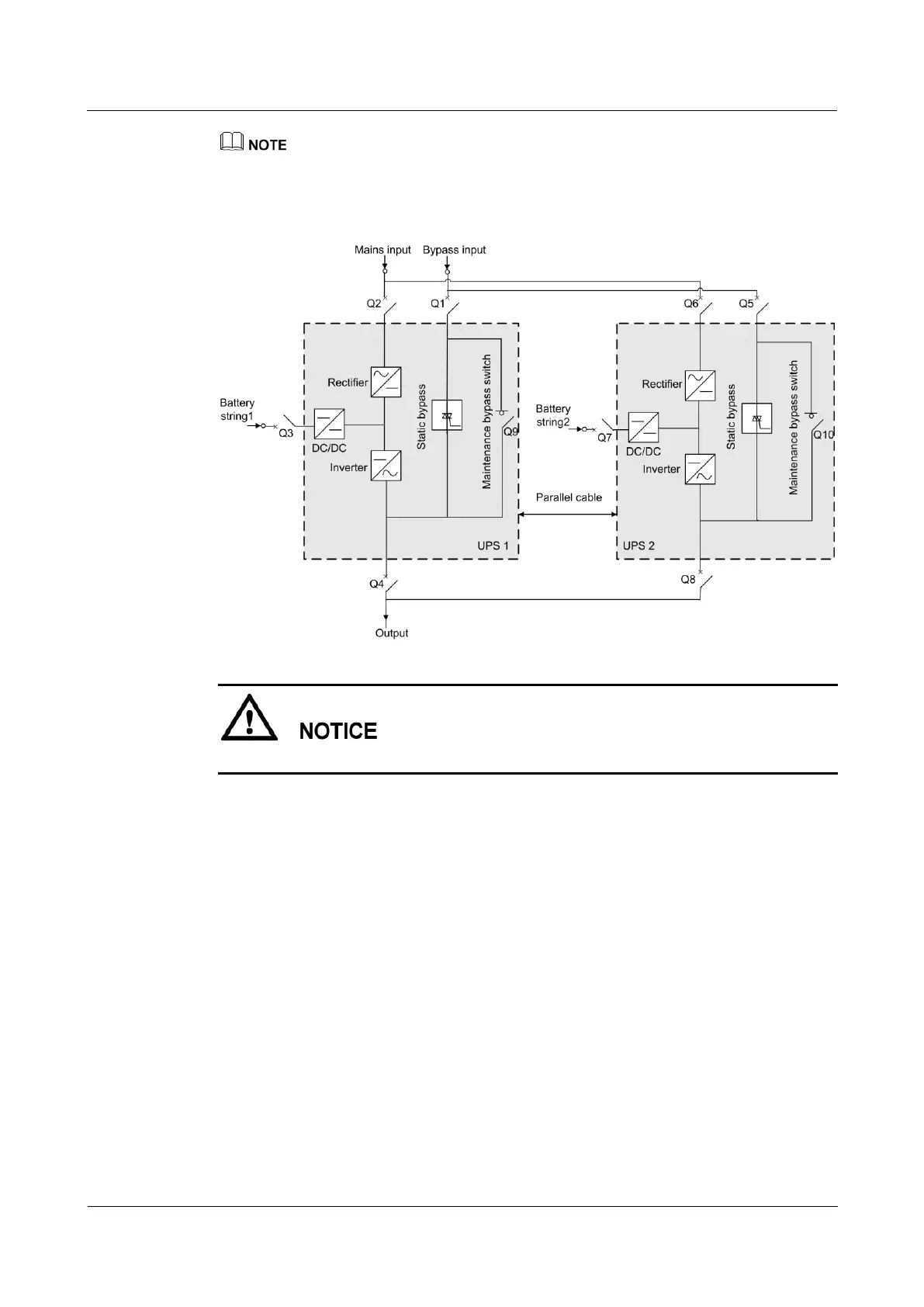

Figure 3-82 Conceptual diagram of a 1+1 parallel system
Connect power cables according to port silk screen.
