Huawei UPS5000-E-300K-SMT User Manual

UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
2 Overview
Issue 02 (2017-02-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16

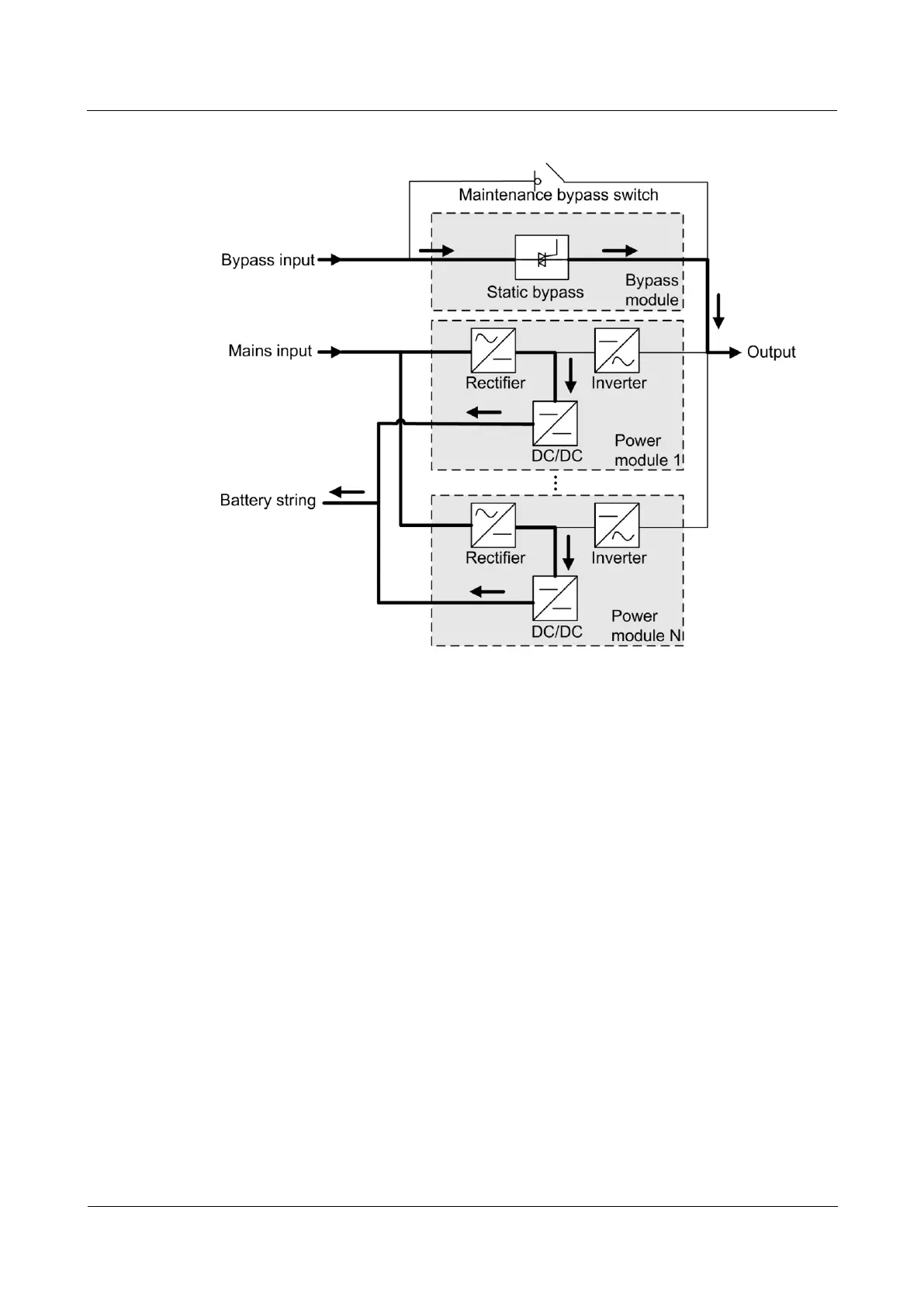

Figure 2-4 UPS conceptual diagram in bypass mode
2.2.2.3 Battery Mode
If the AC input voltage is not normal, the UPS transfers to battery mode to obtain power from
batteries. The inverter then converts the power into AC outputs. Figure 2-5 shows a
conceptual diagram of the UPS working in battery mode.

Huawei UPS5000-E-300K-SMT Specifications

General

Brand	Huawei
Model	UPS5000-E-300K-SMT
Category	Control Unit
Language	English
