UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

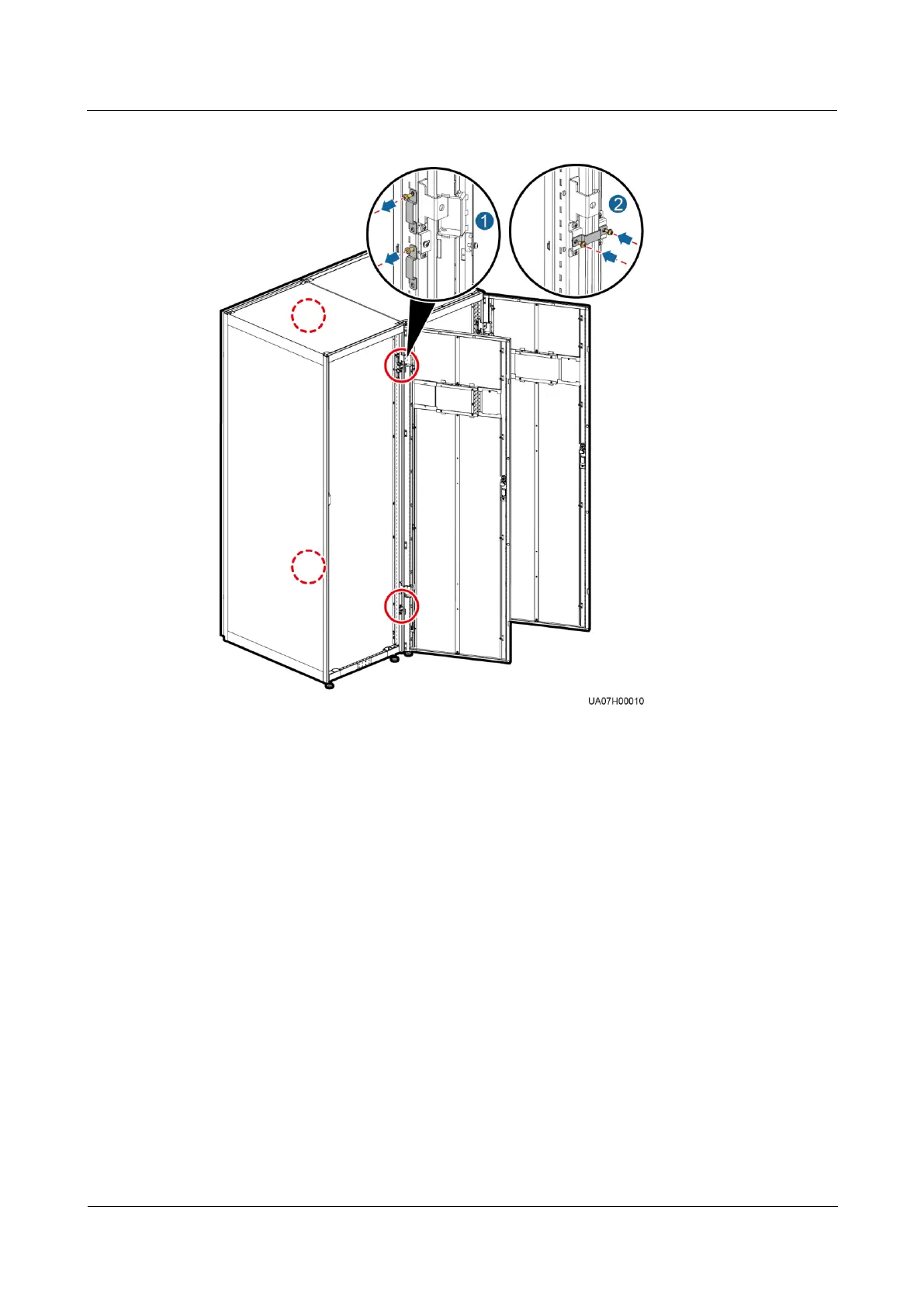

Figure 3-81 Installing connecting kits (UPS5000-E-200K-FM)
----End
3.3.2 Connecting Power Cables
Context
Cable connection for the UPS5000-E-200K-SM is used as an example. The parallel power
cables for different UPS models can be connected in a similar way.
Procedure
Step 1 Ground each UPS in a parallel system separately, and connect power cables and battery cables
according 3.2 Installing a Single UPS.
Step 2 Based on the site configurations, select a parallel connection method to connect cables for the
parallel system.
Figure 3-82 shows a typical conceptual diagram for a 1+1 parallel system, and Figure 3-83
shows the cable connections for this system.
