Humminbird HELIX 7 SERIES User Manual

Dual Beam Ice Transducer
(with optional-purchase XI 9 20 Ice Transducer)

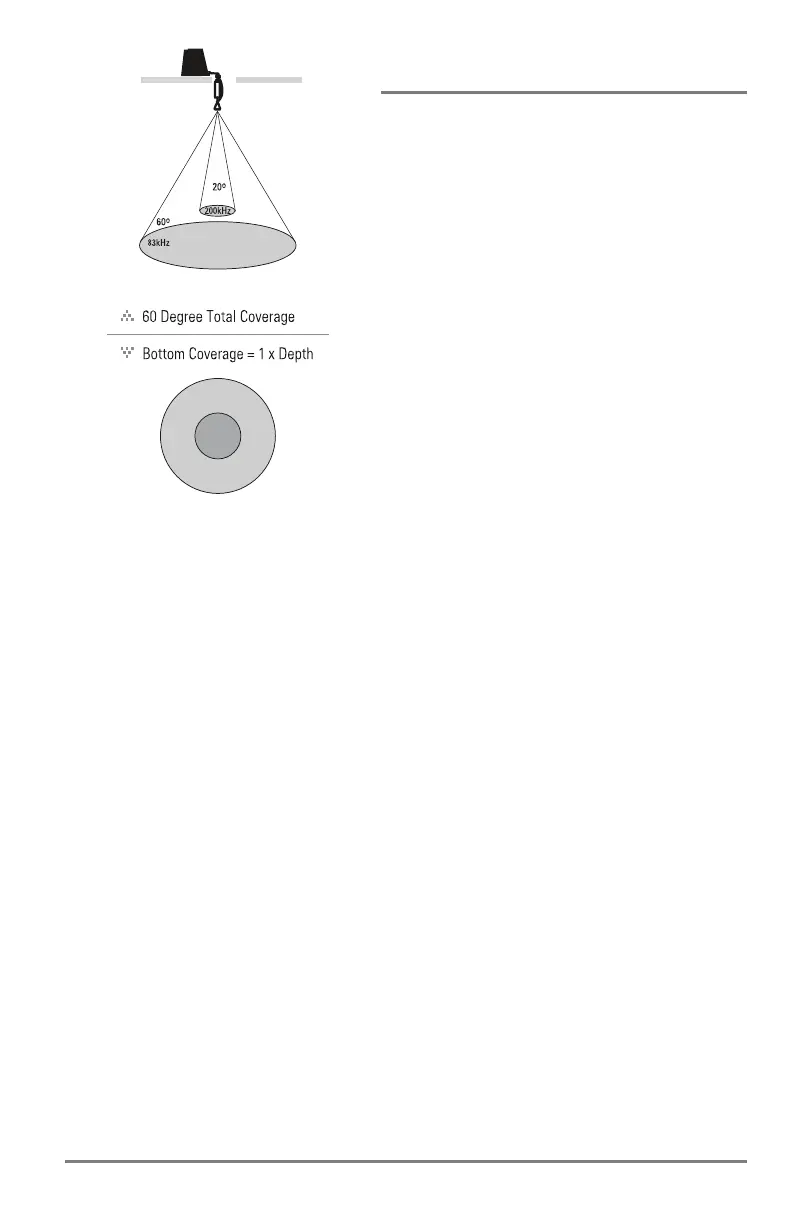

The XI 9 20 Ice Transducer provides selectable
dual-frequency sonar with a wide area of coverage.
Selectable dual-frequency gives you the option of
two beams, and both beams will cover the bottom
and provide high definition. The 20° center beam
provides the highest definition, while the 60° beam
provides wider coverage. Depth capability is
affected by such factors as bottom hardness and
water conditions. Whether fishing in shallow or
very deep water, selectable dual-frequency is ideal
for a variety of conditions.
NOTE: Contact Humminbird Customer Service to
determine which accessory tr ansducer s ar e compatible
with your control head, or visit our Web site at
humminbird.com.
5
How Sonar Works

Humminbird HELIX 7 SERIES Specifications

General

Display Pixel Matrix	800H x 480V
GPS Chartplotting	Yes
Sonar	Yes
Waterproof Rating	IPX7
Operating Temperature	-15°C to 55°C
Display Size	7 inches
Display Resolution	800 x 480 pixels
Operating Frequency	200 kHz / 455 kHz
Target Separation	2.5 inches
Depth Capability	1500 feet
Card Slot	microSD
Sonar Type	CHIRP
Max Depth	1500 feet
Frequency	200 kHz / 455 kHz
