145

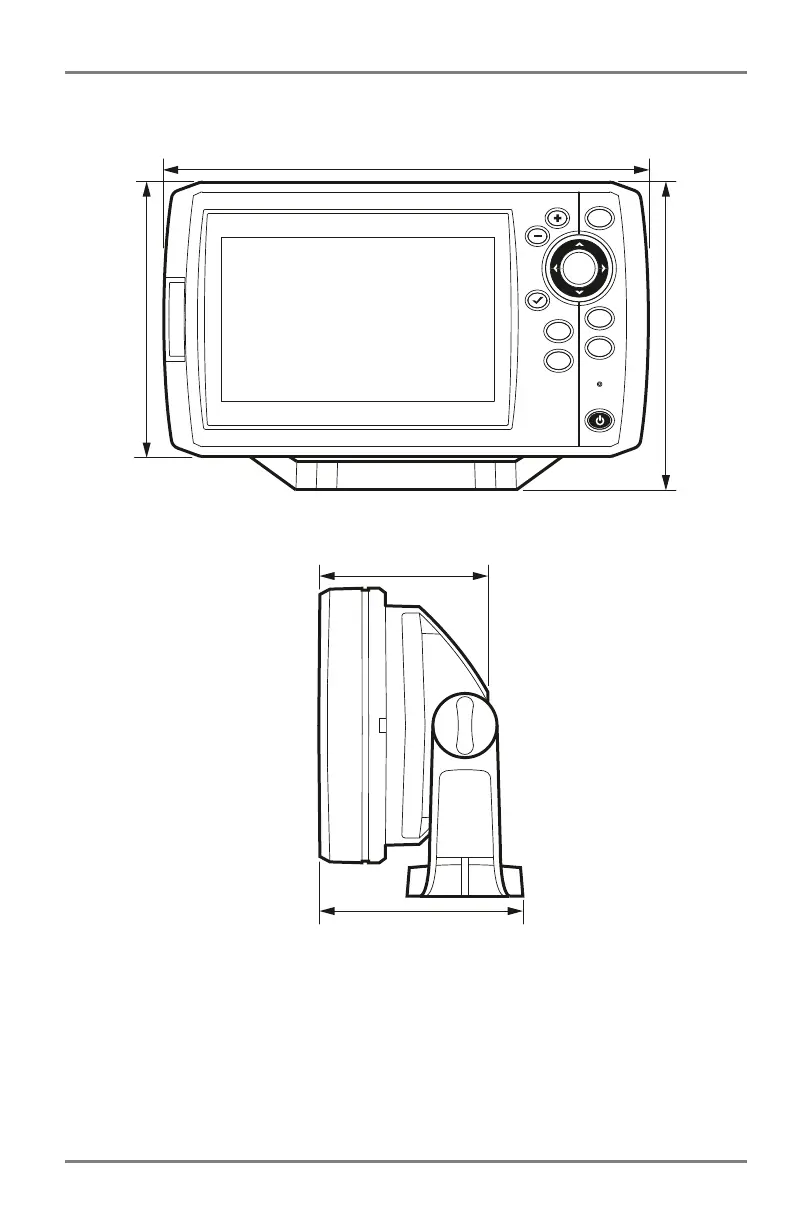

Control Head Measurements
HELIX 5 Control Head Measurements
2.90 in (73.66 mm)
3.30 in (83.82 mm)
VIEW
MENU
EXIT
MARK
7.55 in (191.77 mm)
4.28 in
(108.71 mm)
4.64 in
(117.86 mm)
GOTO
MOB
Gimbal Mount (HELIX 5)

Table of Contents

Other manuals for Humminbird HELIX 7 SERIES

Preview: Installation Guide
Installation Guide4 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Humminbird HELIX 7 SERIES and is the answer not in the manual?

Humminbird HELIX 7 SERIES Specifications

General IconGeneral
Display Pixel Matrix800H x 480V
GPS ChartplottingYes
SonarYes
Waterproof RatingIPX7
Operating Temperature-15°C to 55°C
Display Size7 inches
Display Resolution800 x 480 pixels
Operating Frequency200 kHz / 455 kHz
Target Separation2.5 inches
Depth Capability1500 feet
Card SlotmicroSD
Sonar TypeCHIRP
Max Depth1500 feet
Frequency200 kHz / 455 kHz
