Humminbird HELIX 7 SERIES User Manual

71

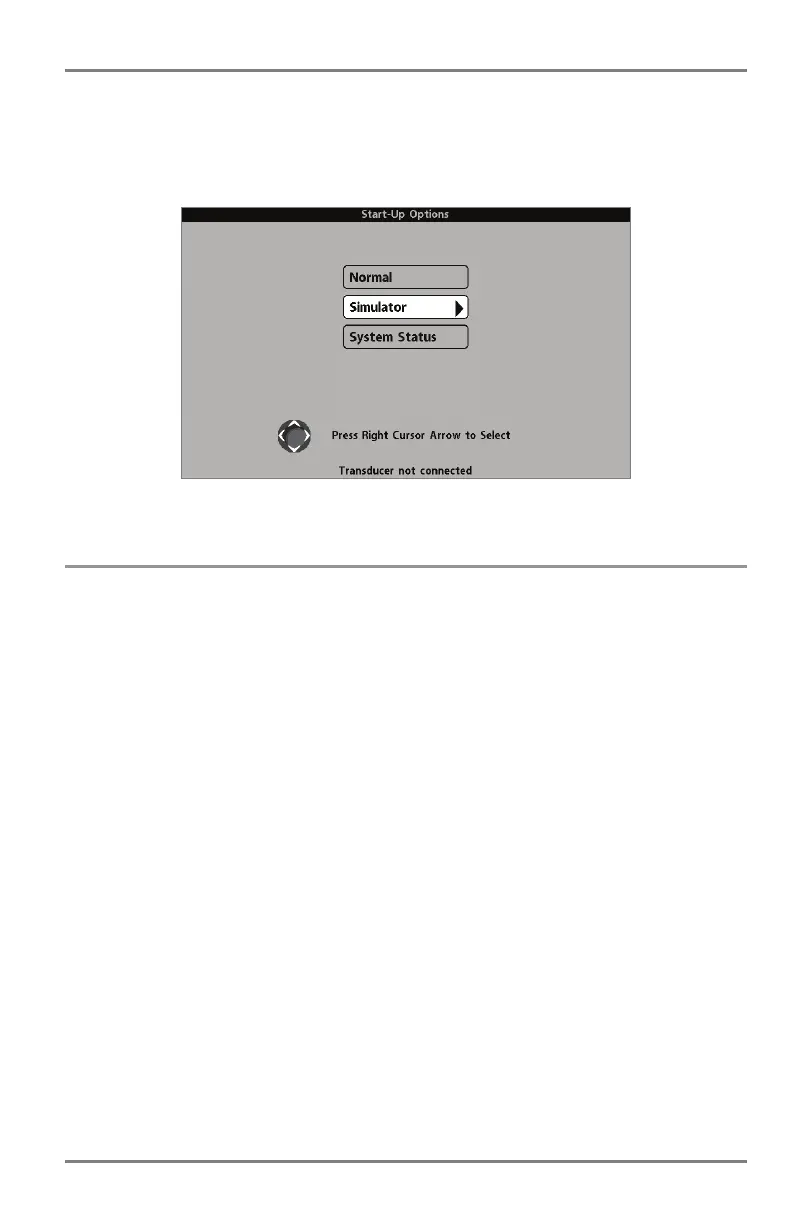

Start-Up Options Menu
Start-Up Options Menu
Press the MENU key during the power on sequence to view the Start-Up Options Menu, and
select one of the modes described on the following pages. Also, see Power On for more
information.
Normal
Use Normal for on-the-water operation. If your model includes sonar, a transducer must be
connected to the control head to use Normal mode.
To exit Normal operation, power off your control head.
Start-Up Options Menu

Humminbird HELIX 7 SERIES Specifications

General

Display Pixel Matrix	800H x 480V
GPS Chartplotting	Yes
Sonar	Yes
Waterproof Rating	IPX7
Operating Temperature	-15°C to 55°C
Display Size	7 inches
Display Resolution	800 x 480 pixels
Operating Frequency	200 kHz / 455 kHz
Target Separation	2.5 inches
Depth Capability	1500 feet
Card Slot	microSD
Sonar Type	CHIRP
Max Depth	1500 feet
Frequency	200 kHz / 455 kHz
