Humminbird HELIX 7 SERIES User Manual

Views Menu Tab
140

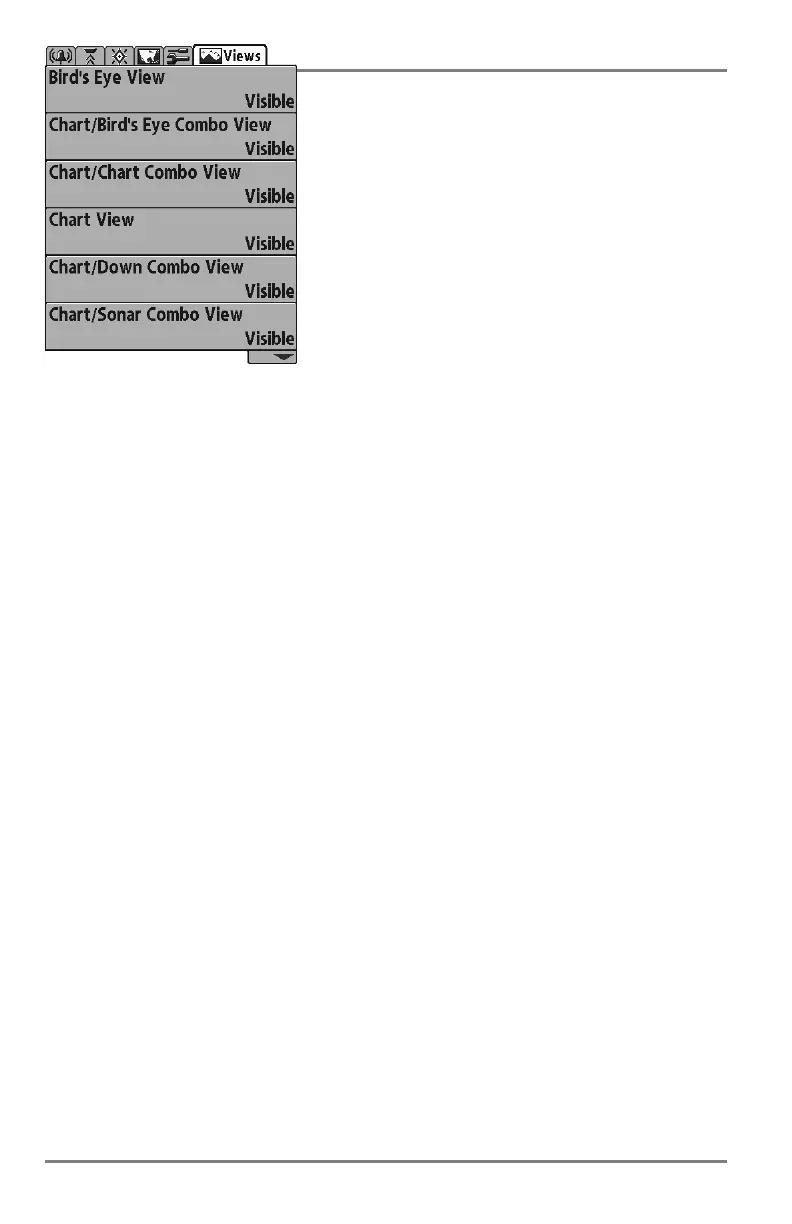

Views Menu Tab
From any view, press the MENU key twice to access the
tabbed Main Menu, then press the RIGHT Cursor key until
the Views tab is selected.
This menu tab allows you to set the available views to
hidden or visible in the view rotation. The view will be
remov ed from the view rotation if it is set to Hidden and will
be displayed in the view rotation if it is set to Visible.
NOTE: See Views for more information.
—The down arrow indicates more menu options.
Press the DOWN Cursor key to scroll through the full menu list.
HELIXDIGPSViewsMenu

Humminbird HELIX 7 SERIES Specifications

General

Display Pixel Matrix	800H x 480V
GPS Chartplotting	Yes
Sonar	Yes
Waterproof Rating	IPX7
Operating Temperature	-15°C to 55°C
Display Size	7 inches
Display Resolution	800 x 480 pixels
Operating Frequency	200 kHz / 455 kHz
Target Separation	2.5 inches
Depth Capability	1500 feet
Card Slot	microSD
Sonar Type	CHIRP
Max Depth	1500 feet
Frequency	200 kHz / 455 kHz
