Humminbird HELIX 7 SERIES User Manual

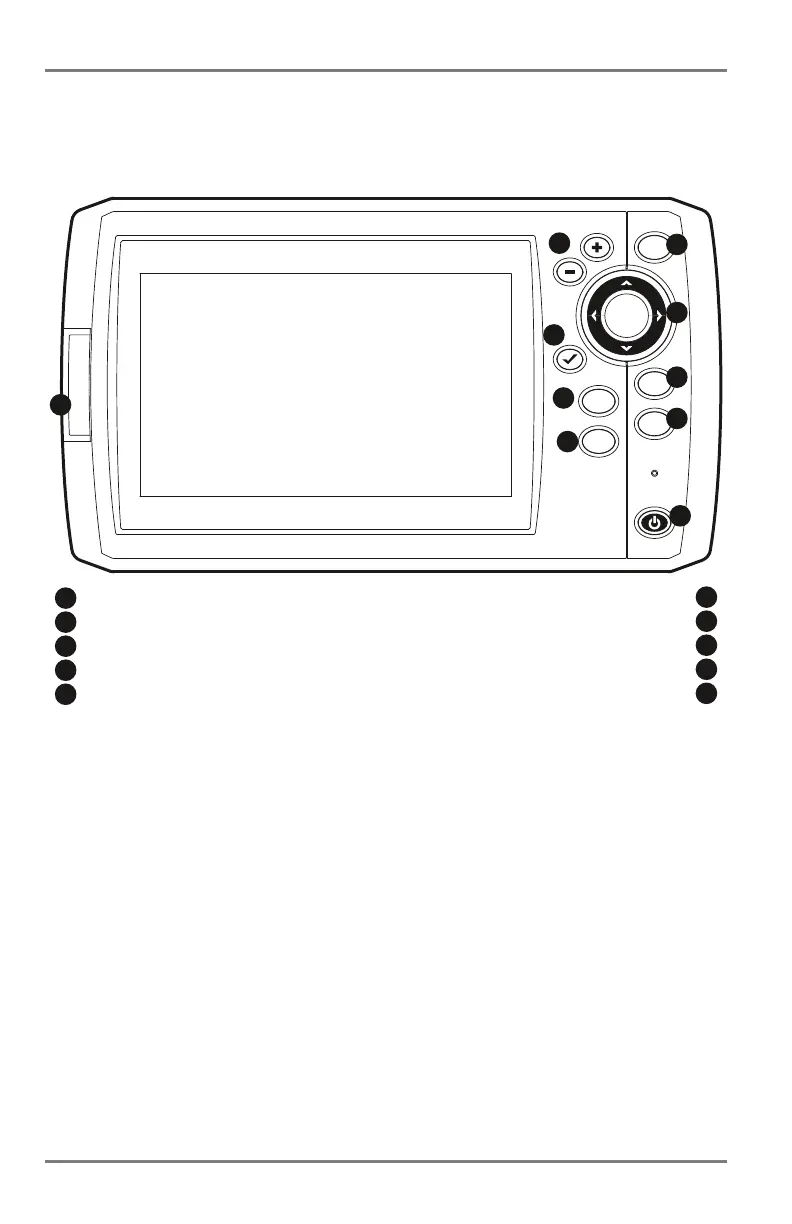

What’s on the Control Head
Your HELIX Series user interface is easy to use. A combination of keys, different views, and
situation-specific, customizable menus allows you to control what you see on the color display.
Refer to the following illustration and see Ke y Functions, Views, and T he Menu System for more
information.
VIEW
MENU
EXIT
MARK
GOTO
MOB
microSD Card Slot
ZOOM (+/-) Keys
VIEW Key
MENU Key
MARK Key
EXIT Key
1
2
3
6
7
8
4-WAY Cursor Control Key (LEFT, RIGHT, UP, or DOWN) GOTO/MOB Key
4
9
CHECK/INFO Key POWER/LIGHT Key
5
10
1
2
4
5
7
8
3
6
9
10
What’s on the Control Head
8

Humminbird HELIX 7 SERIES Specifications

General

Display Pixel Matrix	800H x 480V
GPS Chartplotting	Yes
Sonar	Yes
Waterproof Rating	IPX7
Operating Temperature	-15°C to 55°C
Display Size	7 inches
Display Resolution	800 x 480 pixels
Operating Frequency	200 kHz / 455 kHz
Target Separation	2.5 inches
Depth Capability	1500 feet
Card Slot	microSD
Sonar Type	CHIRP
Max Depth	1500 feet
Frequency	200 kHz / 455 kHz
