Humminbird HELIX 7 SERIES User Manual

Sonar Menu Tab
108
Sonar Menu Tab
(HELIX SONAR GPS, HELIX DI GPS, HELIX XD GPS only)
Press the MENU key twice to access the Main Menu and
then press the RIGHT Cursor key until the Sonar tab is
selected.
NO TE: Menu options can be expanded or simplified by setting the
User Mode to Advanced or Normal. See Main Menu: User Mode
for details.
NO TE: Menu options are determined by your Humminbird model.
See the following pages for full menu descriptions.
HELIX DI GPS

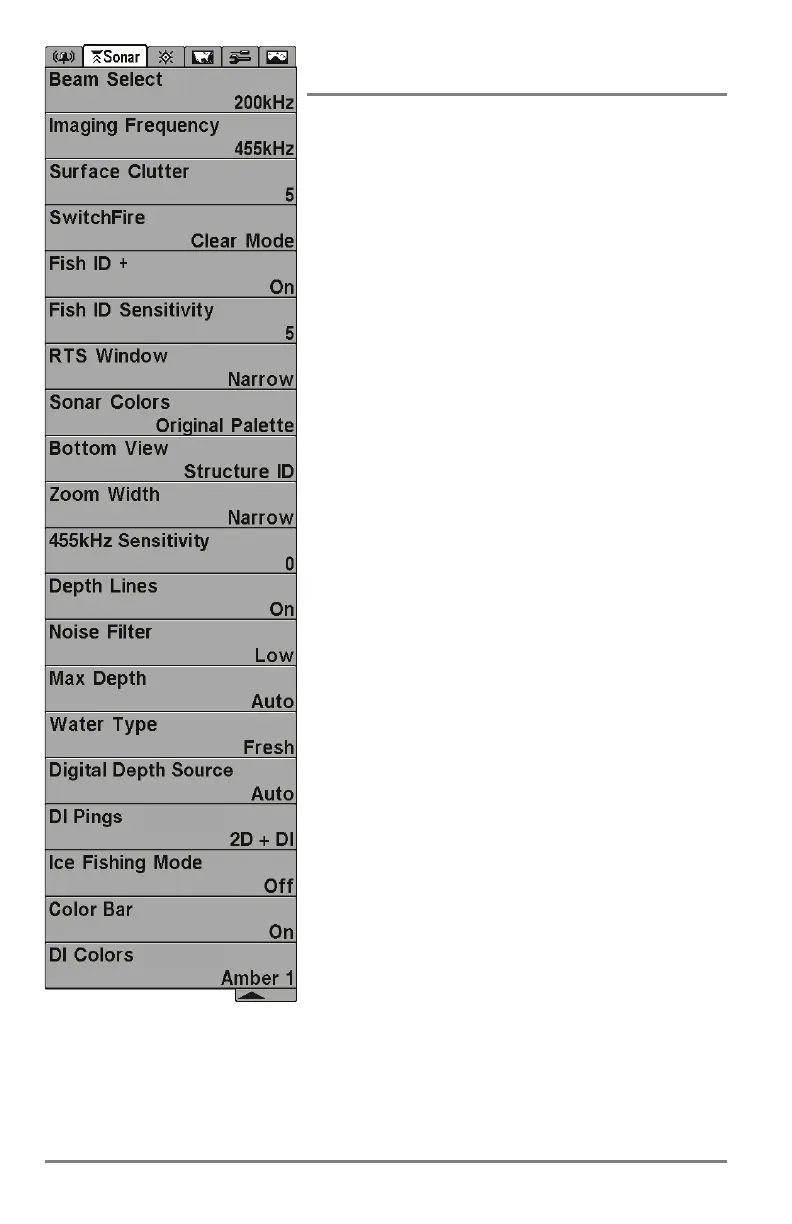

Sonar Menu (Advanced)

Humminbird HELIX 7 SERIES Specifications

General

Display Pixel Matrix	800H x 480V
GPS Chartplotting	Yes
Sonar	Yes
Waterproof Rating	IPX7
Operating Temperature	-15°C to 55°C
Display Size	7 inches
Display Resolution	800 x 480 pixels
Operating Frequency	200 kHz / 455 kHz
Target Separation	2.5 inches
Depth Capability	1500 feet
Card Slot	microSD
Sonar Type	CHIRP
Max Depth	1500 feet
Frequency	200 kHz / 455 kHz
