W
hen you turn on/off pinging or change the transducer settings, all control heads sharing the transducer are affected.
Select Beams
The instructions in this section are only applicable if the selected sonar source includes more than one beam.
The beams selected in this menu affect all units that are sharing the sonar source. For example, if you select the blended
83/200 kHz beams for one control head, and you select the single 83 kHz beam on another control head, the control head with the
single 83 kHz selection will receive blended information.
1. Press the HOME key.
2. Select Settings.
3. Select Sonar.
4. Under the sonar source type (2D, Down Imaging, Side Imaging, etc.), select the Beam Select menu.
5. Select the beam(s) you want to use.
See the Beam Select Options tables on the following pages. To access all beams in the 2D Sonar View, but view individual
frequencies on different control heads, select Auto, 83/200 kHz, or 50/200 kHz. Then, you can select individual frequencies
from the 2D Sonar View (see Select Frequencies).

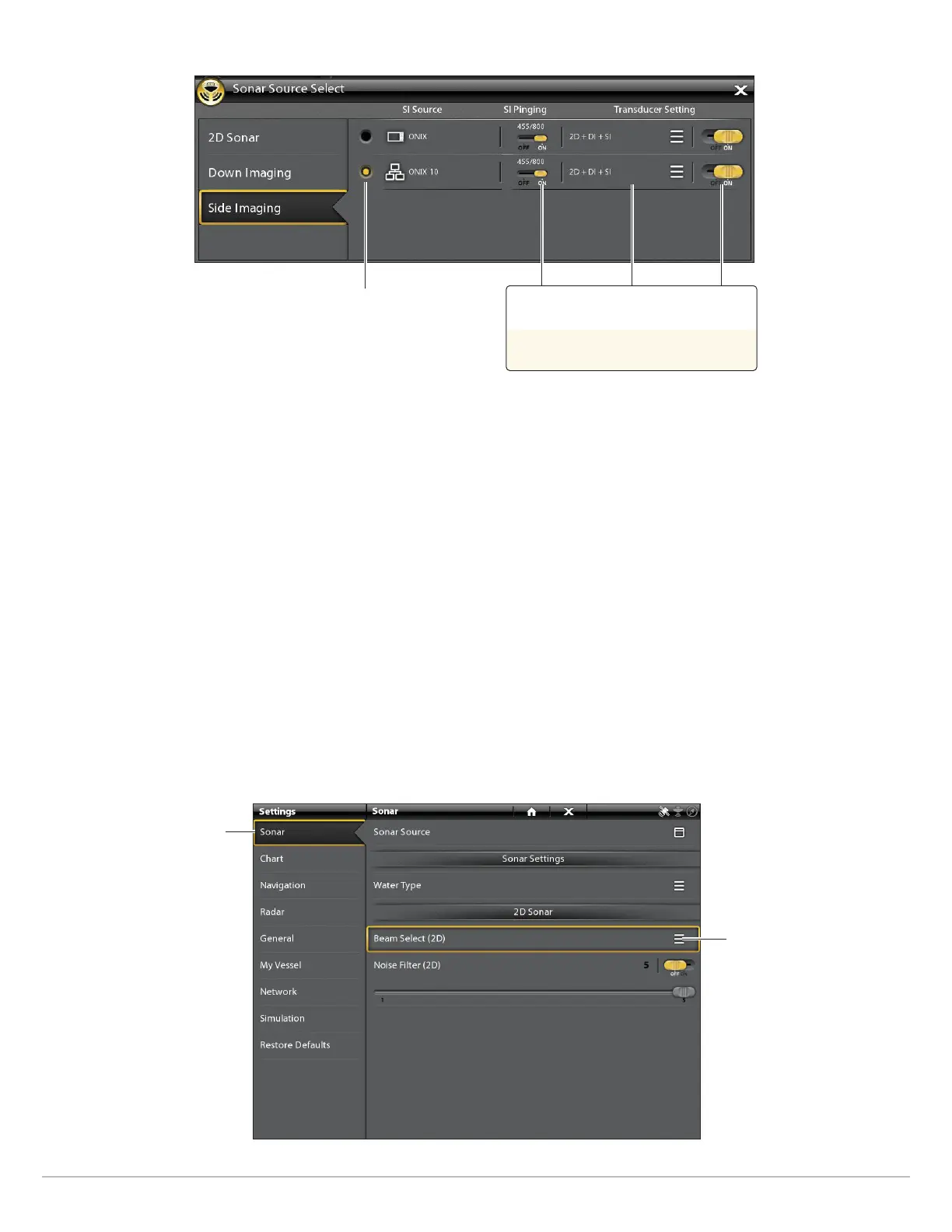

Selecting 2D Sonar Beams
sonar
Beam Select menu
for 2D Sonar
selected source transducer setup
menu
turn on/off
transducer
turn on/off
pinging
If you change settings here, it will
change the settings across the network.
Humminbird Network Setup
To Next Page
