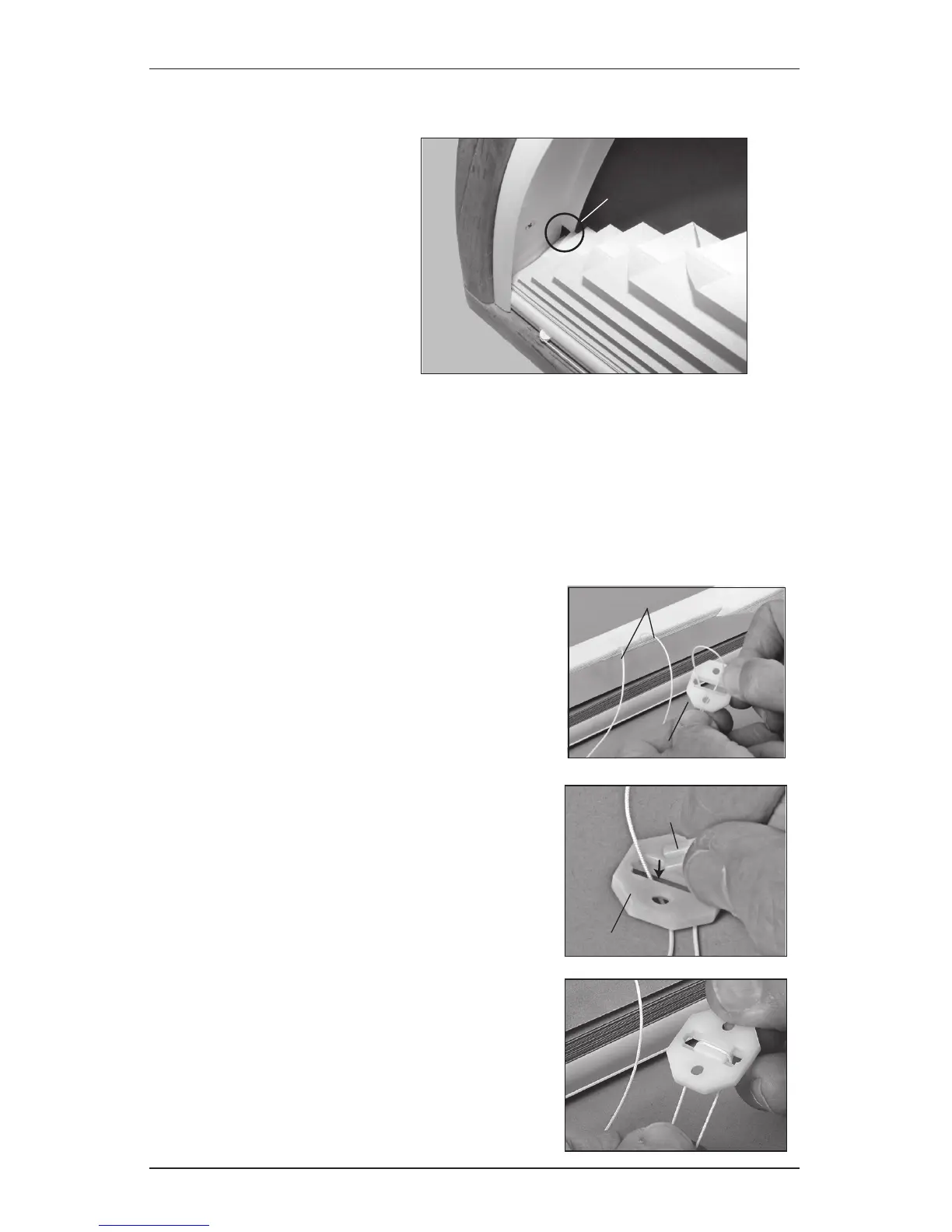

Install the Arch Trim
■ To size the trim, position it along
the entire curved surface, inside
the window frame.
■ Mark where to cut the arch trim.
With inside-mounted shades,
the ends of the trim should rest
on the bottom of the window
casement.
■ Cut the arch trim to the correct
length using a utility knife.
■ For a shade with a wider bottom rail, cut a notch into the bottom back of the arch trim to
accommodate the rail, as shown in the photo above.
■ Place the trim back into the casement and line up the trim with both ends of the bottom rail,
flush with the front of the casement.
■ Attach the arch trim, using the screws provided.
Attach the Top Cord Guide
■ Thread the cord loop at the top of the arch up through
the center of the top cord guide.
■ Put the insert into the top cord guide as shown.
■ Seat the cord into the “track” of the insert.
■ Line up the front of the guide with the front of the
casement directly above the shade so the bottom rail
and cords form a 90º angle. The guide should reach
the top casement with the cords taut.
CAUTION: Do not twist the lift lines going to the top
cord guide or the shade will not be able to close all
the way.
Notch
Cord Loop At Top Of Shade
Top Cord Guide
Top Cord Guide
Insert
INSTALLATION
7
To Next Page
